DLI Wiper - Metal Cased - U Type

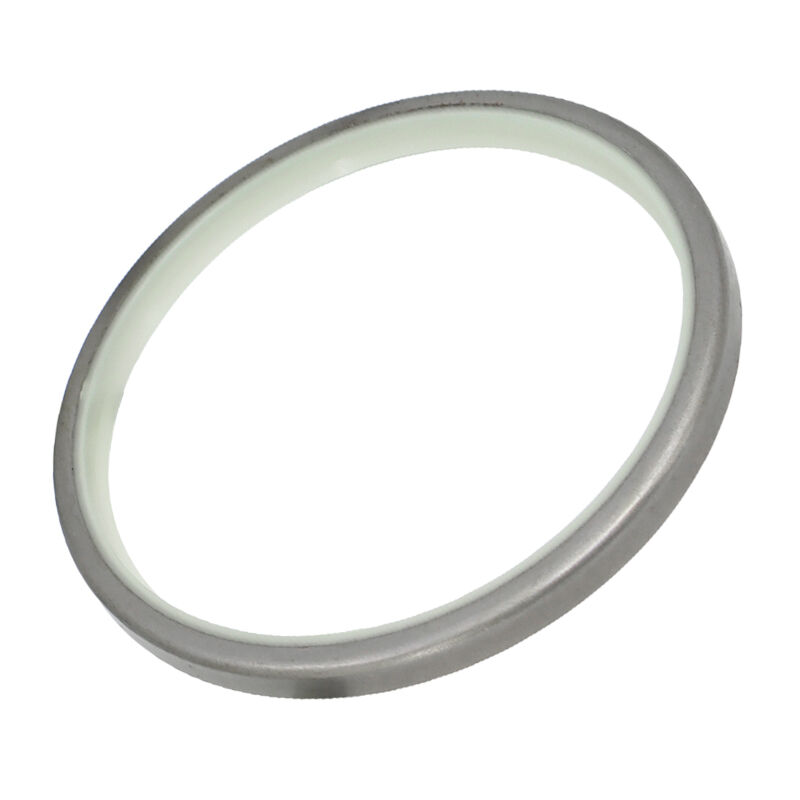

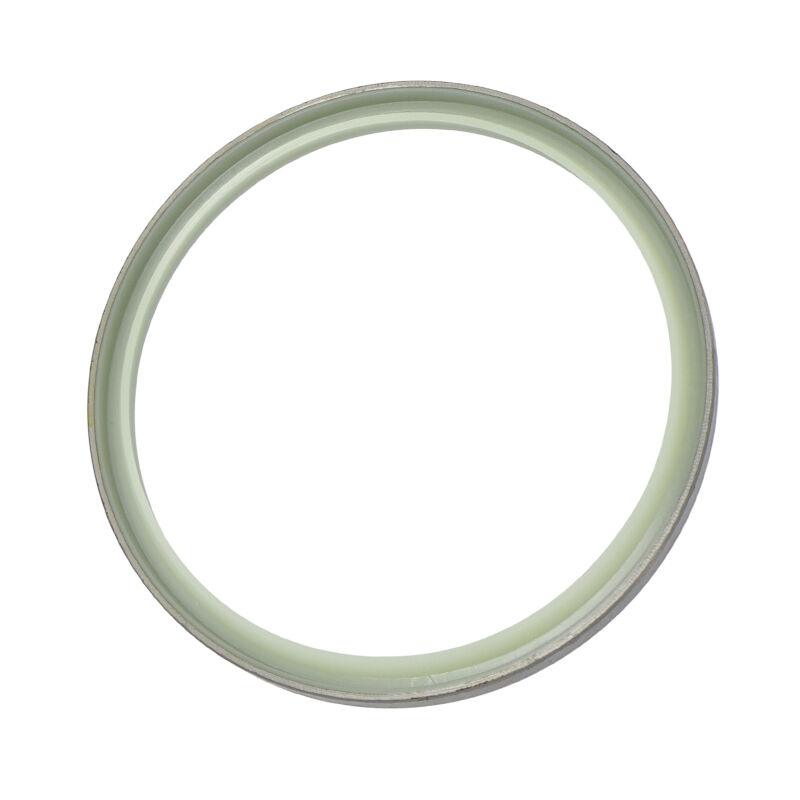

DLI is a single acting metal-cased wiper seals designed to press fit into open groove housings for wide range of applications.
Produced from thermoplastic polyurethane material in a metal case, preventing that foreign particles from outer environment penetrate in the hydraulic applications
- Description
- Technical Information
- Specifications
- Recommended Products
Description

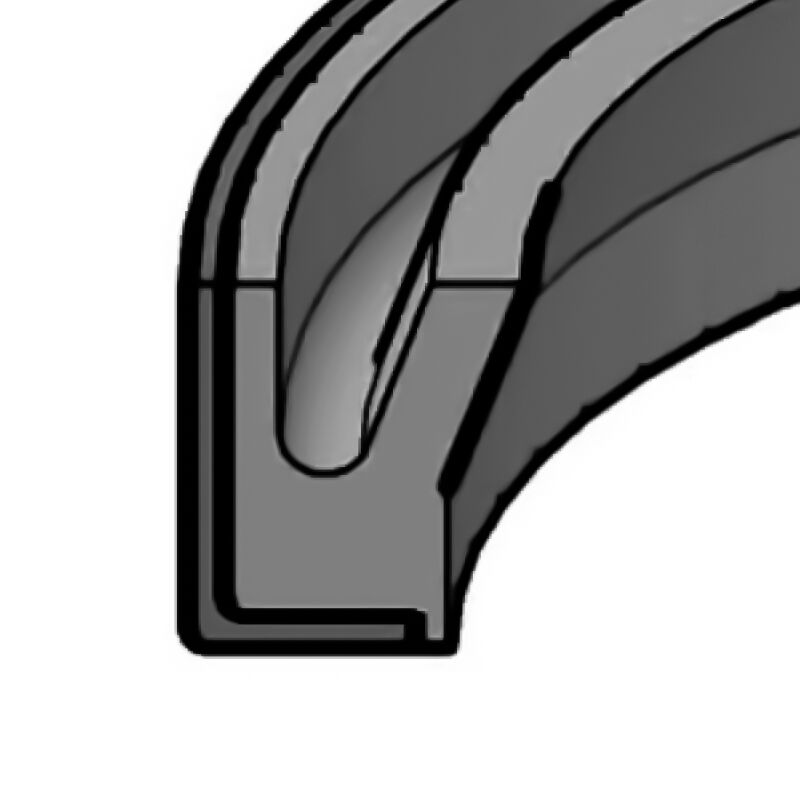

Structural Design:
The DLI Metal Clad Wiper Seal is engineered for uncompromising durability in challenging environments, where resistance to wear is a critical factor.
Constructed from urethane, this double-lip wiper seal is designed for longevity and consistent performance across various industrial applications.
The metal cladding adds to the seal’s structural integrity and extends its operational lifespan, ensuring reliable functionality over extended periods.
Summary of Advantages:
- Used in heavy conditions by the good tear and rupture properties of PU material
- Simple groove design
- Good wiping performance on the rod with double wiper design
- Can be used as pin dust seal
Typically made from polyurethane, alternative materials can be provided upon request to suit your specific needs.
Technical Information
Technical Parameters:
|
Speed |
0.5m/s |
|
Material |
PU + Metal |
|
Temperature(°C) |
-35℃~95℃ |

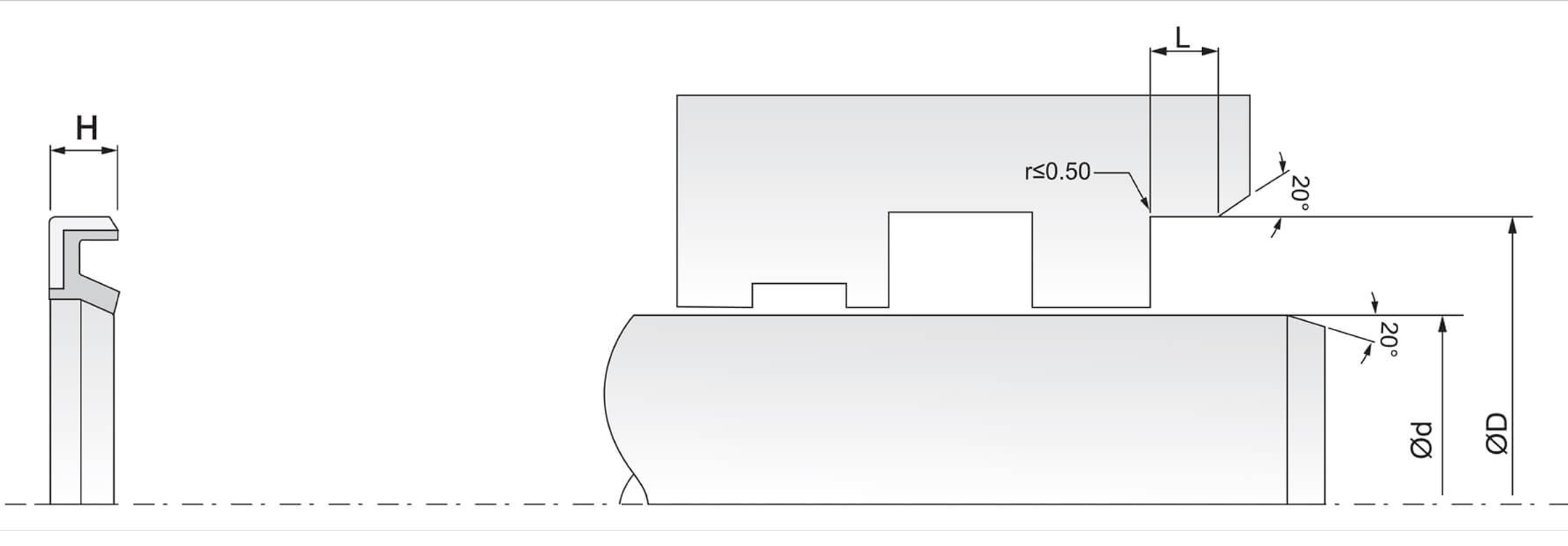

Specifications
|
Designation |
Outer Diameter |
Inner Diameter |
Housing groove width |
|
DLI-40*50*4 |
40 |
50 |
4 |
|
DLI-120*135*4 |
120 |
135 |
4 |
|
DLI-45*55*4 |
45 |
55 |
4 |
|
DLI-120*135*8 |
120 |
135 |
8 |
|
DLI-50*65*4 |
50 |
65 |
4 |
|
DLI-55*70*8 |
55 |
70 |
8 |
|
DLI-55*70*4 |
55 |
70 |
4 |
|
DLI-60*75*8 |
60 |
75 |
8 |
|
DLI-60*75*4 |
60 |
75 |
4 |
|
DLI-70*85*8 |
70 |
85 |
8 |
|
DLI-70*85*4 |
70 |
85 |
4 |
|
DLI-75*90*8 |
75 |
90 |
8 |
|
DLI-75*90*4 |
75 |
90 |
4 |
|
DLI-80*95*8 |
80 |
95 |
8 |
|
DLI-80*95*4 |
80 |
95 |
4 |
|
DLI-85*100*8 |
85 |
100 |
8 |
|
DLI-85*100*4 |
85 |
100 |
4 |
|
DLI-90*105*8 |
90 |
105 |
8 |
|
DLI-90*105*4 |
90 |
105 |
4 |
|
DLI-100*115*8 |
100 |
115 |
8 |
|
DLI-100*115*4 |
100 |
115 |
4 |
|
DLI-110*125*8 |
110 |
125 |
8 |
|
DLI-110*125*4 |
110 |
125 |
4 |
|
DLI-115*130*8 |
115 |
130 |
8 |
|
DLI-115*130*4 |
115 |
130 |
4 |
|
DLI-65*80*4 |
65 |
80 |
4 |
|
DLI-125*140*4 |
125 |
140 |
4 |
|
DLI-65*80*8 |
65 |
80 |
8 |
|
DLI-125*140*8 |
125 |
140 |
8 |
