CFW Type Oil Seal

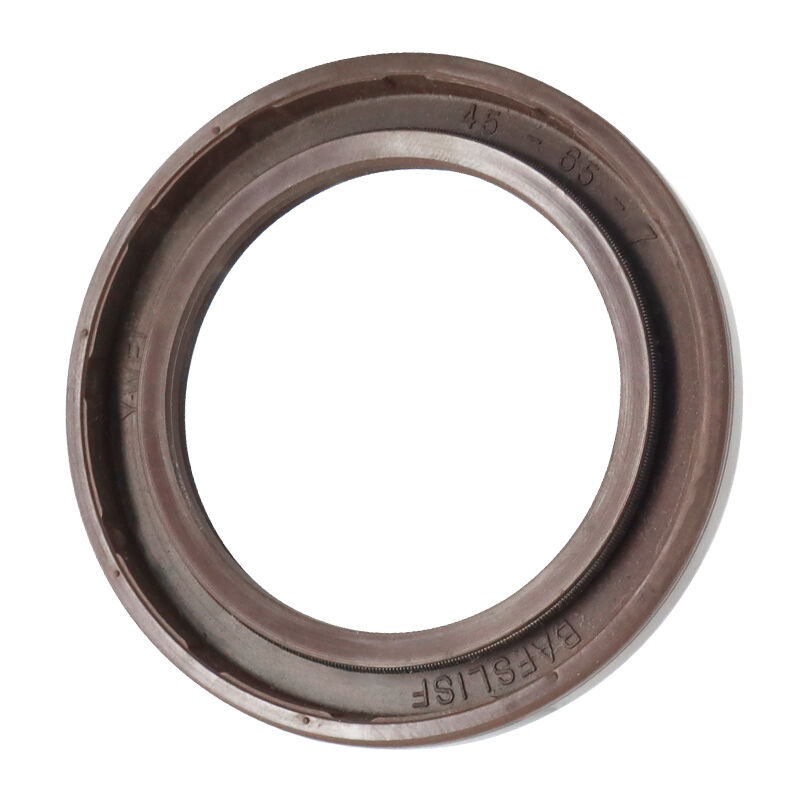

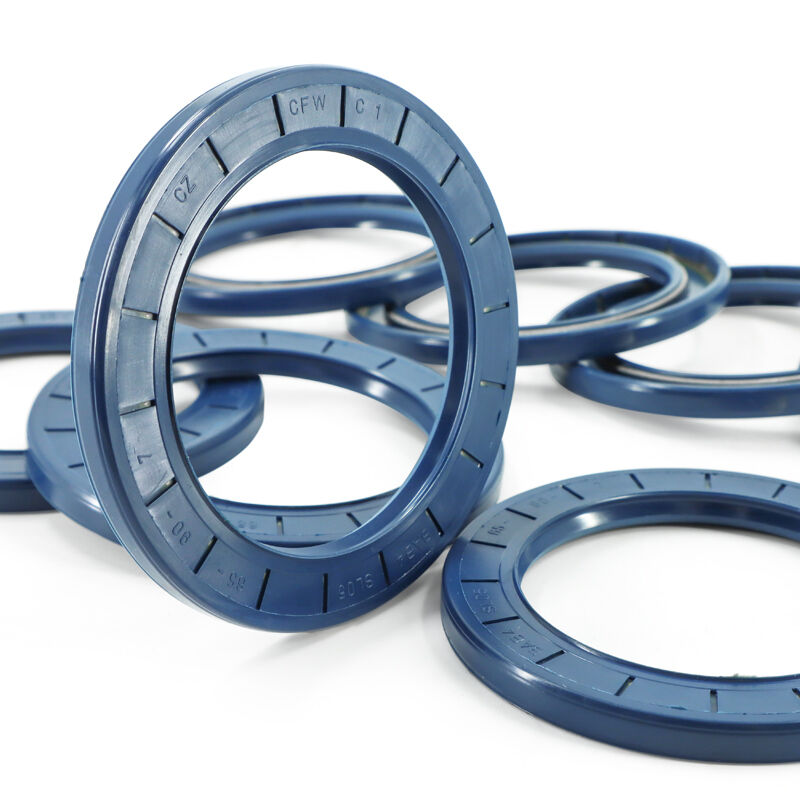

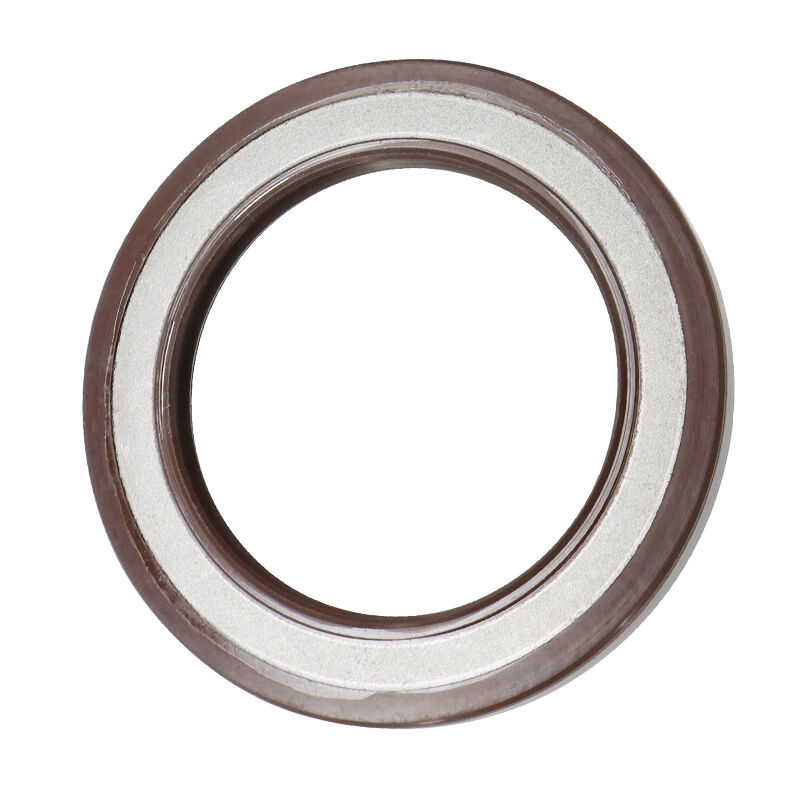

The CFW type rotary shaft seal has a metal insert encased in rubber on all but the face away from the fluid to be sealed.
It is especially useful where housing may have a greater coefficient of expansion than the metal case oil seal.
- Description
- Technical Information
- Specifications
- Recommended Products
Description
Structural Design:

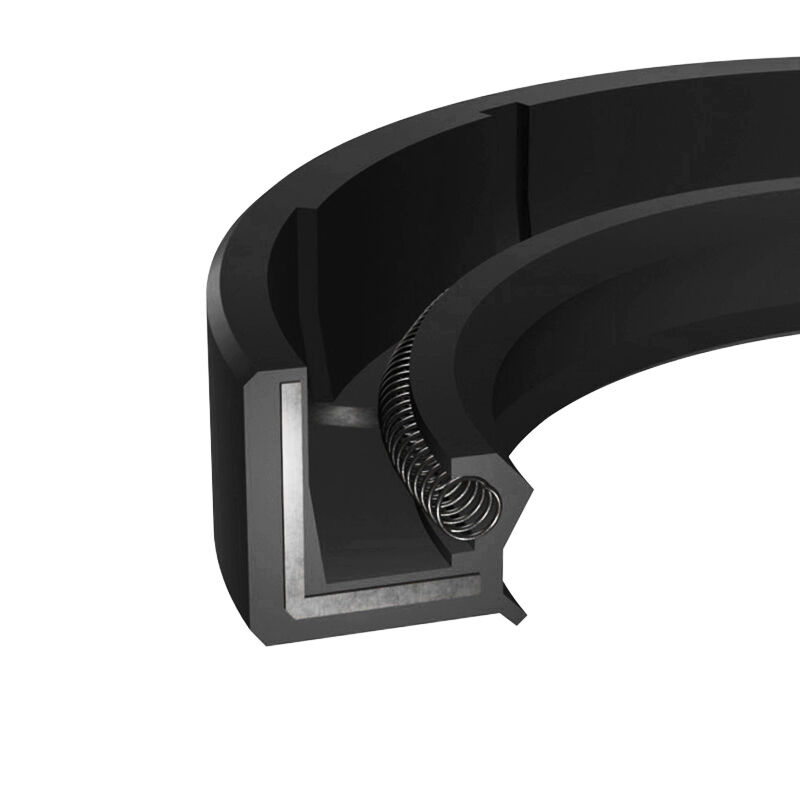

The elastic outer sheath of CFW is wrapped around a metal reinforcement ring and a spring supported sealing lip, setting a new standard for effective and reliable sealing.
Equipped with spring supported sealing lips and dust-proof lips, effectively preventing external pollution and ensuring optimal performance in harsh environments.
It performs well in a high thermal expansion shell, making it a perfect match for light metals and materials with high thermal performance.
Summary of Advantages:
- Good static sealing
- Reduced risk of fretting corrosion
- Effective protection against contaminants
- Up to 10 Bar pressure at moderate peripheral speed
Typically made from polyurethane, alternative materials can be provided upon request to suit your specific needs.
Technical Information
Technical Parameters:
|
Pressure |
10bar |
|
Material |
NBR/FKM + Metal |
|
Temperature(°C) |
-35℃~200℃ |
Specifications
|

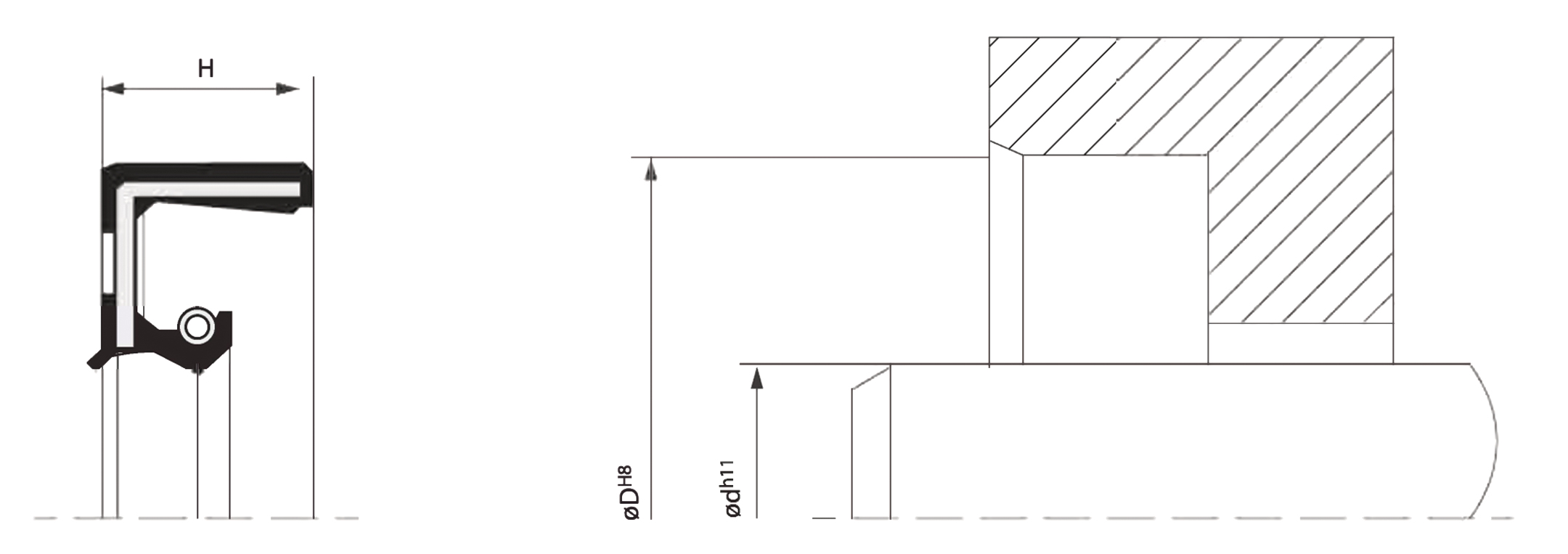

Designation |
Outer Diameter |
Inner Diameter |
Housing groove width |
|
CFW-26 |
26 |
13 |
7 |
|
CFW-30 |
30 |
18 |
6 |
|
CFW-32 |
32 |
18 |
6 |
|
CFW-33 |
33 |
25 |
6 |
|
CFW-35 |
35 |
18 |
8 |
|
CFW-36 |
36 |
22 |
7 |
|
CFW-37 |
37 |
25 |
6 |
|
CFW-38 |
38 |
25 |
7 |
|
CFW-40 |
40 |
25 |
6 |
|
CFW-42 |
42 |
25 |
6 |
|
CFW-45 |
45 |
35 |
6 |
|
CFW-47 |
47 |
32 |
6 |
|
CFW-50 |
50 |
30 |
10 |
|
CFW-52 |
52 |
35 |
7 |
|
CFW-53 |
53 |
32 |
7 |
|
CFW-55 |
55 |
35 |
10 |
|
CFW-57.15 |
57.15 |
38.1 |
9.53 |
|
CFW-58 |
58 |
45 |
7 |
|
CFW-62 |
62 |
40 |
6 |
|
CFW-62 |
62 |
42 |
7 |
|
CFW-65 |
65 |
45 |
8 |
|
CFW-68 |
68 |
52 |
10 |
|
CFW-70 |
70 |
50 |
7 |
|
CFW-72 |
72 |
50 |
7 |
|
CFW-73 |
73 |
38 |
9 |
|
CFW-75 |
75 |
60 |
7 |
|
CFW-78 |
78 |
55 |
8 |
|
CFW-80 |
80 |
50 |
8 |
|
CFW-82 |
82 |
60 |
7 |
|
CFW-85 |
85 |
60 |
8 |
|
CFW-90 |
90 |
65 |
10 |
|
CFW-95 |
95 |
75 |
10 |
|
CFW-110 |
110 |
90 |
7.5 |
|
CFW-115 |
115 |
100 |
9 |
|
CFW-120 |
120 |
100 |
12 |
|
CFW-140 |
140 |
115 |
12 |
|
CFW-150 |
150 |
125 |
12 |
|
CFW-160 |
160 |
130 |
12 |
|
CFW-164 |
164 |
150 |
8 |
|
CFW-170 |
170 |
148 |
10/14 |
|
CFW-175 |
175 |
145 |
13 |
|
CFW-190 |
190 |
165 |
13 |
|
CFW-200 |
200 |
170 |
15 |
|
CFW-205 |
205 |
185 |
11 |
|
CFW-255 |
255 |
230 |
8/7.5 |
