D Ring Box Kit for excavator CAT 4C-4782

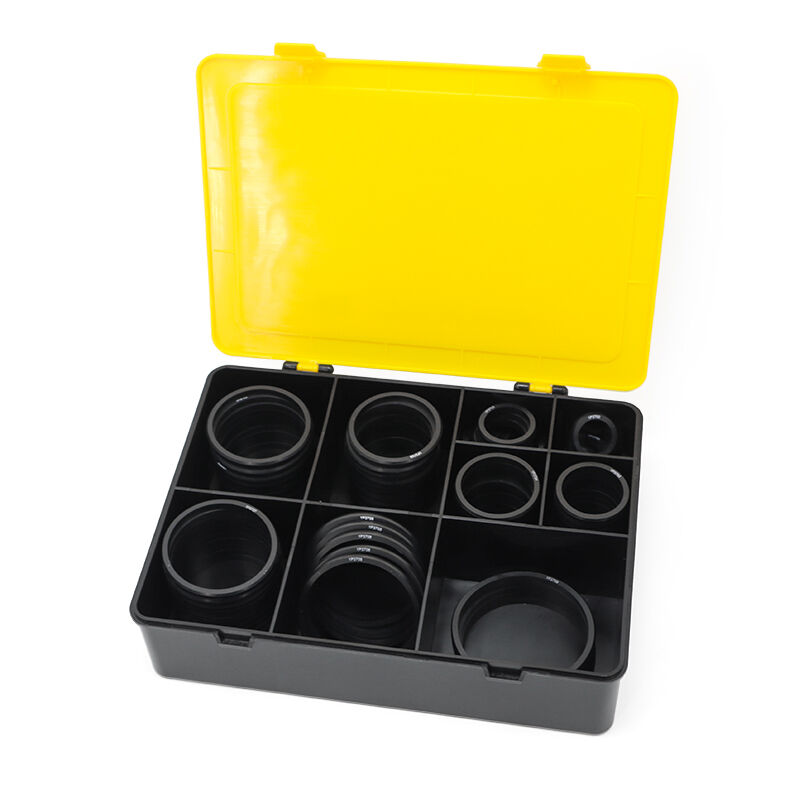

This handy kit contains the 9 most popular sizes D-Rings used on CAT equip.
- Description
- Technical Information
- Specifications
- Recommended Products
Description

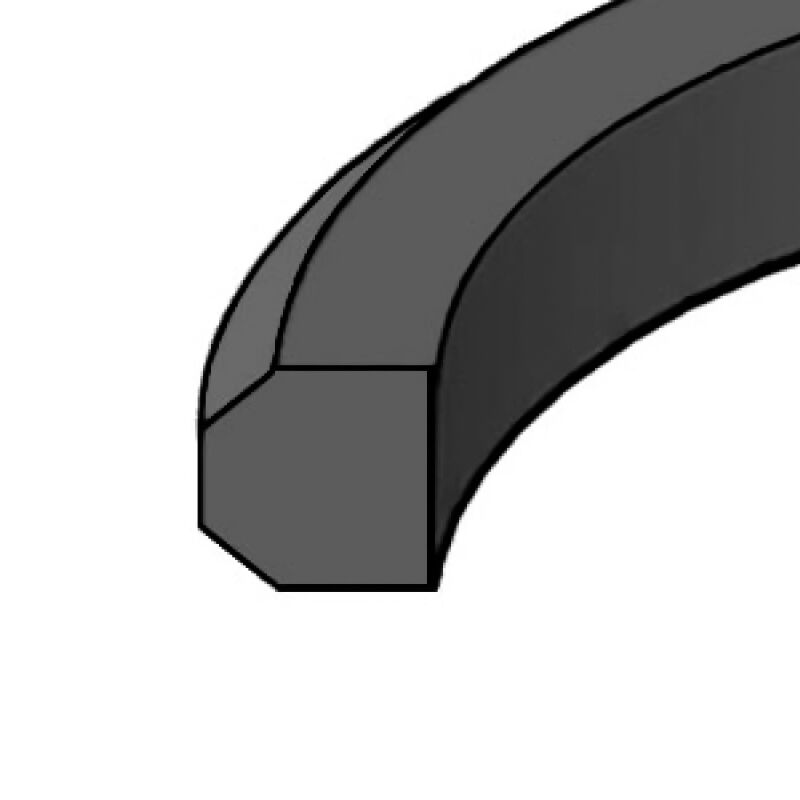

Structural Design:
D-Rings are rings in the shape of a D that offer an alternative sealing solution to O-rings for use in rotary applications.
They provide the same sealing properties as O-rings and can, in addition, be used in applications that experience high and low pressures, operating in a wide range of temperatures.
The distinctive shape of d-rings confers numerous benefits in terms of strength and functionality, establishing them as a favored option in diverse industrial sectors.
Summary of Advantages:
- Available for professional use and also suitable for home use
- Strong sealing and durable
- Abrasion Resistant, Oil Resistance, High Chemical Resistance
Typically made from polyurethane, alternative materials can be provided upon request to suit your specific needs.
Technical Information
Technical Parameters:
|
Hardness |
70-90 Shore A |
|
Material |
NBR |
|
Temperature(°C) |
-50℃~11℃ |
|
Pressure |
Up To 400 Bar |
Specifications
|

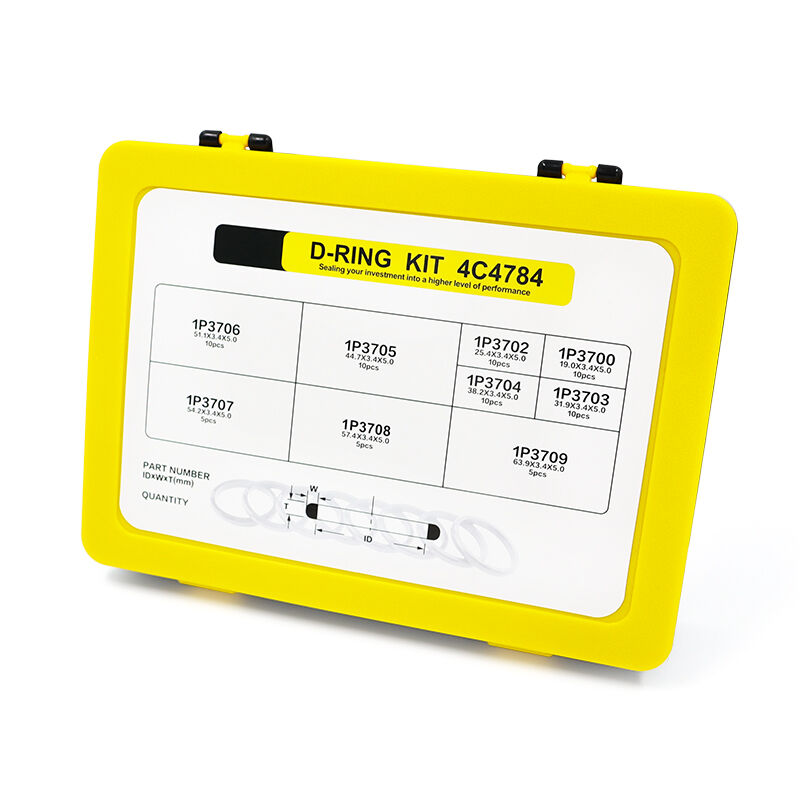

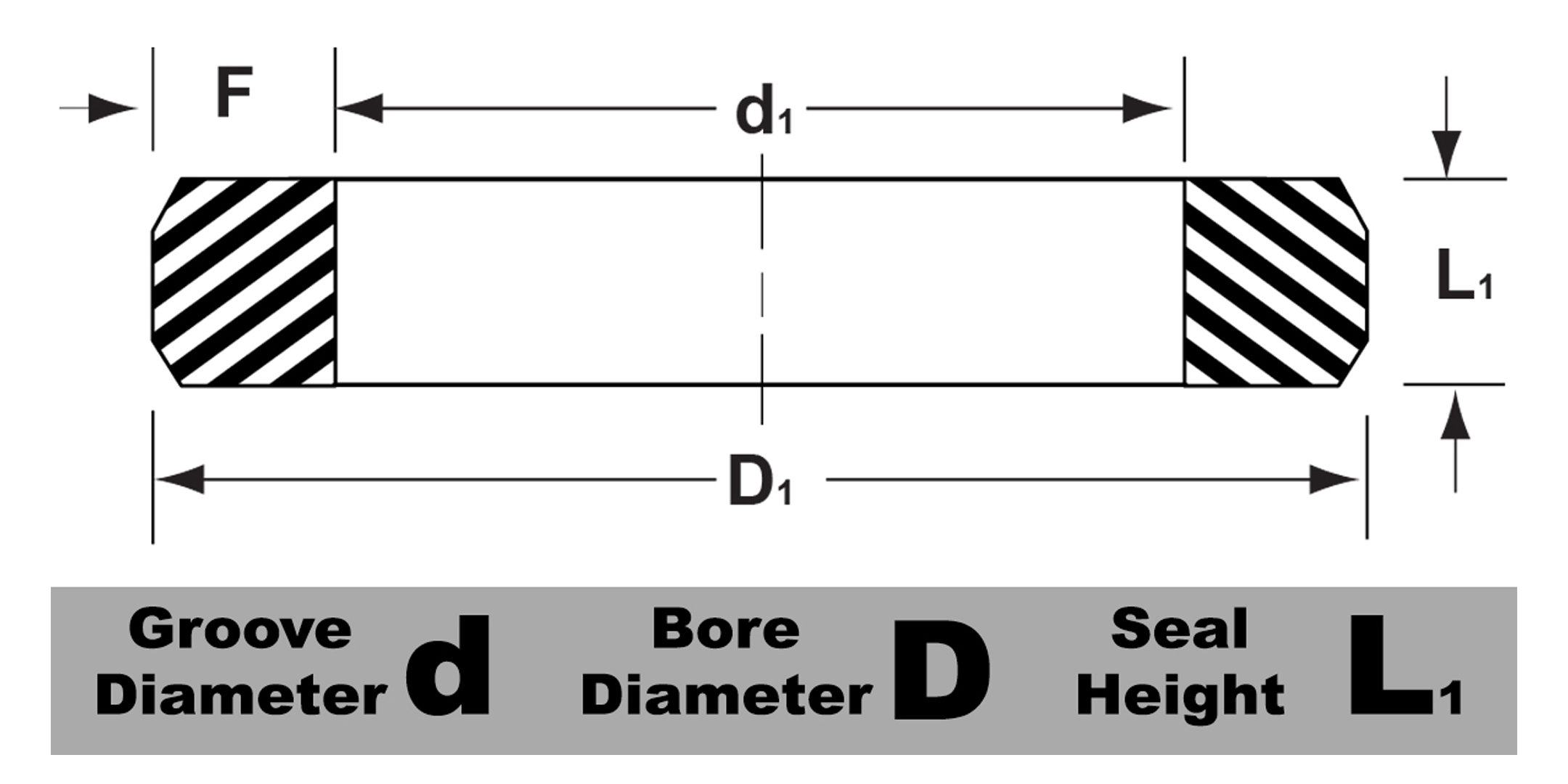

D Ring Box Kit CAT 4C-4782 |
||||
|
Designation |
d1 |
F |
L1 |
PCS |
|
1P-3700 |
19 |
3.4 |
5 |
10 |
|
1P-3702 |
25.4 |
3.4 |
5 |
10 |
|
1P-3703 |
31.9 |
3.4 |
5 |
10 |
|
1P-3704 |
38.2 |
3.4 |
5 |
10 |
|
1P-3705 |
44.7 |
3.4 |
5 |
10 |
|
1P-3706 |
51.1 |
3.4 |
5 |
10 |
|
1P-3707 |
54.2 |
3.4 |
5 |
5 |
|
1P-3708 |
57.4 |
3.4 |
5 |
5 |
|
1P-3709 |
63.9 |
3.4 |
5 |
5 |
