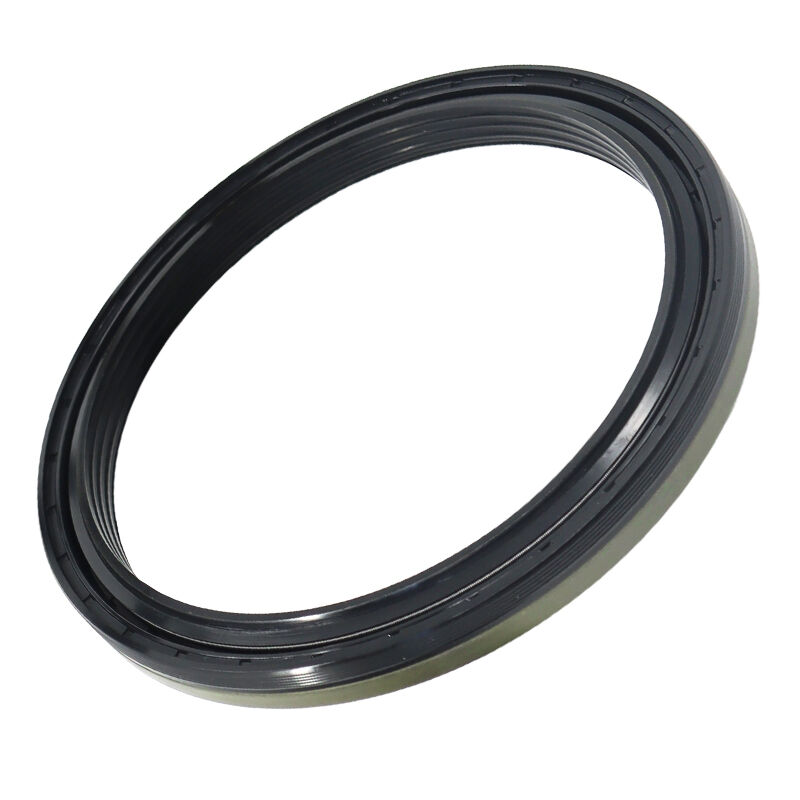

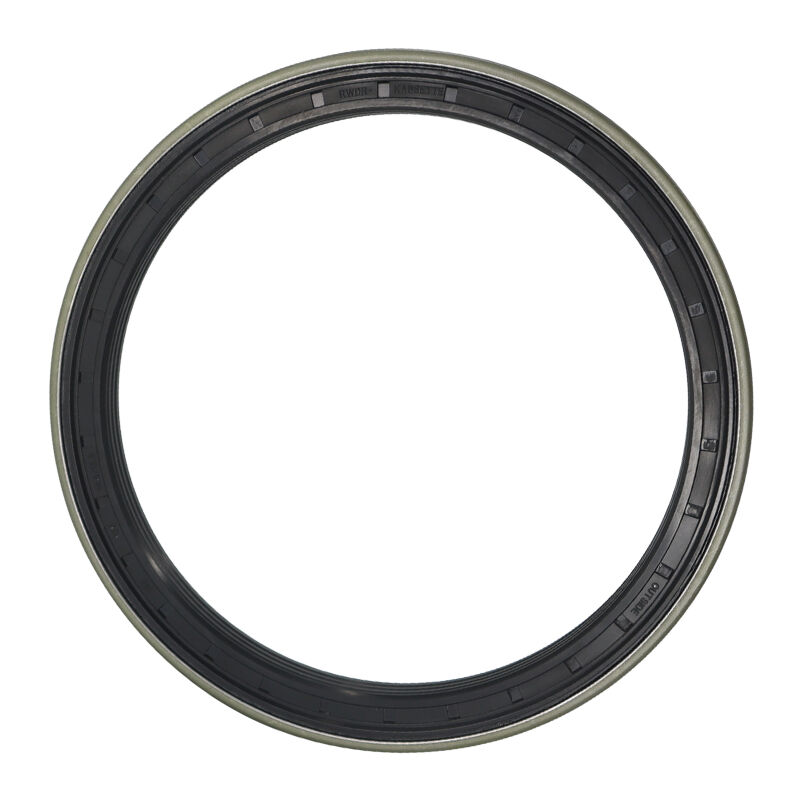

T1 Cassette seal

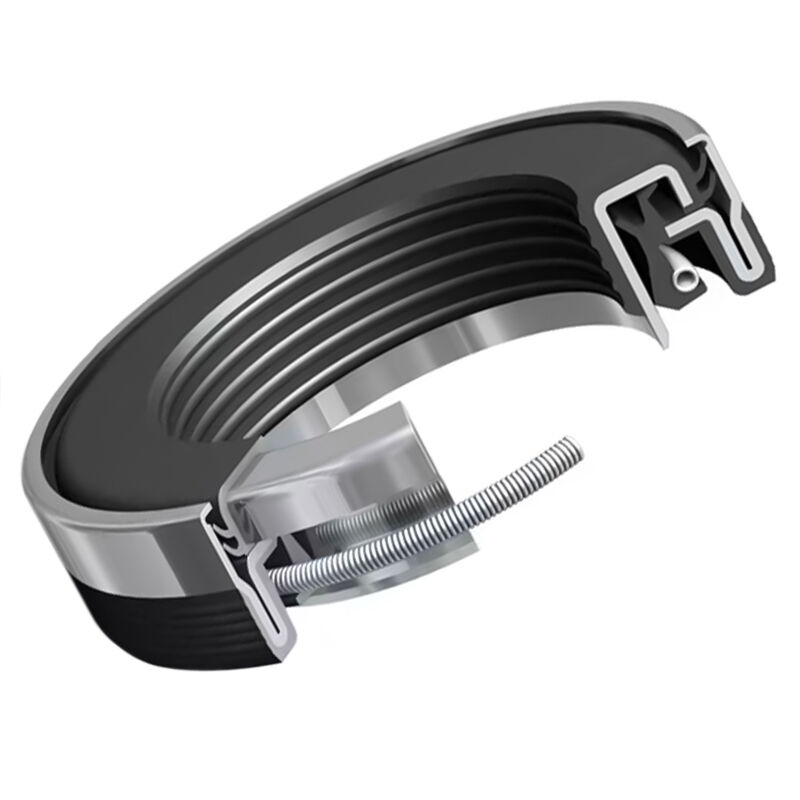

The cassette seals are usually made up of a sleeve, sealing lip with a spring and several anti-dust lips integrated into a labyrinth system to protect against external contamination. This minimizes shaft finish requirements and eliminates shaft grooving.
- Description
- Technical Information
- Specifications
- Recommended Products
Description
Structural Design:
Thanks to the rational system solution with an integrated labyrinth, the complete unit provides high protection against impurities.
In addition, the combination seals are particularly suitable for use with strong loads.
In the process, the integrated running surface meets the special requirements placed on a dynamic seal.

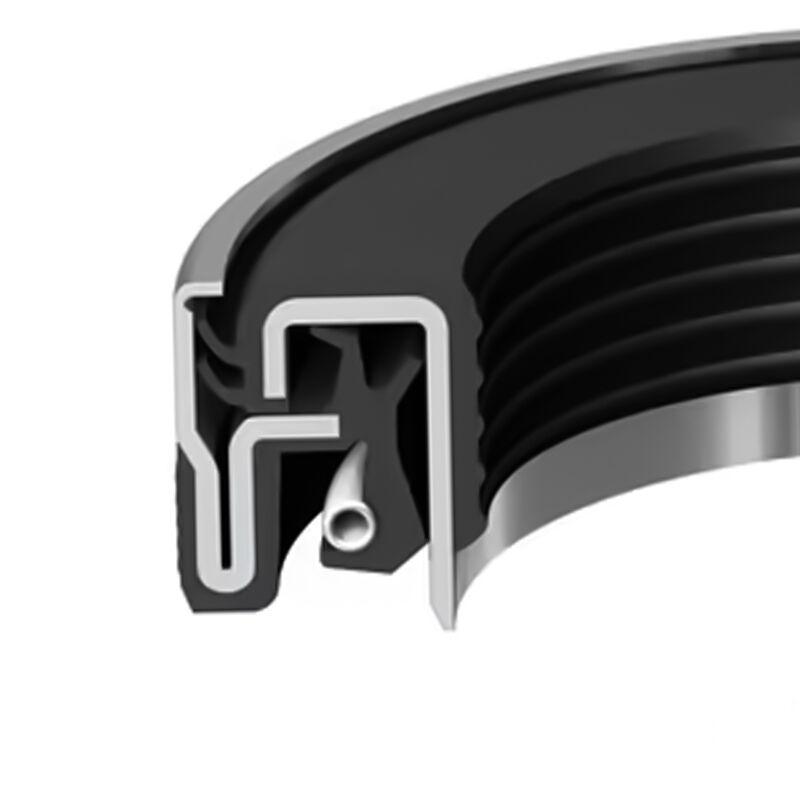

The name “cassette” refers to its unique, compact design, which houses the rubber sealing lip in a rigid casing, facilitating a perfect fit and enhanced performance.
Summary of Advantages:
- Multi-lip design
- Maximum protection against liquid or solid contamination
- Oil and grease retention
- Reduced friction
- Extended wheel-end service life
Typically made from polyurethane, alternative materials can be provided upon request to suit your specific needs.
Technical Information
Technical Parameters:
|
Pressure |
0.5bar |
|
Speed |
6m/s |
|
Material |
NBR + Steel |
|
Temperature(°C) |
-30℃~100℃ |
Specifications
|

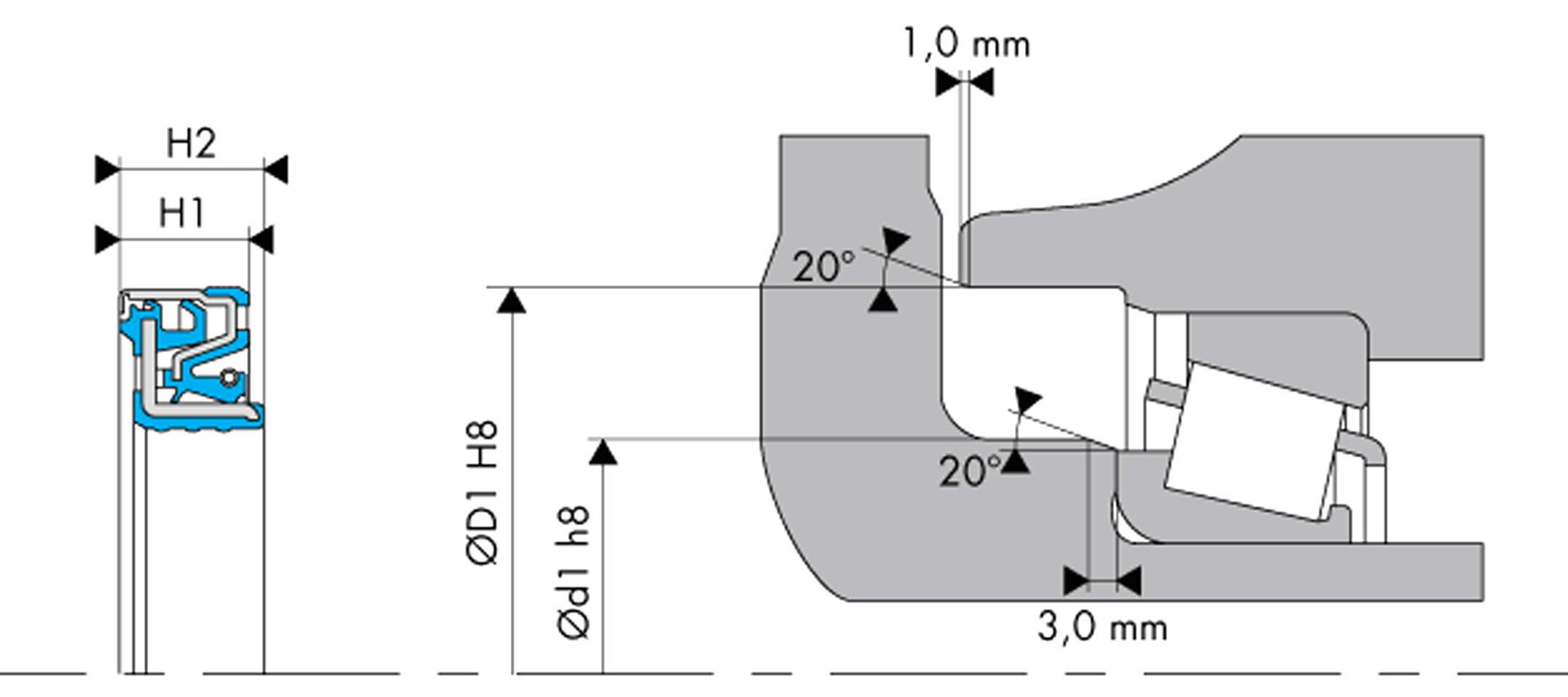

Designation |
Outer Diameter |
Inner Diameter |
Housing groove width |
|
HUB-44 |
44 |
30 |
11 |
|
HUB-44 |
44 |
30 |
14 |
|
HUB-50 |
50 |
35 |
10 |
|
HUB-52 |
52 |
35 |
16 |
|
HUB-52 |
52 |
35 |
16 |
|
HUB-55 |
55 |
45 |
7 |
|
HUB-60 |
60 |
40 |
18.5 |
|
HUB-60 |
60 |
45 |
16 |
|
HUB-62 |
62 |
45 |
11.2 |
|
HUB-65 |
65 |
45 |
15 |
|
HUB-65 |
65 |
45 |
18.5 |
|
HUB-65 |
65 |
46 |
16 |
|
HUB-65 |
65 |
46 |
21 |
|
HUB-65 |
65 |
50 |
18 |
|
HUB-67 |
67 |
55 |
8/11 |
|
HUB-80 |
80 |
46.15 |
16.5 |
|
HUB-70 |
70 |
45 |
14/17 |
|
HUB-75 |
75 |
48 |
14/17 |
|
HUB-75 |
75 |
50 |
12 |
|
HUB-75 |
75 |
56 |
16 |
|
HUB-75 |
75 |
56 |
22.5 |
|
HUB-75 |
75 |
56 |
22.5 |
|
HUB-78 |
78 |
53.2 |
13/14 |
|
HUB-80 |
80 |
55 |
11 |
|
HUB-80 |
80 |
56 |
13/14.5 |
|
HUB-90 |
90 |
60 |
13.5/15 |
|
HUB-90 |
90 |
65 |
13/14.5 |
|
HUB-90 |
90 |
65 |
20 |
|
HUB-90 |
90 |
65 |
20 |
|
HUB-92 |
92 |
65 |
45945 |
|
HUB-92 |
92 |
65 |
14 |
|
HUB-95 |
95 |
70 |
13/14.5 |
|
HUB-100 |
100 |
75 |
13/14.5 |
|
HUB-102 |
102 |
75 |
14 |
|
HUB-110 |
110 |
85 |
13/14.5 |
|
HUB-120.65 |
120.65 |
88.9 |
14.5/16 |
|
HUB-140 |
140 |
110 |
14.5/16 |
|
HUB-150 |
150 |
120 |
14/19 |
|
HUB-150 |
150 |
120 |
15 |
|
HUB-155 |
155 |
130 |
14.5/15 |
|
HUB-160 |
160 |
120 |
15/17.5 |
|
HUB-160 |
160 |
127 |
15.5/17.5 |
|
HUB-165 |
165 |
136.8 |
13 |
|
HUB-170 |
170 |
140 |
14.5/16 |
|
HUB-170 |
170 |
147 |
15.5/16 |
|
HUB-170 |
170 |
148 |
14 |
|
HUB-175 |
175 |
145 |
14.5/15.5 |
|
HUB-178 |
178 |
150.15 |
13/16 |
|
HUB-180 |
180 |
150 |
14.5/16 |
|
HUB-189 |
189 |
145 |
15.5/17 |
|
HUB-190 |
190 |
155 |
17.5/19 |
|
HUB-190 |
190 |
165 |
17 |
|
HUB-195 |
195 |
165 |
16.5/18 |
|
HUB-198 |
198 |
167.8 |
15.5/16 |
|
HUB-208 |
208 |
178 |
16/18 |
|
HUB-215 |
215 |
190 |
15.5/17 |
|
HUB-220 |
220 |
190 |
16/18 |
|
HUB-230 |
230 |
189.8 |
15.5/17 |
|
HUB-240 |
240 |
210 |
16/18 |
|
HUB-119/128 |
119/128 |
90 |
23 |
|
HUB-156/160 |
156/160 |
122 |
29 |
|
HUB-152 |
152 |
117 |
22 |
