DB/AW Type Oil Seal

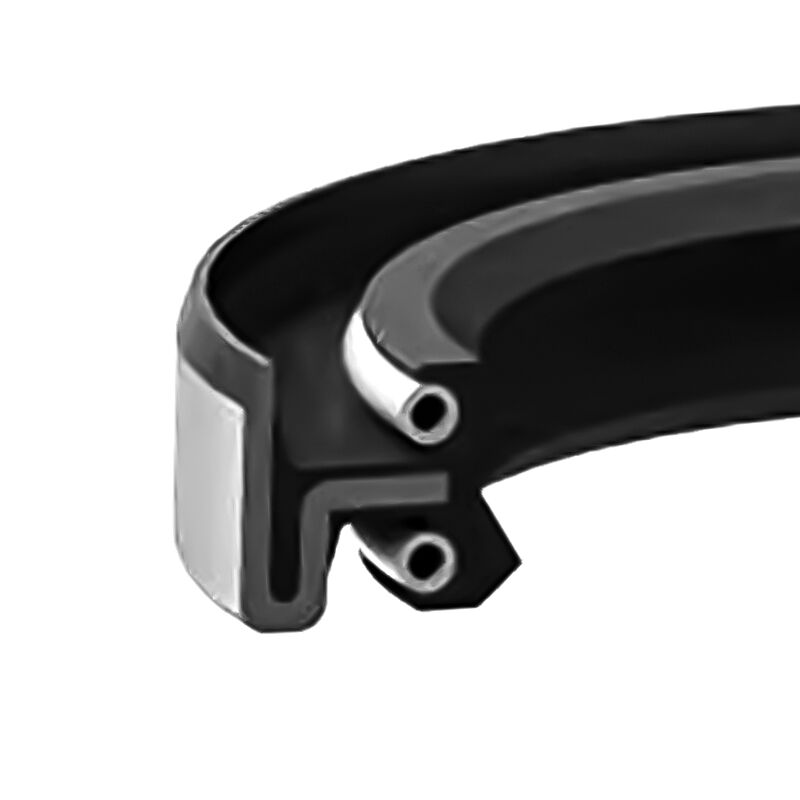

The DB profile is a shaft seal composed of a single external metal cage with an internal rubber coating and a double primary sealing lip with integrated springs to separate fluids.
- Description
- Technical Information
- Specifications
- Recommended Products
Description
Structural Design:
The Oil Seal DB is a high-quality sealing solution designed with a double-action sealing lip, offering enhanced performance and efficiency.
It features two sealing lips supported by coil springs, ensuring reliable sealing in demanding applications.
The outer sheath of the seal is made of durable metal, providing durability and resistance to external factors.
What sets the Oil Seal DB apart are its special features that enable efficient media separation.
Summary of Advantages:
- Good radial rigidity, particularly for large diameters
- Good stability when assembled, preventing the bounce-back effect
- Sealing for low and high viscosity fluids
- Modern sealing lips with low radial forces
- Fluid separation system
Typically made from polyurethane, alternative materials can be provided upon request to suit your specific needs.
Technical Information
Technical Parameters:
|
Pressure |
10bar |
|
Speed |
5m/s |
|
Material |
NBR + Metal |
|
Temperature(°C) |
-30℃~100℃ |
Specifications
|
Designation |
Outer Diameter |
Inner Diameter |

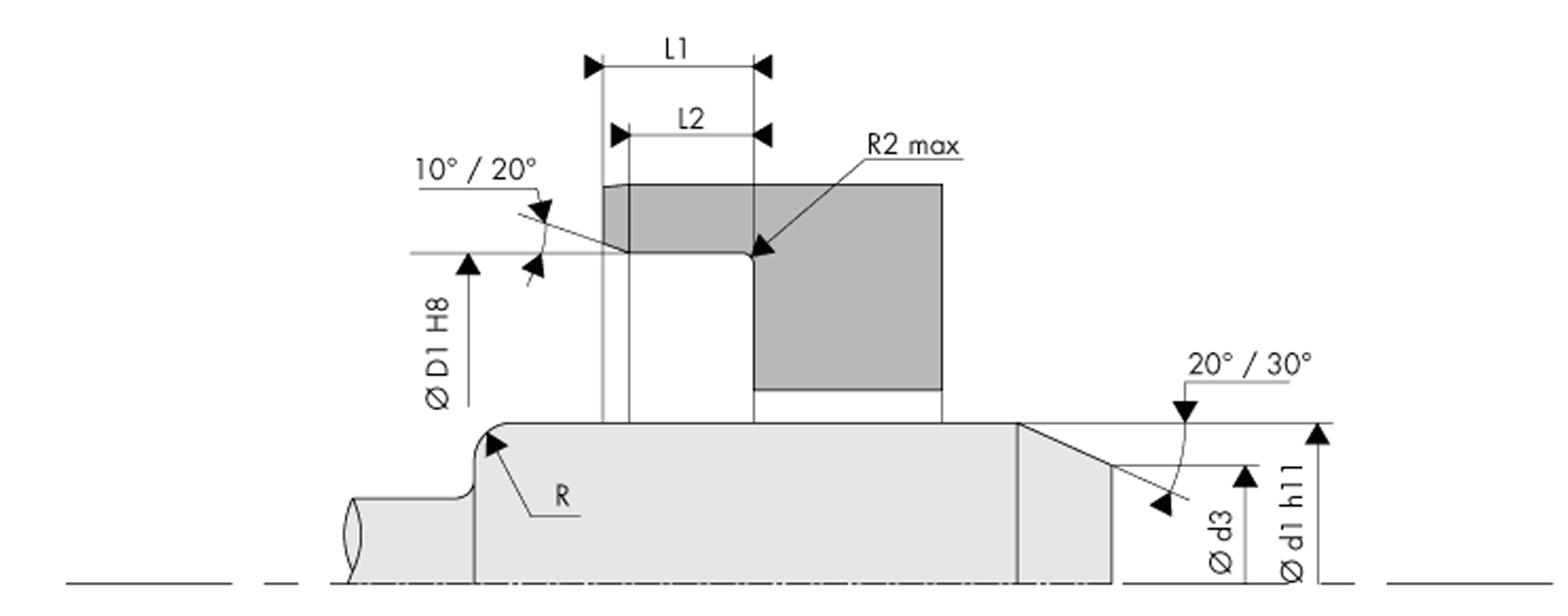

Housing groove width |
|
AW2085 |
55 |
35 |
11 |
|
AW2086E |
55 |
35 |
12 |
|
AW2388E |
62 |
40 |
11 |
|
AW2390E |
62 |
40 |
12 |
|
AW2507 |
65 |
42 |
12 |
|
AW2668E |
68 |
45 |
12 |
|
AW2864E |
72 |
50 |
12 |
|
AW3055H |
78 |
55 |
12 |
|
AW3222E |
82 |
60 |
12 |
|
AW4063E |
100 |
125 |
13 |
