BRT Bearing Gaskets Back-up rings

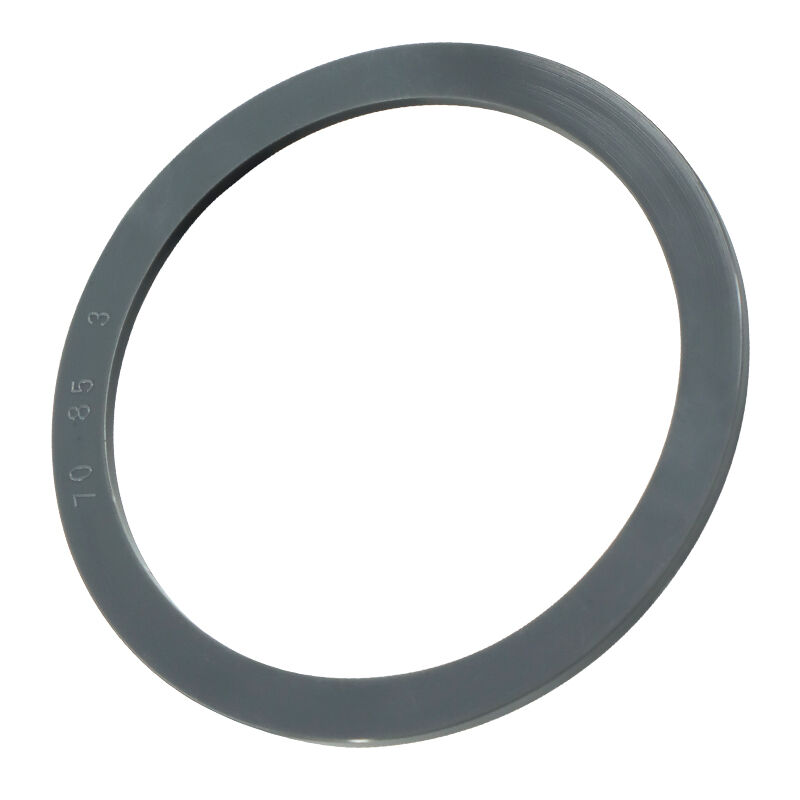

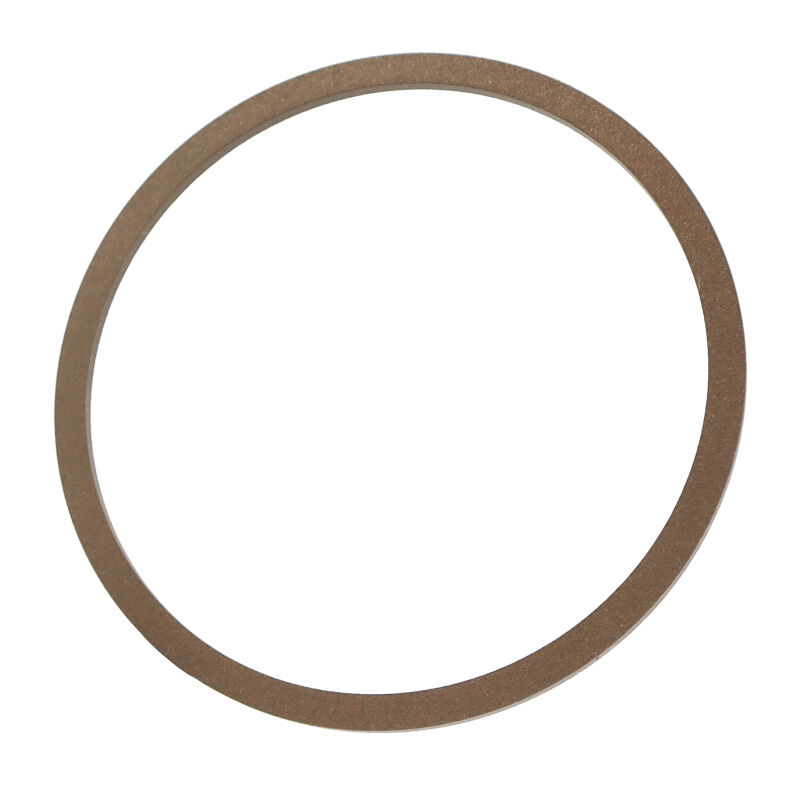

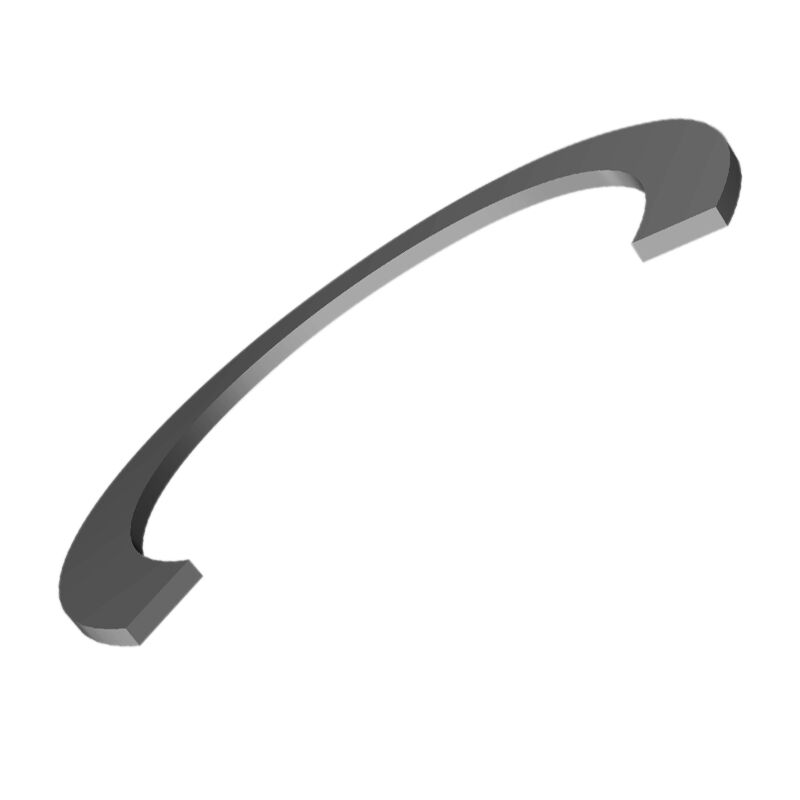

BRT back-up rings，Can be made of PTFE or nylon material.
Back-up rings are used to prevent the O-ring from entering the clearance gap.
When high pressures are exerted on the O-ring，the hard back-up ring material will keep the O-ring material from flowing into the gap, which will prevent premature failure.
- Description
- Technical Information
- Specifications
- Recommended Products
Description

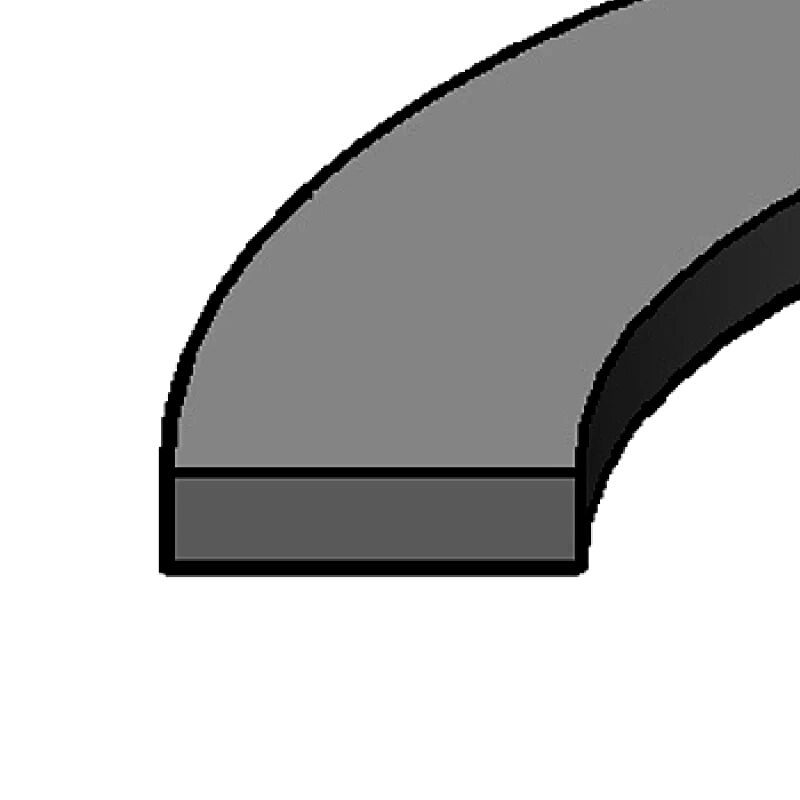

Structural Design:
In a sealing application, backup rings provide added extrusion resistance and prevent damage to O-rings and seals when subjected to high pressures, larger extrusion gaps, and/or high temperatures.
PTFE gaskets have great resistance to most mineral and organic chemicals such as acids, bases, and solvents, and can be used up to approximately 240°C.
PTFE gaskets have good ozone resistance and gas impermeability.
BRT helps to prevent extrusion, a common form of O-ring failure in high-pressure environments, and reduces the risk of leakage. Especially in applications with fluctuating pressure, back-up rings are essential. Their shape and positioning provide critical support to the O-ring, contributing to a stable and reliable sealing system.
Summary of Advantages:
- Has excellent chemical resistance
- Can maintain its shape and function even under extreme conditions
- Low friction coefficient
- High pressure creep resistance
Typically made from polyurethane, alternative materials can be provided upon request to suit your specific needs.
Technical Information
Technical Parameters:
|
Pressure |
Up To 5000 Psi |
|
Speed |
1.5m/s |
|
Material |
PTFE / nylon |
|
Temperature(°C) |
-200℃~200℃ |

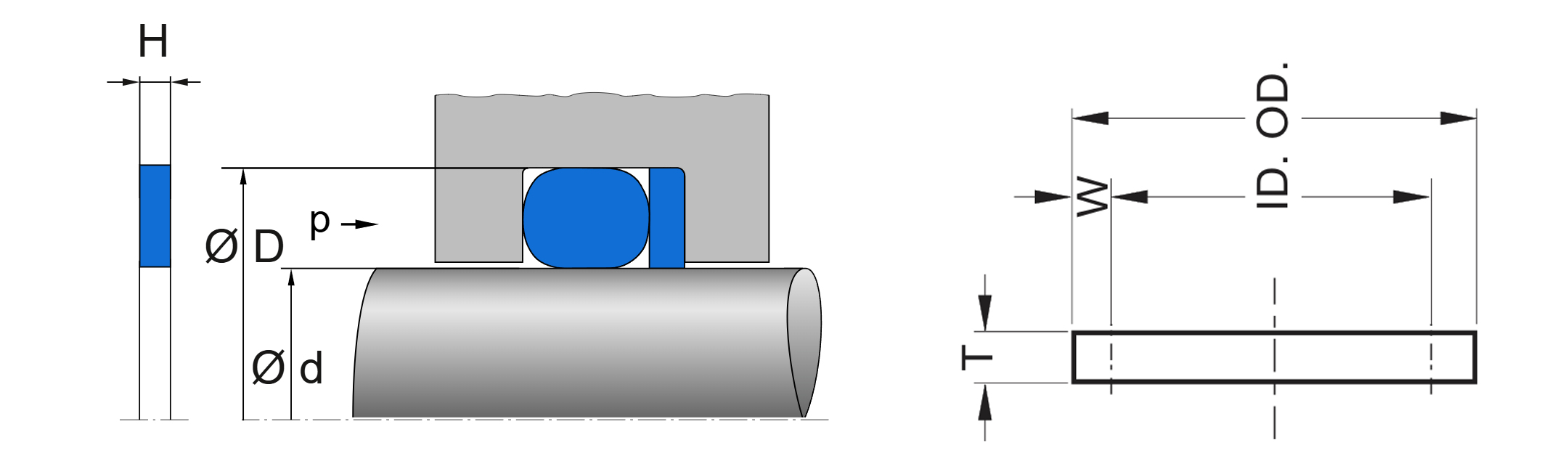

Specifications
|
Designation |
Outer Diameter |
Inner Diameter |
Housing groove width |
|
BRT-30*40*2 |
40 |
30 |
2 |
|
BRT-35*45*2 |
45 |
35 |
2 |
|
BRT-35*50*2 |
50 |
35 |
2 |
|
BRT-40*50*2 |
50 |
40 |
2 |
|
BRT-40*53*2 |
53 |
40 |
2 |
|
BRT-40*55*2 |
55 |
40 |
2 |
|
BRT-45*55*2 |
55 |
45 |
2 |
|
BRT-45*60*2 |
60 |
45 |
2 |
|
BRT-50*65*2 |
65 |
50 |
2 |
|
BRT-50*60*2 |
60 |
50 |
2 |
|
BRT-50*63*2 |
63 |
50 |
2 |
|
BRT-60*70*2 |
70 |
60 |
2 |
|
BRT-60*73*2 |
73 |
60 |
2 |
|
BRT-60*75*2 |
75 |
60 |
2 |
|
BRT-65*80*2 |
80 |
65 |
2 |
|
BRT-70*85*2 |
85 |
70 |
2 |
|
BRT-70*90*2 |
90 |
70 |
2 |
|
BRT-75*90*2 |
90 |
75 |
2 |
|
BRT-80*92*2 |
92 |
80 |
2 |
|
BRT-80*95*2 |
95 |
80 |
2 |
|
BRT-80*100*2 |
100 |
80 |
2 |
|
BRT-85*100*2 |
100 |
85 |
2 |
|
BRT-90*105*2 |
105 |
90 |
2 |
|
BRT-95*105*2 |
105 |
95 |
2 |
|
BRT-95*110*2 |
110 |
95 |
2 |
|
BRT-95*115*2 |
115 |
95 |
2 |
|
BRT-100*115*2 |
115 |
100 |
2 |
|
BRT-105*120*2 |
120 |
105 |
2 |
|
BRT-110*125*2 |
125 |
110 |
2 |
|
BRT-110*130*2 |
130 |
110 |
2 |
|
BRT-115*130*2 |
130 |
115 |
2 |
|
BRT-120*135*2 |
135 |
120 |
2 |
|
BRT-120*140*2 |
140 |
120 |
2 |
|
BRT-125*140*2 |
140 |
125 |
2 |
|
BRT-125*145*2 |
145 |
125 |
2 |
|
BRT-130*150*2 |
150 |
130 |
2 |
|
BRT-135*150*2 |
150 |
135 |
2 |
|
BRT-140*160*2 |
160 |
140 |
2 |
|
BRT-145*160*2 |
160 |
145 |
2 |
|
BRT-150*165*2 |
165 |
150 |
2 |
|
BRT-150*170*2 |
170 |
150 |
2 |
|
BRT-155*175*2 |
175 |
155 |
2 |
|
BRT-160*180*2 |
180 |
160 |
2 |
|
BRT-165*173*2 |
173 |
165 |
2 |
|
BRT-165*185*2 |
185 |
165 |
2 |
|
BRT-170*185*2 |
185 |
170 |
2 |
|
BRT-175*190*2 |
190 |
175 |
2 |
|
BRT-180*200*2 |
200 |
180 |
2 |
|
BRT-210*218*2 |
218 |
210 |
2 |
|
BRT-210*220*2 |
220 |
210 |
2 |
|
BRT-210*230*2 |
230 |
210 |
2 |
|
BRT-20*30*3 |
30 |
20 |
3 |
|
BRT-30*40*3 |
40 |
30 |
3 |
|
BRT-35*43*3 |
43 |
35 |
3 |
|
BRT-35*45*3 |
45 |
35 |
3 |
|
BRT-35*50*3 |
50 |
35 |
3 |
|
BRT-40*50*3 |
50 |
40 |
3 |
|
BRT-40*55*3 |
55 |
40 |
3 |
|
BRT-45*55*3 |
55 |
45 |
3 |
|
BRT-45*60*3 |
60 |
45 |
3 |
|
BRT-50*60*3 |
60 |
50 |
3 |
|
BRT-50*63*3 |
63 |
50 |
3 |
|
BRT-50*65*3 |
65 |
50 |
3 |
|
BRT-53*63*3 |
63 |
53 |
3 |
|
BRT-55*60*3 |
60 |
55 |
3 |
|
BRT-55*65*3 |
65 |
55 |
3 |
|
BRT-55*68*3 |
68 |
55 |
3 |
|
BRT-55*70*3 |
70 |
55 |
3 |
|
BRT-55*71*3 |
71 |
55 |
3 |
|
BRT-55*75*3 |
75 |
55 |
3 |
|
BRT-60*70*3 |
70 |
60 |
3 |
|
BRT-60*73*3 |
73 |
60 |
3 |
|
BRT-60*75*3 |
75 |
60 |
3 |
|
BRT-60*80*3 |
80 |
60 |
3 |
|
BRT-65*75*3 |
75 |
65 |
3 |
|
BRT-65*78*3 |
78 |
65 |
3 |
|
BRT-65*80*3 |
80 |
65 |
3 |
|
BRT-65*85*3 |
85 |
65 |
3 |
|
BRT-70*80*3 |
80 |
70 |
3 |
|
BRT-70*83*3 |
83 |
70 |
3 |
|
BRT-70*85*3 |
85 |
70 |
3 |
|
BRT-70*90*3 |
90 |
70 |
3 |
|
BRT-75*85*3 |
85 |
75 |
3 |
|
BRT-75*88*3 |
88 |
75 |
3 |
|
BRT-75*90*3 |
90 |
75 |
3 |
|
BRT-75*95*3 |
95 |
75 |
3 |
|
BRT-80*100*3 |
100 |
80 |
3 |
|
BRT-80*90*3 |
90 |
80 |
3 |
|
BRT-80*93*3 |
93 |
80 |
3 |
|
BRT-80*95*3 |
95 |
80 |
3 |
|
BRT-85*100*3 |
100 |
85 |
3 |
|
BRT-85*105*3 |
105 |
85 |
3 |
|
BRT-90*105*3 |
105 |
90 |
3 |
|
BRT-90*110*3 |
110 |
90 |
3 |
|
BRT-95*105*3 |
105 |
95 |
3 |
|
BRT-95*110*3 |
110 |
95 |
3 |
|
BRT-95*115*3 |
115 |
95 |
3 |
|
BRT-100*115*3 |
115 |
100 |
3 |
|
BRT-100*120*3 |
120 |
100 |
3 |
|
BRT-100*130*3 |
130 |
100 |
3 |
|
BRT-105*120*3 |
120 |
105 |
3 |
|
BRT-105*125*3 |
125 |
105 |
3 |
|
BRT-110*115*3 |
115 |
110 |
3 |
|
BRT-110*125*3 |
125 |
110 |
3 |
|
BRT-110*130*3 |
130 |
110 |
3 |
|
BRT-115*130*3 |
130 |
115 |
3 |
|
BRT-115*135*3 |
135 |
115 |
3 |
|
BRT-120*135*3 |
135 |
120 |
3 |
|
BRT-120*140*3 |
140 |
120 |
3 |
|
BRT-125*135*3 |
135 |
125 |
3 |
|
BRT-125*140*3 |
140 |
125 |
3 |
|
BRT-125*145*3 |
145 |
125 |
3 |
|
BRT-130*140*3 |
140 |
130 |
3 |
|
BRT-130*145*3 |
145 |
130 |
3 |
|
BRT-130*150*3 |
150 |
130 |
3 |
|
BRT-135*150*3 |
150 |
135 |
3 |
|
BRT-140*155*3 |
155 |
140 |
3 |
|
BRT-140*160*3 |
160 |
140 |
3 |
|
BRT-140*165*3 |
165 |
140 |
3 |
|
BRT-145*160*3 |
160 |
145 |
3 |
|
BRT-150*165*3 |
165 |
150 |
3 |
|
BRT-150*170*3 |
170 |
150 |
3 |
|
BRT-150*175*3 |
175 |
150 |
3 |
|
BRT-160*175*3 |
175 |
160 |
3 |
|
BRT-160*180*3 |
180 |
160 |
3 |
|
BRT-160*185*3 |
185 |
160 |
3 |
|
BRT-165*180*3 |
180 |
165 |
3 |
|
BRT-170*180*3 |
180 |
170 |
3 |
|
BRT-170*185*3 |
185 |
170 |
3 |
|
BRT-170*190*3 |
190 |
170 |
3 |
|
BRT-170*195*3 |
195 |
170 |
3 |
|
BRT-175*200*3 |
200 |
175 |
3 |
|
BRT-180*200*3 |
200 |
180 |
3 |
|
BRT-180*205*3 |
205 |
180 |
3 |
|
BRT-185*195*3 |
195 |
185 |
3 |
|
BRT-185*205*3 |
205 |
185 |
3 |
|
BRT-190*200*3 |
200 |
190 |
3 |
|
BRT-190*210*3 |
210 |
190 |
3 |
|
BRT-195*215*3 |
215 |
195 |
3 |
|
BRT-200*225*3 |
225 |
200 |
3 |
|
BRT-210*230*3 |
230 |
210 |
3 |
|
BRT-215*235*3 |
235 |
215 |
3 |
|
BRT-235*260*3 |
260 |
235 |
3 |
|
BRT-255*280*3 |
280 |
255 |
3 |
|
BRT-80*95*4 |
95 |
80 |
4 |
|
BRT-85*100*4 |
100 |
85 |
4 |
|
BRT-90*105*4 |
105 |
90 |
4 |
|
BRT-95*110*4 |
110 |
95 |
4 |
|
BRT-100*115*4 |
115 |
100 |
4 |
|
BRT-100*135*4 |
135 |
100 |
4 |
|
BRT-110*130*4 |
130 |
110 |
4 |
|
BRT-115*130*4 |
130 |
115 |
4 |
|
BRT-115*135*4 |
135 |
115 |
4 |
|
BRT-120*140*4 |
140 |
120 |
4 |
|
BRT-125*135*4 |
135 |
125 |
4 |
|
BRT-130*150*4 |
150 |
130 |
4 |
|
BRT-140*150*4 |
150 |
140 |
4 |
|
BRT-180*205*4 |
205 |
180 |
4 |
|
BRT-195*215*4 |
215 |
195 |
4 |
|
BRT-200*225*4 |
225 |
200 |
4 |
|
BRT-215*235*4 |
235 |
215 |
4 |
|
BRT-220*240*4 |
240 |
220 |
4 |
|
BRT-235*260*4 |
260 |
235 |
4 |
|
BRT-255*280*4 |
280 |
255 |
4 |
|
BRT-180*200*4 |
200 |
180 |
4 |
|
BRT-200*220*3 |
220 |
200 |
3 |
|
BRT-200*225*3 |
225 |
200 |
3 |
|
BRT-140*160*4 |
160 |
140 |
4 |
|
BRT-145*165*4 |
165 |
145 |
4 |
|
BRT-155*170*4 |
170 |
155 |
4 |
|
BRT-160*180*4 |
180 |
160 |
4 |
|
BRT-160*185*4 |
185 |
160 |
4 |
|
BRT-165*180*4 |
180 |
165 |
4 |
|
BRT-170*195*4 |
195 |
170 |
4 |
