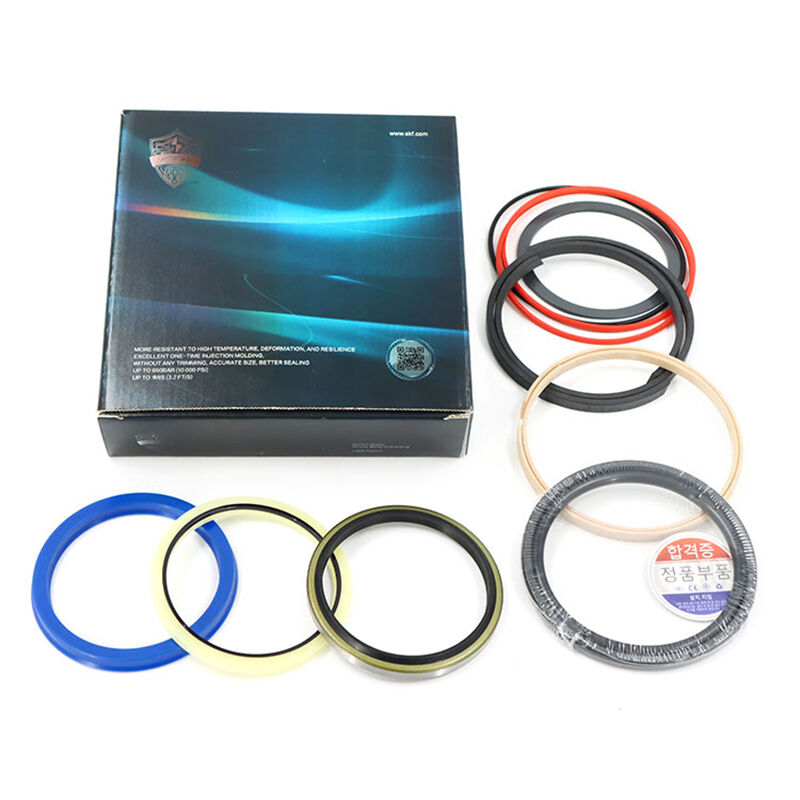

DOCTOR German technology Hydraulic Cylinder Seal Repair Kit for Excavator
Equipped with German process technology seals, it is a sturdy and durable integrated solution designed to repair and protect hydraulic cylinders in demanding construction and industrial machinery.
Designed for excavators, loaders, and similar equipment, this kit ensures leak-free operation, reduces downtime, and withstands extreme pressure, temperature, and abrasive conditions.
- Description
- Configuration information
- Specifications
- Recommended Products
Description
Structural Design:

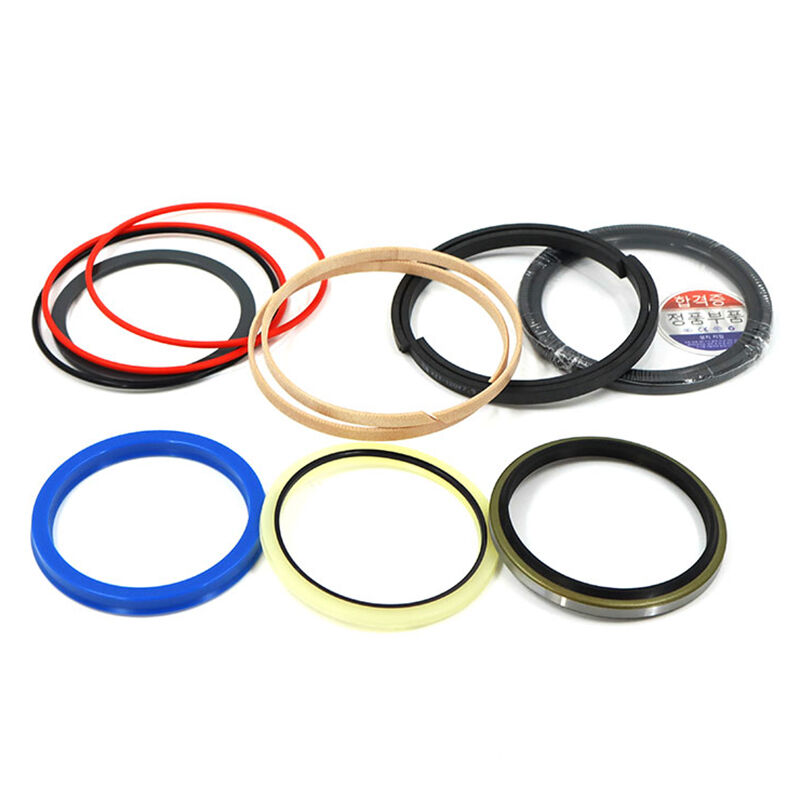

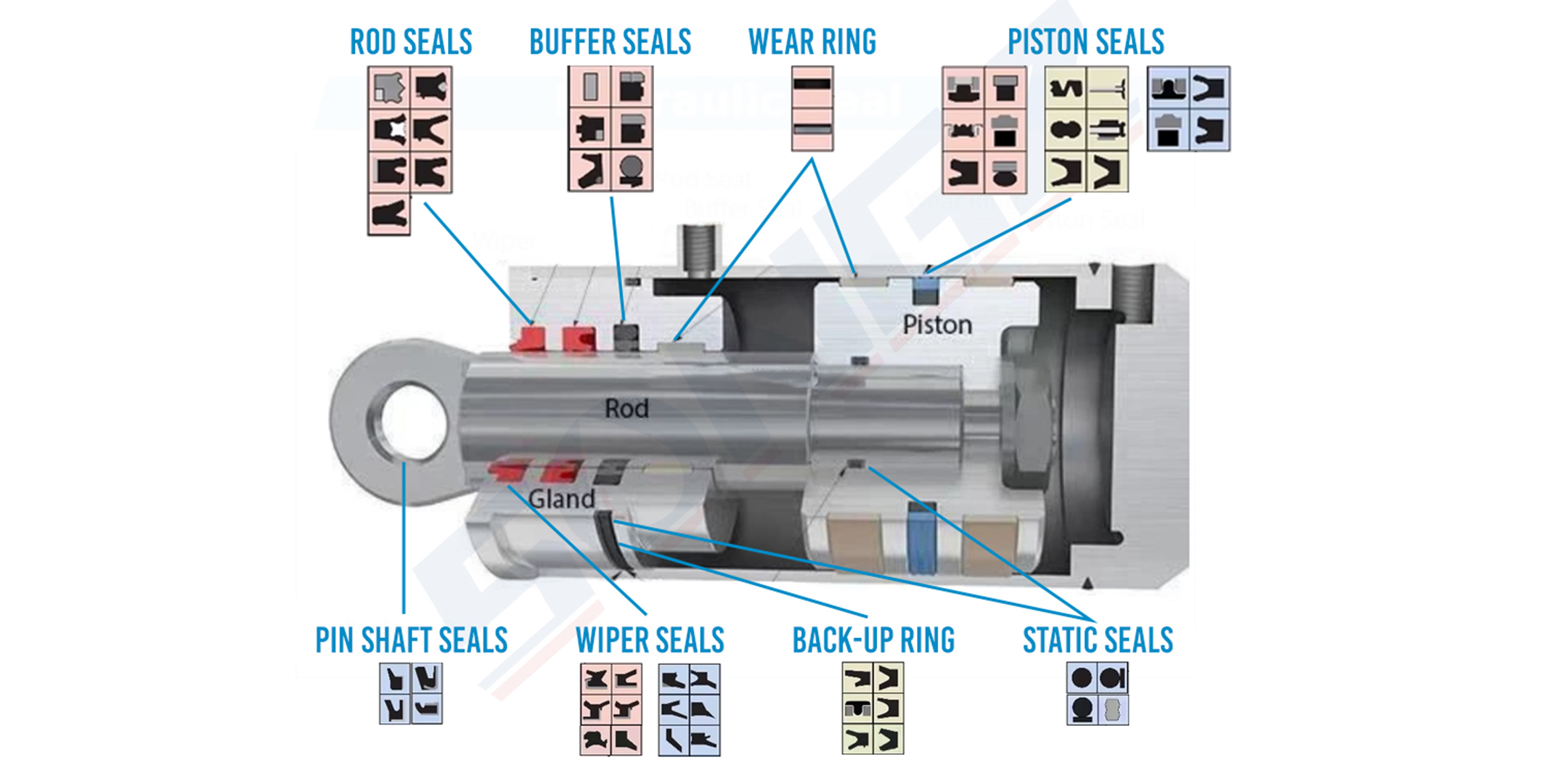

Excavator Hydraulic Cylinder seal kits are designed to match specialized seals for different sealing components, such as rod seals, piston seals, shaft seals, dust rings, guide rings, O-rings, etc.
Seal kits from SONGZ. are the perfect choice for any application that requires durability and excellent performance. We have a variety of accessories and components to choose from, so contact us today to explore our comprehensive selection of seal kits and their specialized parts. Contact us today, and let us get started on your project!
Summary of Advantages:
- Adequate inventory and spot goods, fast delivery
- You can send us your equipment model, and we can match complete excavator hydraulic repair seal kits according to your equipment or tailor it to your needs.
- We provide high-quality, high-performance excavator seal kits of various sizes suitable for various brands of excavators at highly competitive prices.
Typically made from polyurethane, alternative materials can be provided upon request to suit your specific needs.
Configuration information
Shaft rod seal. Common ones include V-rings, U-rings, and combination sealing rings. U-shaped ring: This type of sealing ring can be used alone, and can be used alone when the system working pressure does not exceed 20MPa. If used alone beyond 20MPa, a retaining ring is generally required. V-shaped ring: Its usage is similar to that of V-shaped rings used for piston, requiring the use of open grooves, and the guiding components are generally made of copper sleeves.
Dust ring. Common types include double acting dust rings and single acting dust rings.
Piston Seal. Common types include V-rings, U-rings, SPGO rings, and combination sealing rings, which include V-rings for piston, SPGO rings for piston, U-rings for piston, and combination sealing rings. V-shaped rings are generally used for heavy-duty hydraulic cylinders, with reliable sealing. They generally need to be installed in pairs back-to-back with open grooves. The guiding element of this type of sealing ring is usually copper sleeve. Both open and closed grooves can be used, and many of their guiding components use guiding belts. This sealing ring comes with a guiding element, and after using this sealing ring, no other guiding elements can be added.
Guide ring. Such as phenolic resin cloth guide sleeve, PTFE guide sleeve, POM guide ring, etc.
O-ring. Generally used as a static seal, if the working pressure exceeds 20MPa, it is generally necessary to add a polytetrafluoroethylene (PTFE) material retaining ring.
Specifications
| You can send us your device model, and we can match the complete excavator hydraulic repair seal kit according to your device, or customize it according to your needs. | ||||
| FOR KOMATSU | ||||
| PC100-6 | PC120-6 | PC130-5/6 | PC150-5 | PC200-5/6 |
| PC220-7/8 | PC300-5/6 | PC350-5/6 | PC400-7/8 | PC800-7 |
| FOR CATERPILLAR | ||||
| E305.5D/E | E307C/D | E311C | E312D/D2 | E319D |
| CAT200B | E320B/C/D | E320C | E336D/GC | E365B/C |
| FOR DOOSAN | ||||
| DX60 | DX80 | DX140LC | DX180LC | DX260LC-7 |
| DX480LC | DH60-7 | DH130-5 | DH225-7 | DH300-5/7 |
| FOR HIACHI | ||||
| EX120-2/3/5 | EX200-2/3 | EX270-5 | EX300-5 | EX400LC-5 |
| ZAX70-3 | ZAX120 | ZAX160 | ZAX200 | ZAX240-3 |
| FOR SUMITOMO | ||||
| SH75UU-3 | SH80-5 | SH100-1/2 | SH120A3 | SH130-5 |
| SH200A1/A3 | SH210-5 | SH220A3 | SH240-5 | SH350-3/5 |
| FOR KOBELCO | ||||
| SK60-5/8 | SK75-8 | SK100-3/5/6/SK115 | SK130/140-8 | SK200-5 |
| SK200/210-6E | SK230-6E | SK250-8 | SK350-8 | SK450-6/8 |
| FOR HYUNDAI | ||||
| R55/60-5/7 | R75/80-7 | R110-7 | R150-7/9 | R200/210-5 |
| R225-7/9 | R265-9 | R305-7/9 | R335-7/9 | R385-9/T |
| FOR KATO | ||||
| HD140 | HD450SEV/5/7 | HD700-5/7 | HD820-2/3/R | HD1430 |
| There are also VOLVO, SANY, LOVOL, XCMG, LONKING, XGMA, and LIUGONG，etc | ||||
