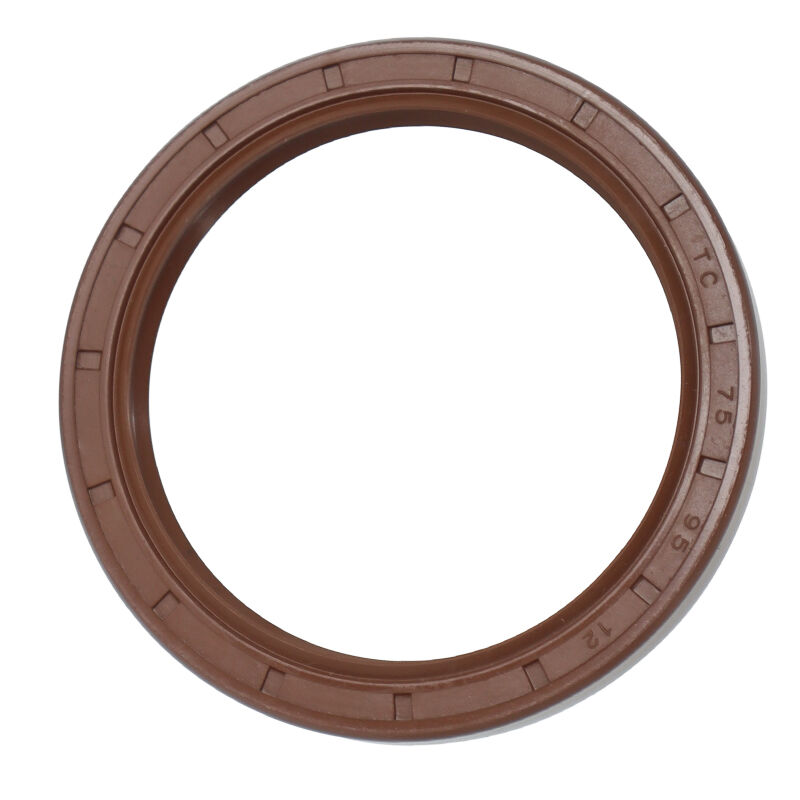

TC Type Oil Seal Wiper Lip

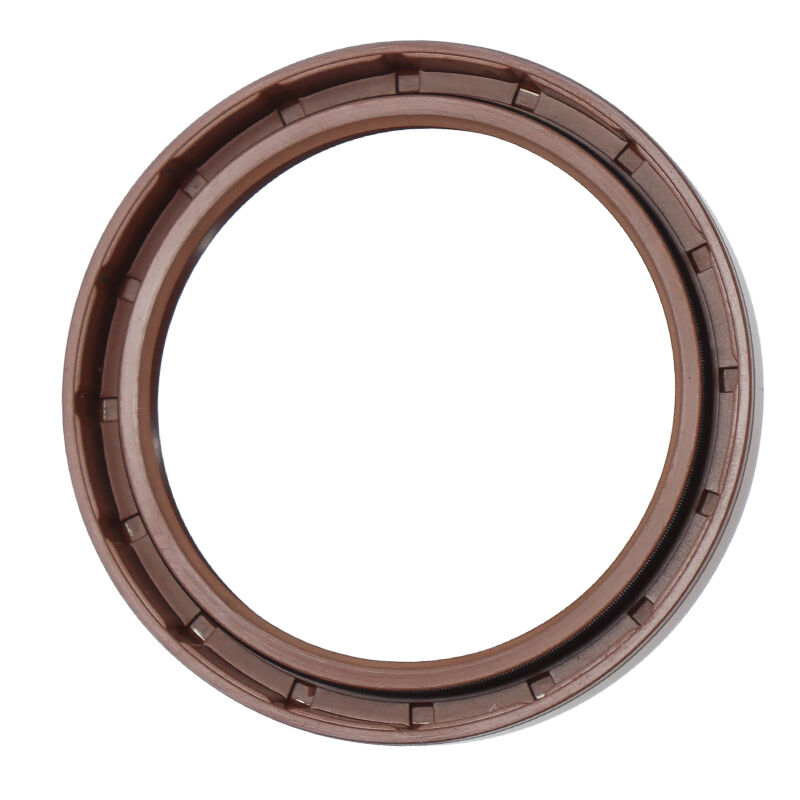

TC is a double lip oil seal, consist of a sealing lip and a wiper lip.
The additional dust-proof lip can prevent the entry of light to moderate dust and dirt.
Rubber can be made of NBR or FKM.
- Description
- Technical Information
- Specifications
- Recommended Products
Description

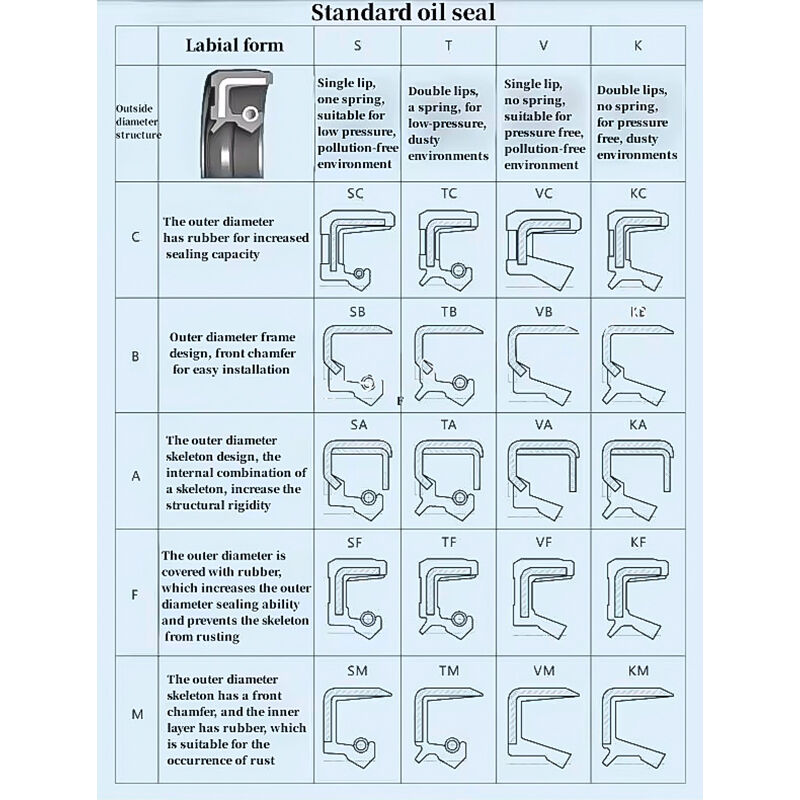

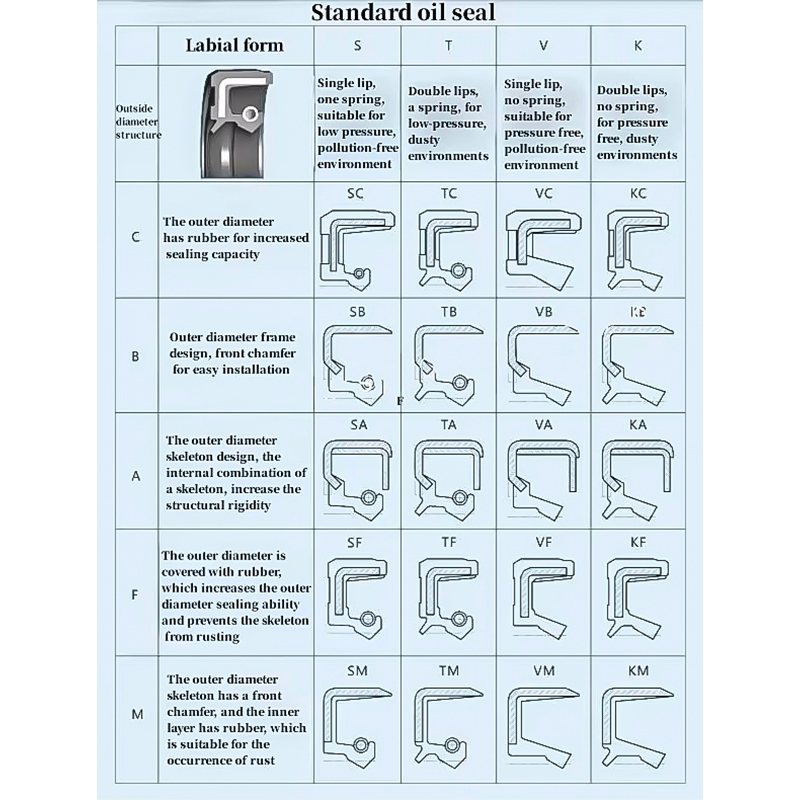

Structural Design:

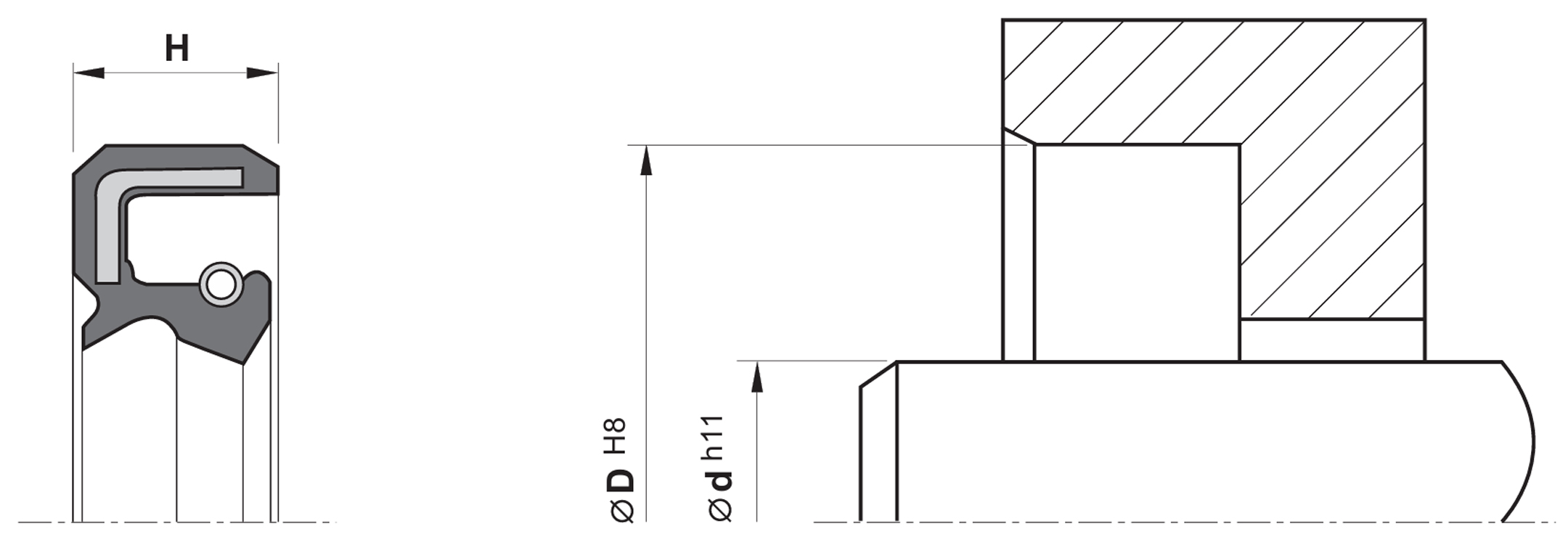

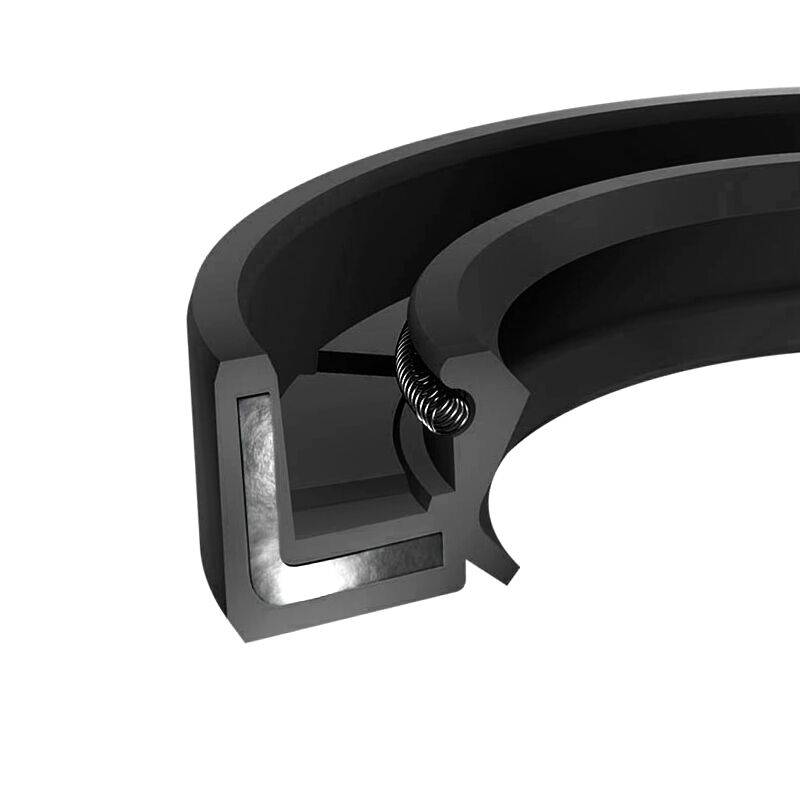

TC Oil Seal provides reliable sealing for bearing seat holes, even with increased hole roughness, thermal expansion, and separable bearing seats, thus also sealing low viscosity and gaseous media.
The spring-loaded sealing lip contributes to a quick response in handling dynamic runout and maintaining the sealing performance, even when sealing lip wear is excessive.
Sealing lip and flex section are optimally balanced to withstand both high dynamic runout and shaft-to-bore misalignment.
Summary of Advantages:
- Extremely sturdy static components
- Highly wear resistant
- Low Friction
- Compatibility with the media to be seals
Typically made from polyurethane, alternative materials can be provided upon request to suit your specific needs.
Technical Information
Technical Parameters:
|
Pressure |
0.5bar |
|
Material |
NBR/FKM + Metal |
|
Temperature(°C) |
-35℃~200℃ |
Specifications
|
Designation |
Outer Diameter |
Inner Diameter |
Housing groove width |
|
TC-14 |
14 |
6 |
4 |
|
TC-15 |
15 |
6 |
7 |
|
TC-16 |
16 |
8 |
5 |
|
TC-17 |
17 |
6 |
6 |
|
TC-18 |
18 |
8 |
5 |
|
TC-19 |
19 |
6 |
7 |
|
TC-20 |
20 |
10 |
6 |
|
TC-21 |
21 |
10 |
7 |
|
TC-22 |
22 |
12 |
7 |
|
TC-24 |
24 |
15 |
7 |
|
TC-25 |
25 |
10 |
5 |
|
TC-26 |
26 |
15 |
7 |
|
TC-27 |
27 |
13 |
7 |
|
TC-28 |
28 |
20 |
7 |
|
TC-30 |
30 |
15 |
10 |
|
TC-30 |
30 |
17 |
10 |
|
TC-30 |
30 |
18 |
8 |
|
TC-30 |
30 |
19 |
7 |
|
TC-30 |
30 |
20 |
10 |
|
TC-32 |
32 |
25 |
7 |
|
TC-33 |
33 |
19 |
7 |
|
TC-34 |
34 |
20 |
7 |
|
TC-35 |
35 |
25 |
6 |
|
TC-36 |
36 |
24 |
8 |
|
TC-37 |
37 |
25 |
10 |
|
TC-37 |
37 |
27 |
7 |
|
TC-38 |
38 |
20 |
10 |
|
TC-40 |
40 |
16 |
7 |
|
TC-41.25 |
41.25 |
25 |
6 |
|
TC-42 |
42 |
20 |
8 |
|
TC-43 |
43 |
25 |
10 |
|
TC-44 |
44 |
32 |
10 |
|
TC-45 |
45 |
22 |
10 |
|
TC-46 |
46 |
36 |
7 |
|
TC-47 |
47 |
22 |
8 |
|
TC-48 |
48 |
30 |
10 |
|
TC-50 |
50 |
40 |
7 |
|
TC-52 |
52 |
22 |
7 |
|
TC-54 |
54 |
38 |
10 |
|
TC-55 |
55 |
35 |
12 |
|
TC-57 |
57 |
42 |
7 |
|
TC-58 |
58 |
32 |
10 |
|
TC-60 |
60 |
32 |
12 |
|
TC-62 |
62 |
30 |
8 |
|
TC-65 |
65 |
30 |
8 |
|
TC-70 |
70 |
60 |
12 |
|
TC-72 |
72 |
30 |
8 |
|
TC-75 |
75 |
60 |
10 |
|
TC-76 |
76 |
58 |
10 |
|
TC-78 |
78 |
60 |
10 |
|
TC-80 |
80 |
40 |
8 |
|
TC-82 |
82 |
62 |
10 |
|
TC-85 |
85 |
45 |
10 |
|
TC-88 |
88 |
65 |
12 |
|
TC-90 |
90 |
55 |
6 |
|
TC-92 |
92 |
70 |
8 |
|
TC-95 |
95 |
65 |
8 |
|
TC-98 |
98 |
72 |
10 |
|
TC-100 |
100 |
45 |
12 |
|
TC-105 |
105 |
90 |
8 |
|
TC-108 |
108 |
80 |
9 |
|
TC-110 |
110 |
65 |
13 |
|
TC-115 |
115 |
80 |
13 |
|
TC-120 |
120 |
80 |
13 |
|
TC-125 |
125 |
90 |
12 |
|
TC-128 |
128 |
110 |
9 |
|
TC-130 |
130 |
90 |
10 |
|
TC-135 |
135 |
95 |
12 |
|
TC-140 |
140 |
100 |
15 |
|
TC-145 |
145 |
105 |
12 |
|
TC-150 |
150 |
120 |
15 |
|
TC-160 |
160 |
130 |
14 |
|
TC-165 |
165 |
130 |
12 |
|
TC-170 |
170 |
145 |
12 |
|
TC-175 |
175 |
140 |
15 |
|
TC-180 |
180 |
145 |
12 |
|
TC-190 |
190 |
170 |
12 |
|
TC-200 |
200 |
175 |
15 |
|
TC-205 |
205 |
170 |
15 |
|
TC-210 |
210 |
180 |
13 |
|
TC-215 |
215 |
185 |
15 |
|
TC-220 |
220 |
190 |
15 |
|
TC-225 |
225 |
200 |
15 |
|
TC-230 |
230 |
180 |
24 |
|
TC-240 |
240 |
200 |
16 |
|
TC-245 |
245 |
210 |
18 |
|
TC-250 |
250 |
220 |
15 |
|
TC-255 |
255 |
235 |
18 |
|
TC-260 |
260 |
240 |
18 |
|
TC-265 |
265 |
235 |
15 |
|
TC-270 |
270 |
240 |
15 |
|
TC-275 |
275 |
240 |
16 |
|
TC-280 |
280 |
240 |
15 |
|
TC-285 |
285 |
250 |
16 |
|
TC-290 |
290 |
250 |
15 |
|
TC-300 |
300 |
260 |
18 |
|
TC-310 |
310 |
275 |
15 |
|
TC-320 |
320 |
260 |
20 |
|
TC-330 |
330 |
290 |
18 |
|
TC-340 |
340 |
300 |
15 |
|
TC-350 |
350 |
310 |
18 |
|
TC-360 |
360 |
320 |
18 |
|
TC-370 |
370 |
330 |
20 |
|
TC-380 |
380 |
340 |
20 |
|
TC-390 |
390 |
350 |
20 |
|
TC-400 |
400 |
360 |
20 |
|
TC-410 |
410 |
370 |
20 |
|
TC-420 |
420 |
380 |
20 |
|
TC-430 |
430 |
390 |
20 |
|
TC-440 |
440 |
400 |
20 |
|
TC-450 |
450 |
400 |
20 |
|
TC-460 |
460 |
420 |
20 |
|
TC-470 |
470 |
420 |
22 |
|
TC-480 |
480 |
440 |
20 |
|
TC-490 |
490 |
450 |
20 |
|
TC-500 |
500 |
450 |
25 |
|
TC-520 |
520 |
470 |
20 |
|
TC-530 |
530 |
470 |
25 |
|
TC-540 |
540 |
500 |
20 |
|
TC-550 |
550 |
500 |
25 |
|
TC-630 |
630 |
580 |
25 |
|
TC-680 |
680 |
620 |
25 |
|
TC-720 |
720 |
670 |
25 |
