GRS Rotary Seal Roto Seal

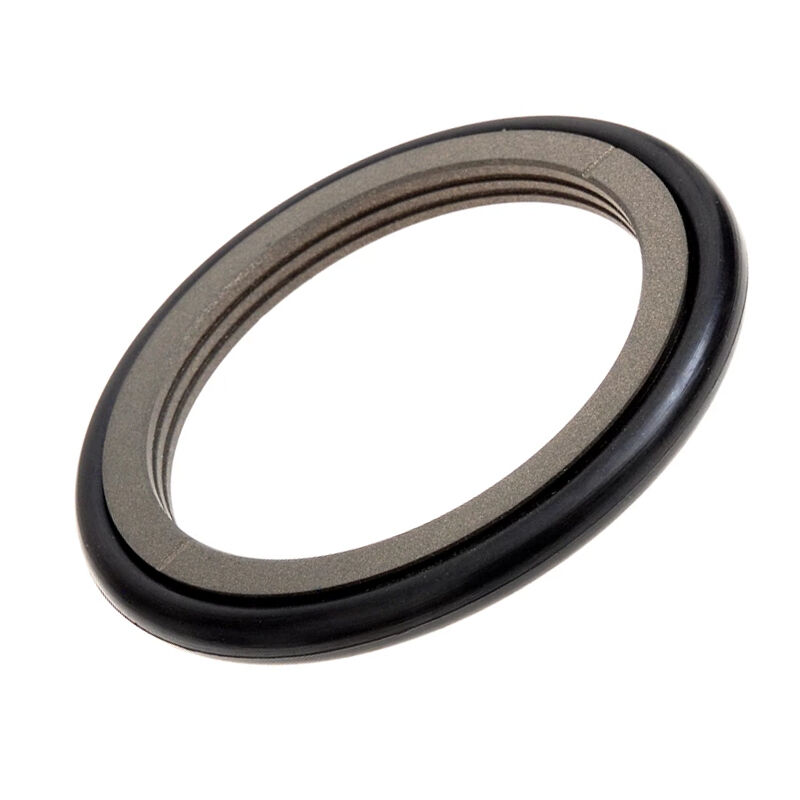

GRS roto seals are single or double acting rod rotary seals composed of a filled PTFE grooved friction ring and a pre-tightened rubber O-Ring.
It is specifically designed for reciprocating motion and provides effective sealing performance.
- Description
- Technical Information
- Specifications
- Recommended Products
Description

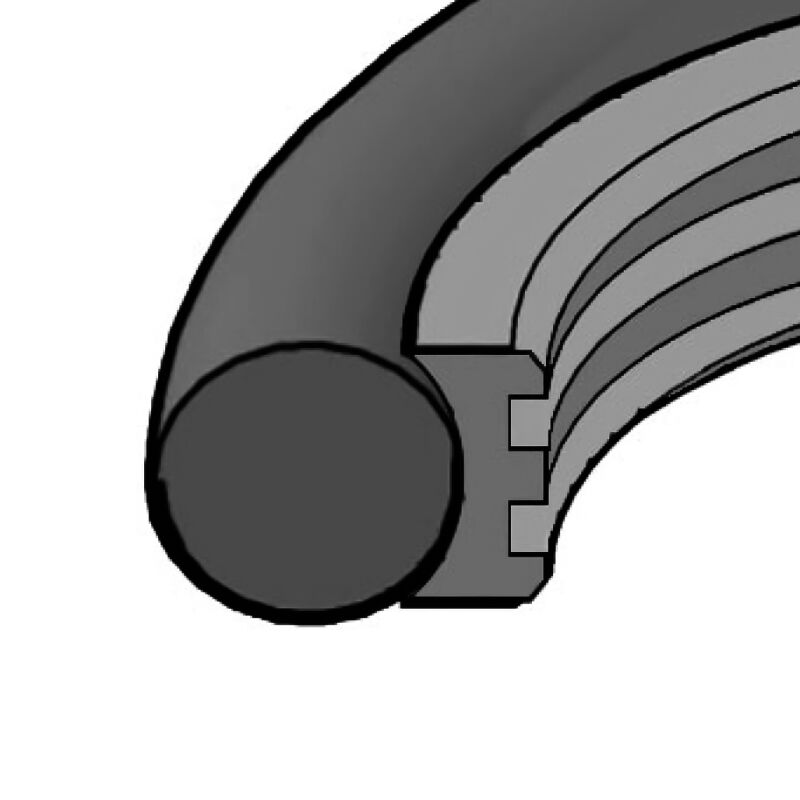

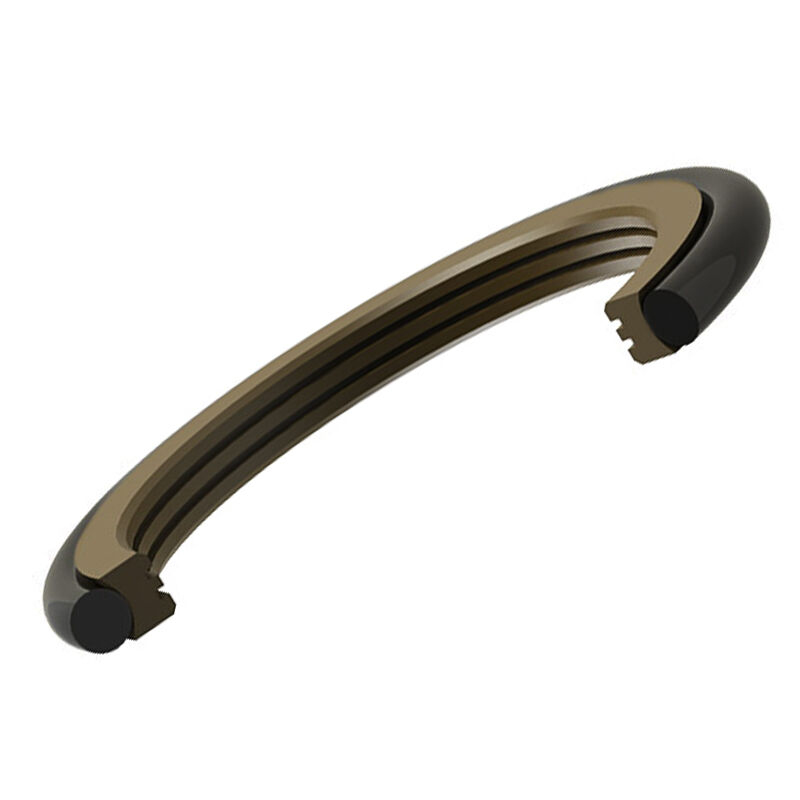

Structural Design:
The GRS is a double-acting internal sealing rotary glide ring for rotary joints that make rotating or swinging motion.

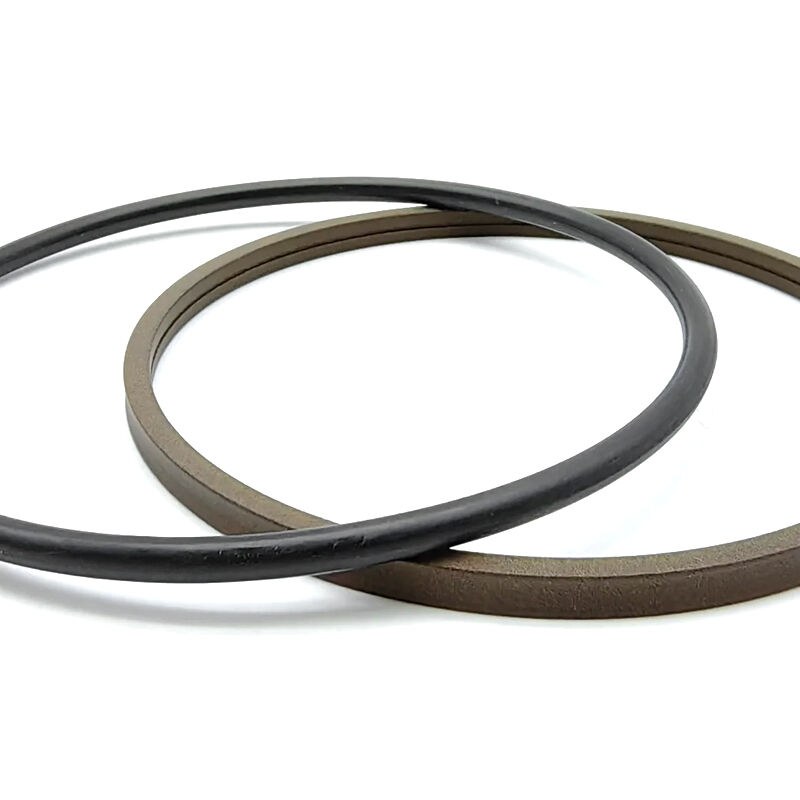

This consists of one composite PTFE sealing ring and an elastomeric O-ring as a pre-load element.
It is suitable for applications where the pressure alternate from one side of the seal to the other side.
Summary of Advantages:
- Low friction coefficient; no stick-slip effect on starts up
- Excellent abrasion and extrusion resistance
- The grooves provide an integrated lubrication system
- Excellent dimensional stability
Typically made from polyurethane, alternative materials can be provided upon request to suit your specific needs.
Technical Information
Technical Parameters:
|
Pressure |
30MPa |
|
Speed |
1m/s |
|
Material |
NBR/FKM + PTFE |
|
Temperature(°C) |
-30℃~200℃ |

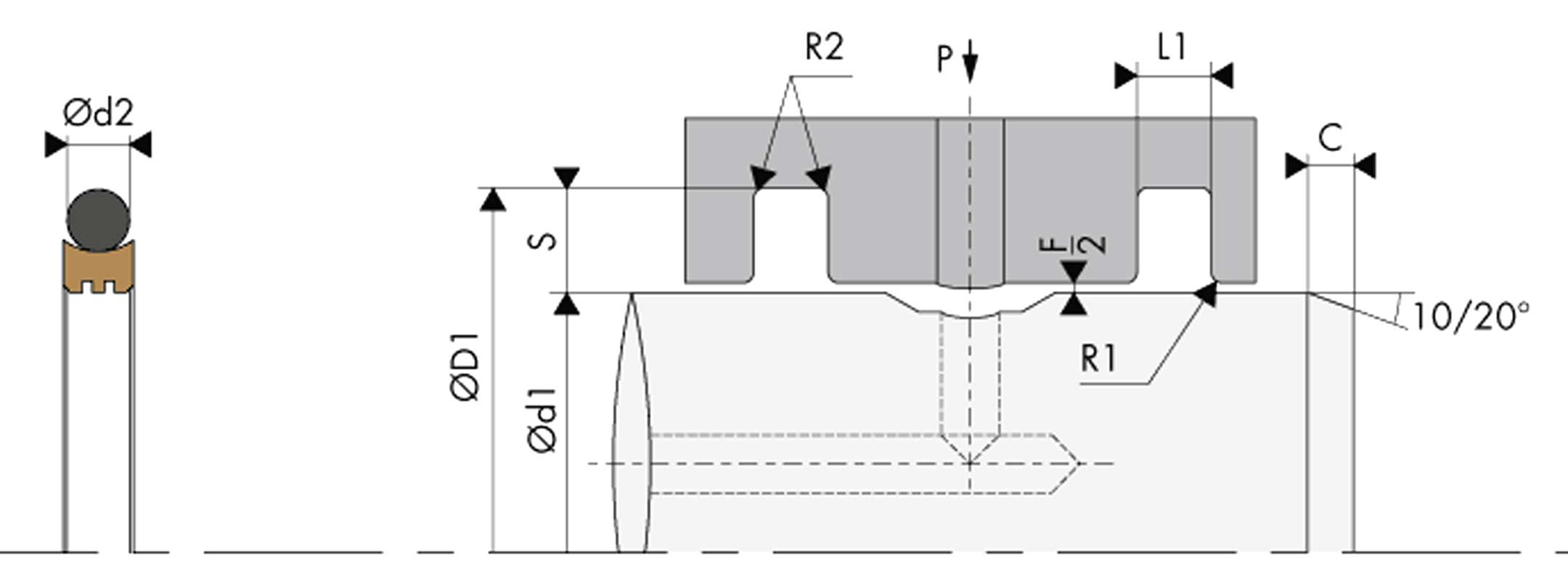

Specifications
|
Designation |
Outer Diameter |
Inner Diameter |
Housing groove width |
|
GRS-6 |
10.9 |
6 |
2.2 |
|
GRS-8 |
12.9 |
8 |
2.2 |
|
GRS-10 |
14.9 |
10 |
2.2 |
|
GRS-12 |
16.9 |
12 |
2.2 |
|
GRS-14 |
18.9 |
14 |
2.2 |
|
GRS-15 |
19.9 |
15 |
2.2 |
|
GRS-16 |
20.9 |
16 |
2.2 |
|
GRS-18 |
22.9 |
18 |
2.2 |
|
GRS-20 |
27.5 |
20 |
3.2 |
|
GRS-22 |
29.5 |
22 |
3.2 |
|
GRS-25 |
32.5 |
25 |
3.2 |
|
GRS-26 |
33.5 |
26 |
3.2 |
|
GRS-28 |
35.5 |
28 |
3.2 |
|
GRS-30 |
37.5 |
30 |
3.2 |
|
GRS-32 |
39.5 |
32 |
3.2 |
|
GRS-35 |
42.5 |
35 |
3.2 |
|
GRS-40 |
51 |
40 |
4.2 |
|
GRS-45 |
56 |
45 |
4.2 |
|
GRS-50 |
61 |
50 |
4.2 |
|
GRS-55 |
66 |
55 |
4.2 |
|
GRS-60 |
71 |
60 |
4.2 |
|
GRS-63 |
74 |
63 |
4.2 |
|
GRS-65 |
76 |
65 |
4.2 |
|
GRS-70 |
81 |
70 |
4.2 |
|
GRS-75 |
86 |
75 |
4.2 |
|
GRS-78 |
89 |
78 |
4.2 |
|
GRS-80 |
91 |
80 |
4.2 |
|
GRS-85 |
96 |
85 |
4.2 |
|
GRS-90 |
101 |
90 |
4.2 |
|
GRS-95 |
106 |
95 |
4.2 |
|
GRS-100 |
111 |
100 |
4.2 |
|
GRS-105 |
116 |
105 |
4.2 |
|
GRS-110 |
121 |
110 |
4.2 |
|
GRS-115 |
126 |
115 |
4.2 |
|
GRS-120 |
131 |
120 |
4.2 |
|
GRS-125 |
136 |
125 |
4.2 |
|
GRS-130 |
141 |
130 |
4.2 |
|
GRS-135 |
146 |
135 |
4.2 |
|
GRS-140 |
151 |
140 |
4.2 |
|
GRS-145 |
156 |
145 |
4.2 |
|
GRS-150 |
161 |
150 |
4.2 |
|
GRS-155 |
166 |
155 |
4.2 |
|
GRS-160 |
171 |
160 |
4.2 |
|
GRS-170 |
181 |
170 |
4.2 |
|
GRS-180 |
191 |
180 |
4.2 |
|
GRS-190 |
201 |
190 |
4.2 |
|
GRS-200 |
215.5 |
200 |
6.3 |
|
GRS-210 |
225.5 |
210 |
6.3 |
|
GRS-220 |
235.5 |
220 |
6.3 |
|
GRS-240 |
255.5 |
240 |
6.3 |
|
GRS-250 |
265.5 |
250 |
6.3 |
|
GRS-260 |
281 |
260 |
8.1 |
|
GRS-270 |
291 |
270 |
8.1 |
|
GRS-280 |
301 |
280 |
8.1 |
