OUY U-ring Piston Seal

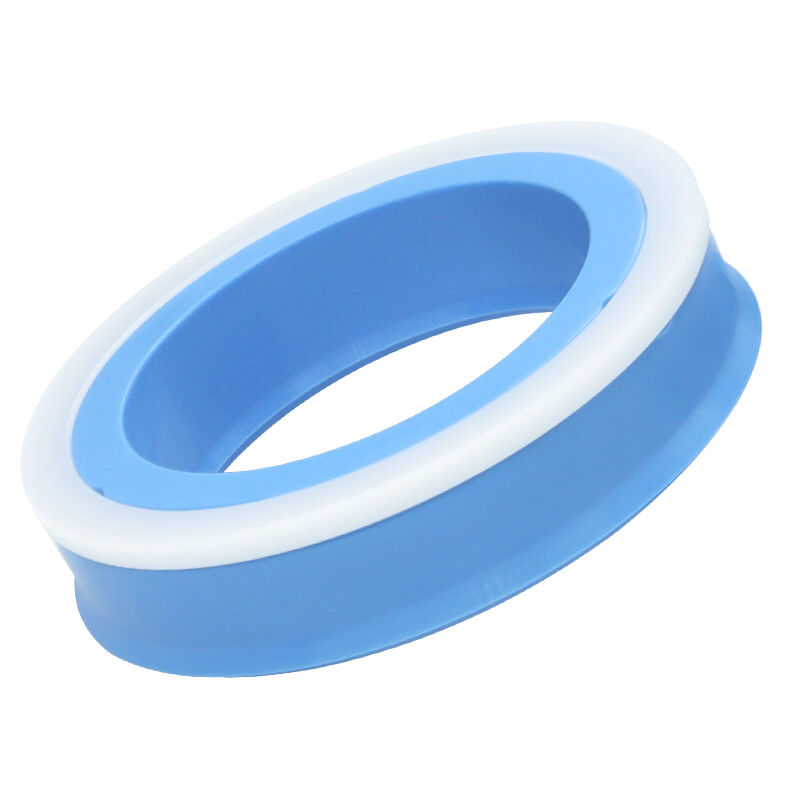

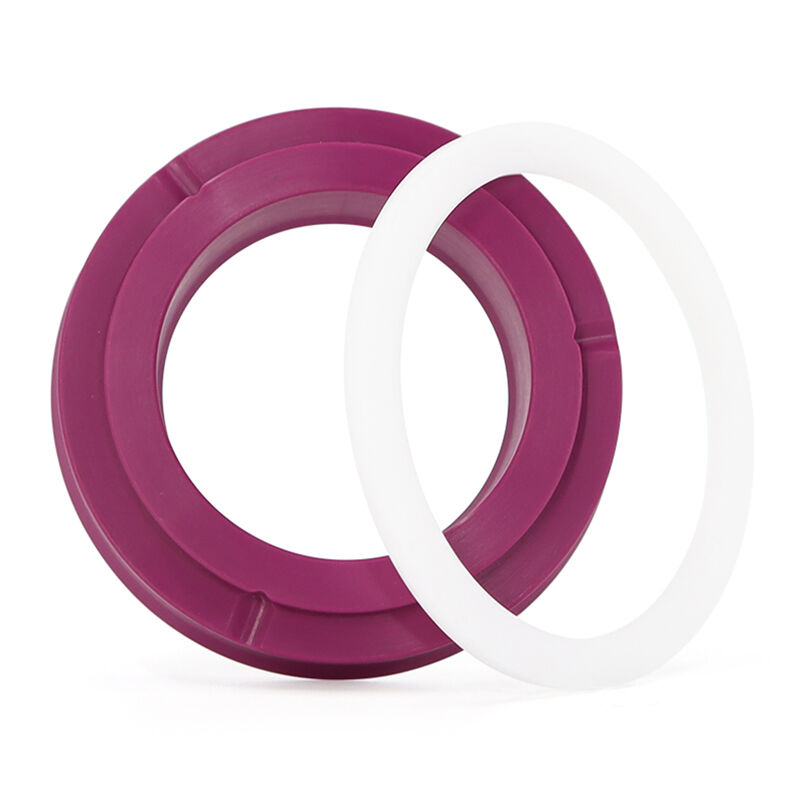

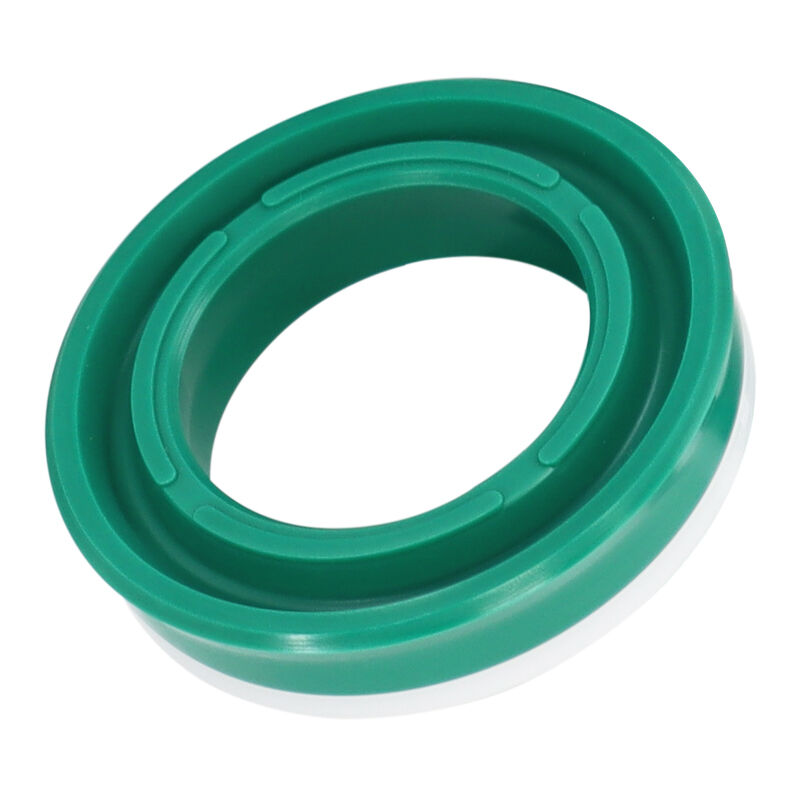

OUY single acting piston seal consists of thermoplastic polyurethane ring, which avoids hydrodynamic pressure thanks to the notched design and thermoplastic POM backup ring
- Description
- Technical Information
- Specifications
- Recommended Products
Description

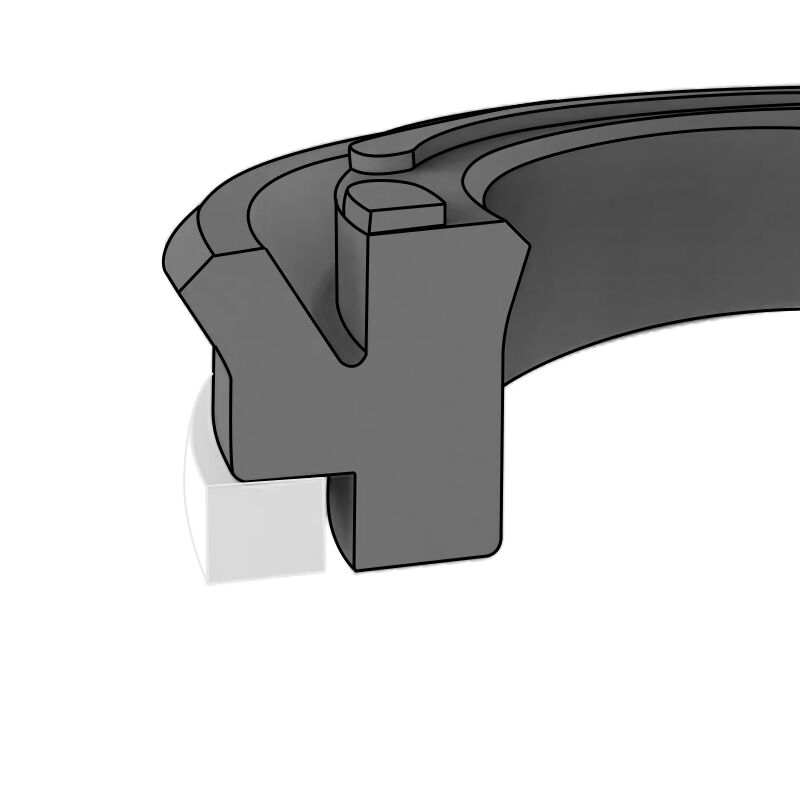

Structural Design:
OUY is an asymmetric piston seal designed to offer effective bore sealing in a wide variety of applications.
The external dynamic lip is shorter and stronger, providing superior sealing and compression deformation characteristics compared to traditional U-shaped rings.
Summary of Advantages:
- Good dynamic and static sealing
- Relief grooves against dynamic pressure
- High extrusion resistance
- Thin oil film and very good locking feature
Typically made from polyurethane, alternative materials can be provided upon request to suit your specific needs.
Technical Information
Technical Parameters:
|
Pressure |
500bar |
|
Speed |
0.5m/s |
|
Material |
PU + Acetal |
|
Temperature(°C) |
-40℃~100℃ |
Specifications
|

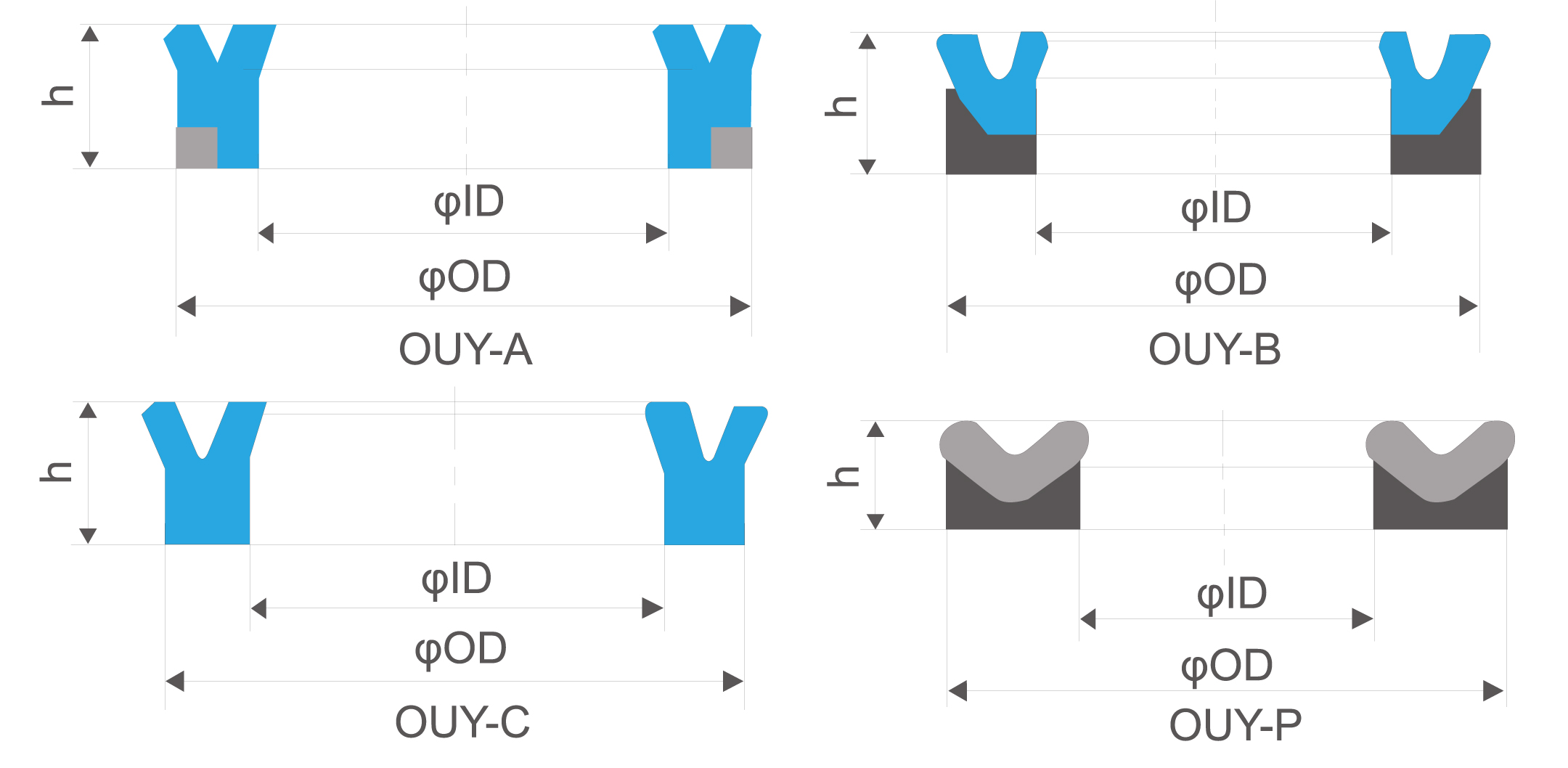

Designation |
Outer Diameter |
Inner Diameter |
Housing groove width |
|
OUY-40 |
40 |
25 |
12 |
|
OUY-45 |
45 |
30 |
12 |
|
OUY-50 |
50 |
35 |
12 |
|
OUY-60-1 |
60 |
35 |
12 |
|
OUY-60-2 |
60 |
45 |
12 |
|
OUY-70-1 |
70 |
40 |
12 |
|
OUY-70-2 |
70 |
55 |
12 |
|
OUY-70-3 |
70 |
45 |
15.5 |
|
OUY-75 |
75 |
60 |
12 |
|
OUY-80-1 |
80 |
64 |
12 |
|
OUY-80-2 |
80 |
55 |
18 |
|
OUY-80-3 |
80 |
90 |
8 |
|
OUY-85 |
85 |
70 |
12 |
|
OUY-90-1 |
90 |
70 |
12 |
|
OUY-90-2 |
90 |
65 |
18 |
|
OUY-90-3 |
90 |
110 |
12 |
|
OUY-90-4 |
90 |
105 |
10 |
|
OUY-100 |
100 |
75 |
18 |
