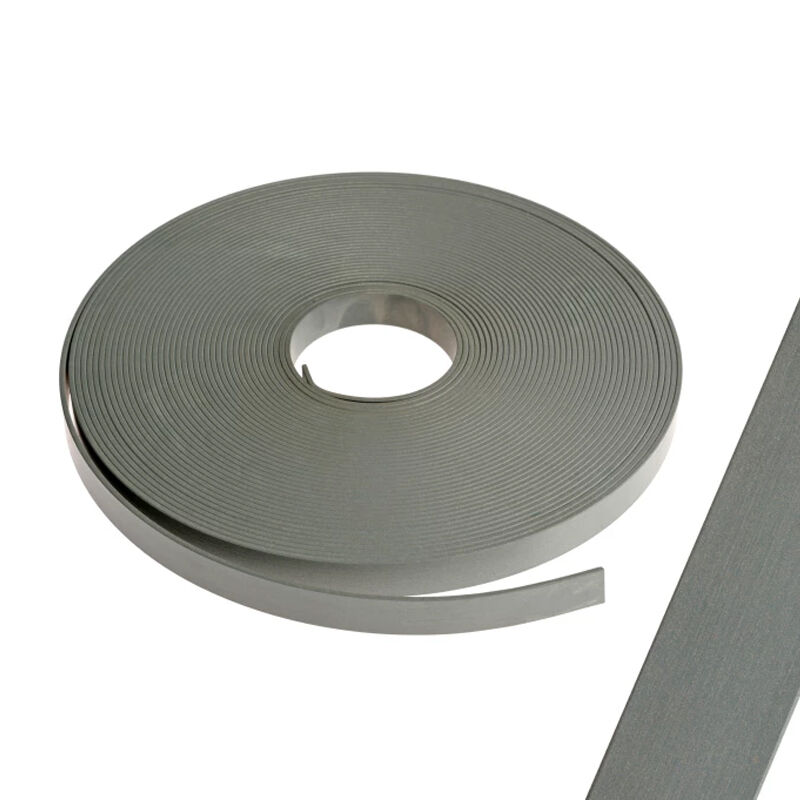

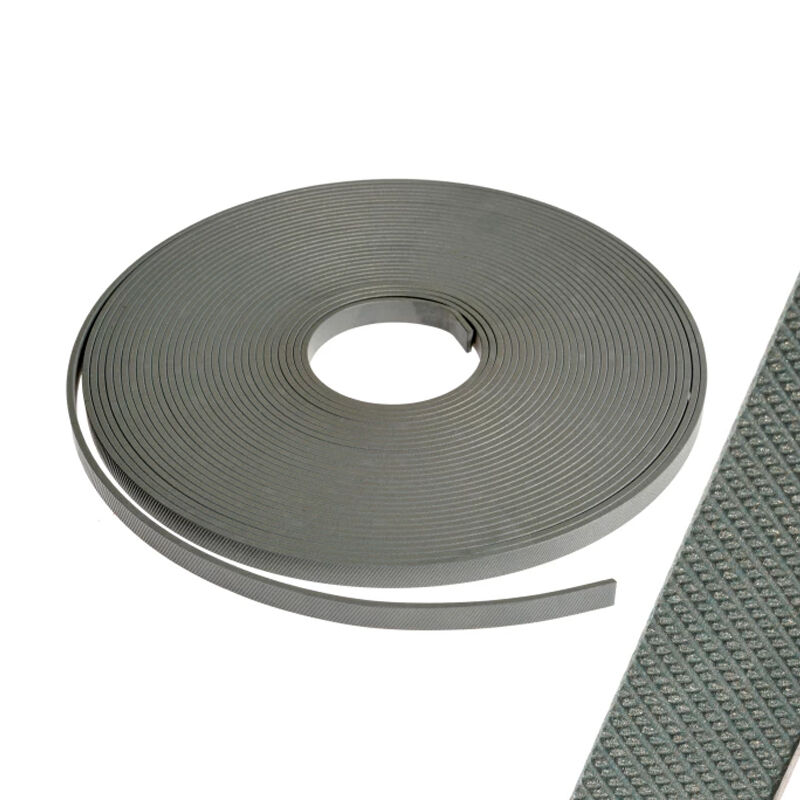

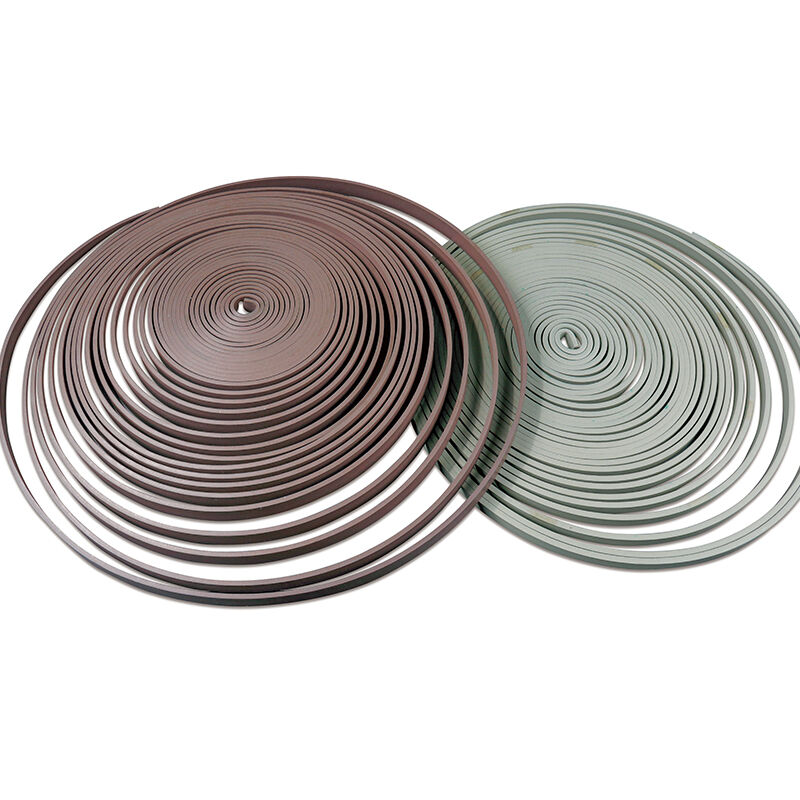

Guide Strips RYT Wear Ring
PTFE guide strips (bearing strip) RYT have a strong load-bearing capacity. They must be installed on oil cylinders with large partial loads, such as various heavy-duty, high-pressure, and large oil cylinders.
- Description
- Technical Information
- Specifications
- Recommended Products
Description

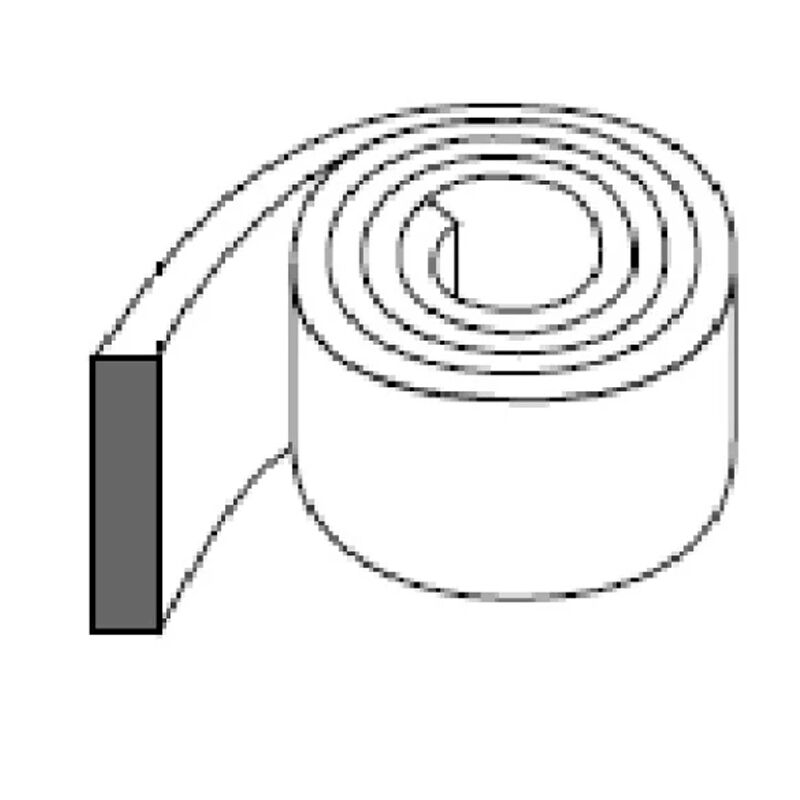

Structural Design:
RYT is a bronze filled PTFE wear-resistant ring (bearing strip).
It can prevent piston scratches and improve the durability of seals, eliminating crawling.

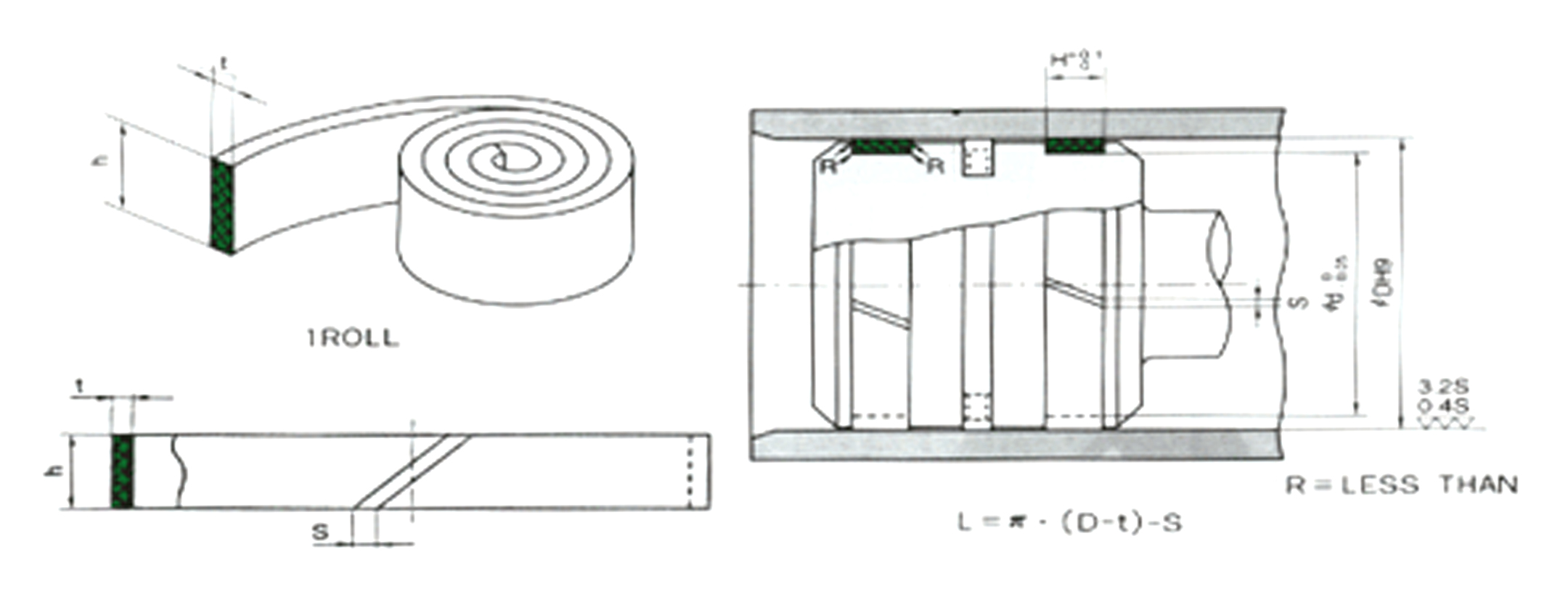

RYT can be cut according to the cylinder diameter.
The piston and piston rod in the radial support cylinder. It has excellent vibration damping performance and is easy and safe to install.
Summary of Advantages:
- Can be directly cut according to the diameter of the cylinder
- Which has excellent wear resistance and sealing ability
- Good stability and good dry running characteristics
- It can accurately guide and absorb vibration force and radial force
Typically made from polyurethane, alternative materials can be provided upon request to suit your specific needs.
Technical Information
Technical Parameters:
|
Hardness |
90-95 Shore A |
|
Speed |
5m/s |
|
Material |
Filled PTFE |
|
Temperature(°C) |
-45℃~120℃ |
Specifications
|
Designation |
Outer Diameter |
Inner Diameter |
Housing groove width |
|
RYT-45*50*6 |
50 |
45 |
6 |
|
RYT-50*55*6 |
55 |
50 |
6 |
|
RYT-55*60*6 |
60 |
55 |
6 |
|
RYT-60*65*6 |
65 |
60 |
6 |
|
RYT-65*70*6 |
70 |
65 |
6 |
|
RYT-70*75*6 |
75 |
70 |
6 |
|
RYT-75*80*6 |
80 |
75 |
6 |
|
RYT-80*85*6 |
85 |
80 |
6 |
|
RYT-85*90*6 |
90 |
85 |
6 |
|
RYT-90*95*6 |
95 |
90 |
6 |
|
RYT-95*100*6 |
100 |
95 |
6 |
|
RYT-100*105*6 |
105 |
100 |
6 |
|
RYT-80*85*7.9 |
85 |
80 |
7.9 |
|
RYT-85*90*7.9 |
90 |
85 |
7.9 |
|
RYT-90*95*7.9 |
95 |
90 |
7.9 |
|
RYT-95*100*7.9 |
100 |
95 |
7.9 |
|
RYT-100*105*7.9 |
105 |
100 |
7.9 |
|
RYT-105*110*7.9 |
110 |
105 |
7.9 |
|
RYT-110*115*7.9 |
115 |
110 |
7.9 |
|
RYT-120*125*7.9 |
125 |
120 |
7.9 |
|
RYT-135*140*7.9 |
140 |
135 |
7.9 |
|
RYT-35*40*9.5 |
40 |
35 |
9.5 |
|
RYT-45*50*9.5 |
50 |
45 |
9.5 |
|
RYT-55*60*9.5 |
60 |
55 |
9.5 |
|
RYT-58*63*9.5 |
63 |
58 |
9.5 |
|
RYT-60*65*9.5 |
65 |
60 |
9.5 |
|
RYT-65*70*9.5 |
70 |
65 |
9.5 |
|
RYT-70*75*9.5 |
75 |
70 |
9.5 |
|
RYT-75*80*9.5 |
80 |
75 |
9.5 |
|
RYT-80*85*9.5 |
85 |
80 |
9.5 |
|
RYT-85*90*9.5 |
90 |
85 |
9.5 |
|
RYT-90*95*9.5 |
95 |
90 |
9.5 |
|
RYT-95*100*9.5 |
100 |
95 |
9.5 |
|
RYT-100*105*9.5 |
105 |
100 |
9.5 |
|
RYT-105*110*9.5 |
110 |
105 |
9.5 |
|
RYT-110*115*9.5 |
115 |
110 |
9.5 |
|
RYT-115*120*9.5 |
120 |
115 |
9.5 |
|
RYT-120*125*9.5 |
125 |
120 |
9.5 |
|
RYT-125*130*9.5 |
130 |
125 |
9.5 |
|
RYT-130*135*9.5 |
135 |
130 |
9.5 |
|
RYT-135*140*9.5 |
140 |
135 |
9.5 |
|
RYT-140*145*9.5 |
145 |
140 |
9.5 |
|
RYT-145*150*9.5 |
150 |
145 |
9.5 |
|
RYT-150*155*9.5 |
155 |
150 |
9.5 |
|
RYT-155*160*9.5 |
160 |
155 |
9.5 |
|
RYT-45*50*15 |
50 |
45 |
15 |
|
RYT-50*55*15 |
55 |
50 |
15 |
|
RYT-55*60*15 |
60 |
55 |
15 |
|
RYT-60*65*15 |
65 |
60 |
15 |
|
RYT-65*70*15 |
70 |
65 |
15 |
|
RYT-70*75*15 |
75 |
70 |
15 |
|
RYT-75*80*15 |
80 |
75 |
15 |
|
RYT-80*85*15 |
85 |
80 |
15 |
|
RYT-85*90*15 |
90 |
85 |
15 |
|
RYT-90*95*15 |
95 |
90 |
15 |
|
RYT-95*100*15 |
100 |
95 |
15 |
|
RYT-100*105*15 |
105 |
100 |
15 |
|
RYT-105*110*15 |
110 |
105 |
15 |
|
RYT-110*115*15 |
115 |
110 |
15 |
|
RYT-115*120*15 |
120 |
115 |
15 |
|
RYT-120*125*15 |
125 |
120 |
15 |
|
RYT-125*130*15 |
130 |
125 |
15 |
|
RYT-130*135*15 |
135 |
130 |
15 |
|
RYT-135*140*15 |
140 |
135 |
15 |
|
RYT-155*160*15 |
160 |
155 |
15 |
|
RYT-175*180*15 |
180 |
175 |
15 |
|
RYT-70*75*20 |
75 |
70 |
20 |
|
RYT-140*145*20 |
145 |
140 |
20 |
|
RYT-150*155*20 |
155 |
150 |
20 |
