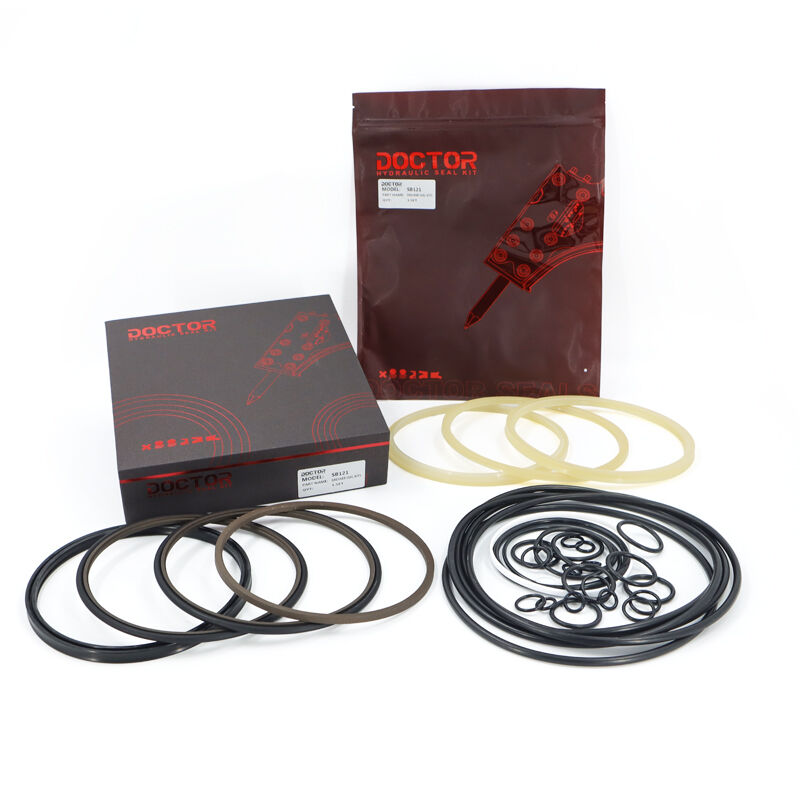

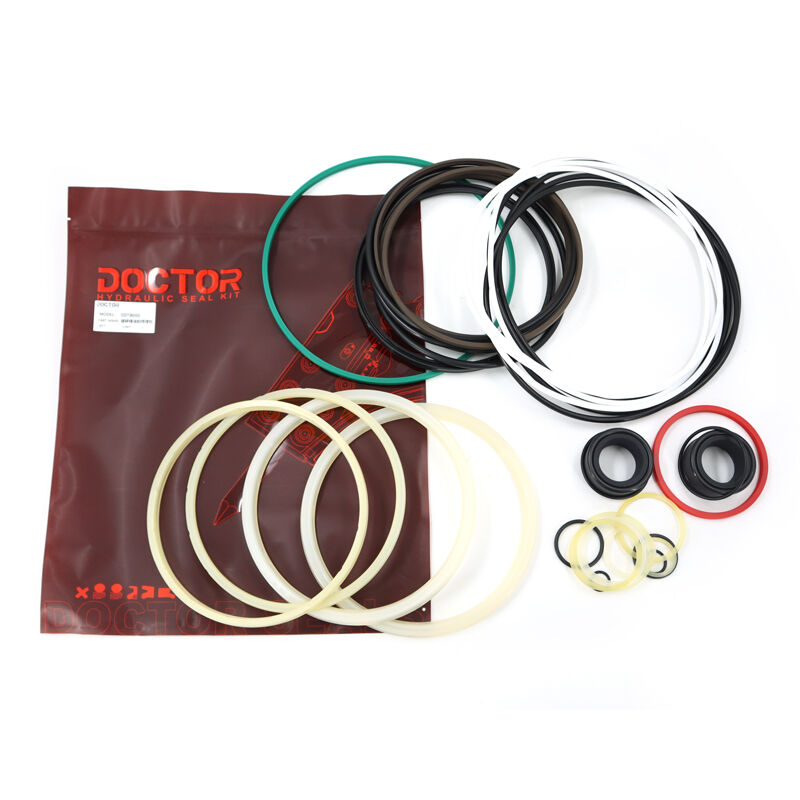

DOCTOR Hydraulic Breaker seal kits Rock Hammer Breaker Seal Kit
DOCTOR Breaker seal kits is configured with high elasticity seals and reinforced sealing boring cylinders.
Rod seal U-shaped sealing lip thickening process, upgraded construction of root inner chamfer.
- Description
- Configuration information
- Specifications
- Recommended Products
Description
Structural Design:
DOCTOR Seal has upgraded the traditional Rod seal structure by using new high-precision molds and designing a new maintainability seal design.
Upgraded construction of inner chamfer at the root: adaptive design, dynamically adapting the inner chamfer at 45 °~60 ° according to different product sizes, breaking down 90% of the inner extrusion force and significantly reducing root stress damage.

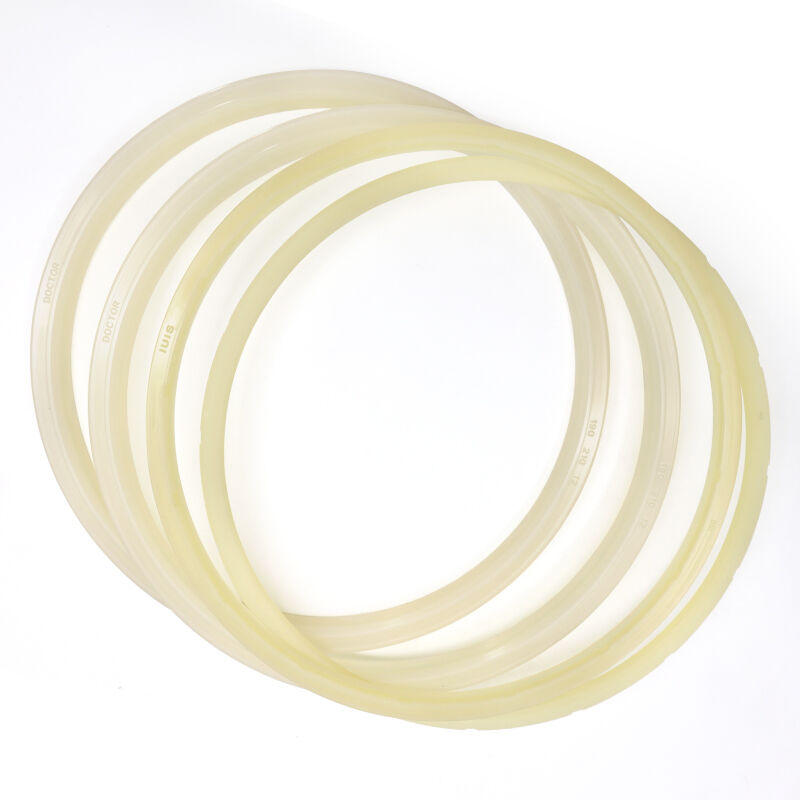

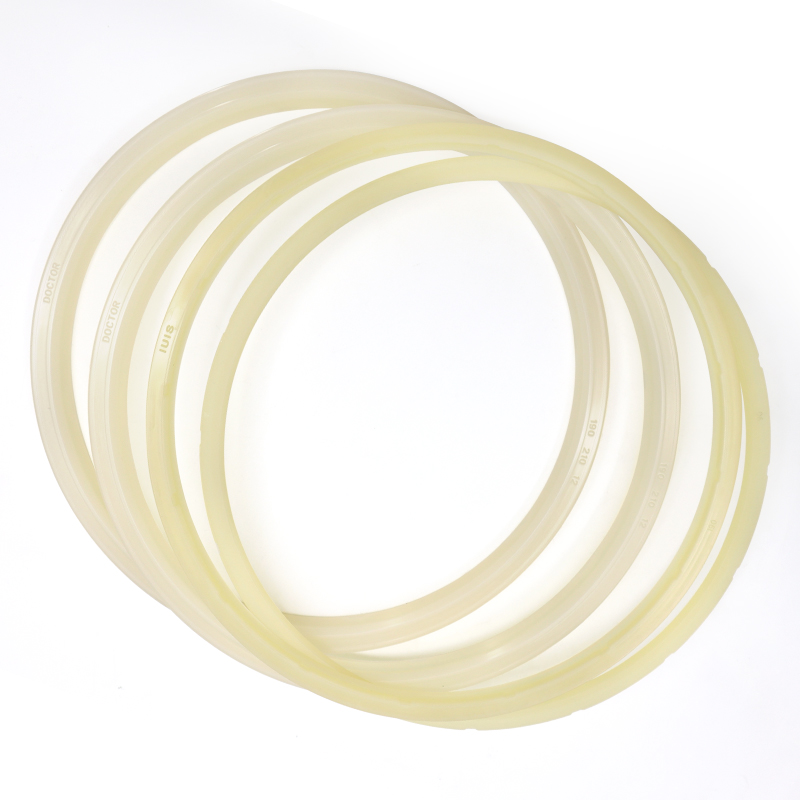

U-shaped sealing lip enlargement and thickening: The widened lip increases the interference fit between the rod, thereby enhancing the sealing performance and greatly improving the wear resistance.

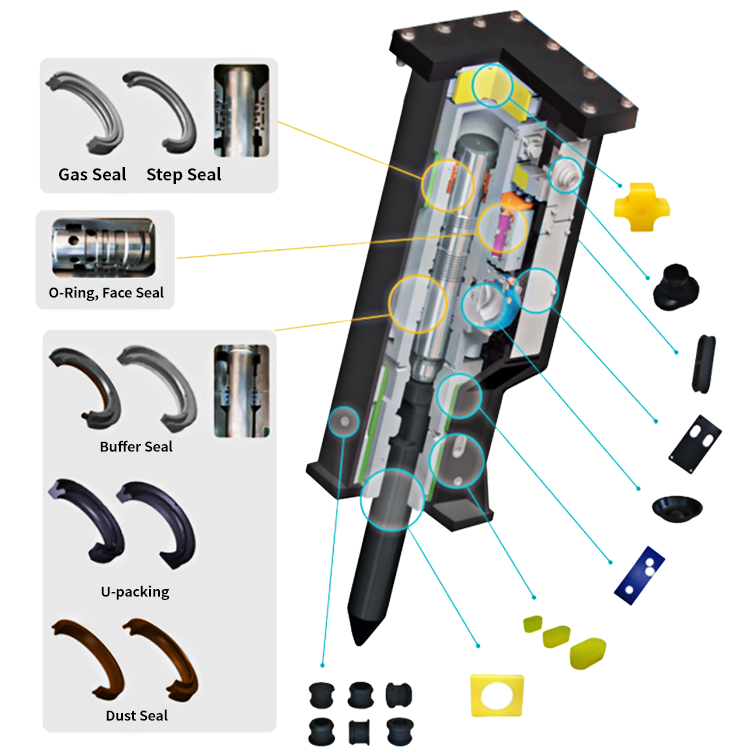

These seal kits play a vital role in preventing leaks and ensuring the smooth operation of hydraulic breakers. Neglecting maintenance can lead to costly repairs and downtime, making it essential to prioritize regular upkeep.
Summary of Advantages:
- Outstanding performance at high temperature
- Low permanent compression set
- Outstanding oil resistance and chemical resistance
- Superior wear resistance
Typically made from polyurethane, alternative materials can be provided upon request to suit your specific needs.
Configuration information
|
Hardness |
70 - 90 Shores A |
|
Material |
PU、NBR、HNBR、Rubber、PTFE |
|
Temperature |
-40℃~150℃ |
Specifications
| You can provide your equipment model, and we can match a complete breaker hammer repair seal kit for your device or customize it according to your needs. | ||||
| FOR FURUKAWA | ||||
| HB 10G | HB 15G | HB 20G | HB 30G | HB 40G |
| FOR DAEKKO | ||||
| DKO-165B | DKO-175A2/B/C | DKO-185A/B/C | DKO-190A/B | DKO-195A/B |
| DKO-200A/B | DKO-210A/B | DKO-215D | DKO-220B | DKO-280A |
| FOR SOOSAN | ||||
| SB20 | SB30 | SB40 | SB50 | SB60 |
| SB81 | SB100 | SB121 | SB131 | SB151 |
| FOR EDDIE | ||||
| EDT800A | EDT2000F/A | EDT3200 | EDT3500F | EDT4500S/P |
| EDT6000 | EDT8000F/P | EDT9000F | ||
| FOR BEILITE | ||||
| BLTB-155 | BLTB-165 | BLTB-165F | BLTB-175L | BLTB-190D |
| BLTB-190G | BLTB-195D | BLTB-195S | BLTB-200 | |
| FOR OUTPACE | ||||
| OT1550H | OT1650 | OT1750 | OT1950 | OT2000 |
| FOR HYUNDAI | ||||
| HEV100 | HEV150 | HEV200 | HDB100 | HDB140 |
| There are also brands and models such as NEUSON,VONE,MSB,GONGBING,etc | ||||
