ROI Rotary Seal
ROI rotary seal (swivel seals) make by PU(Polyurethane）is a type of sealing component specifically designed for rotary motion applications.
It provides effective sealing performance and prevents leakage in rotating shafts or spindles.
- Description
- Technical Information
- Specifications
- Recommended Products
Description

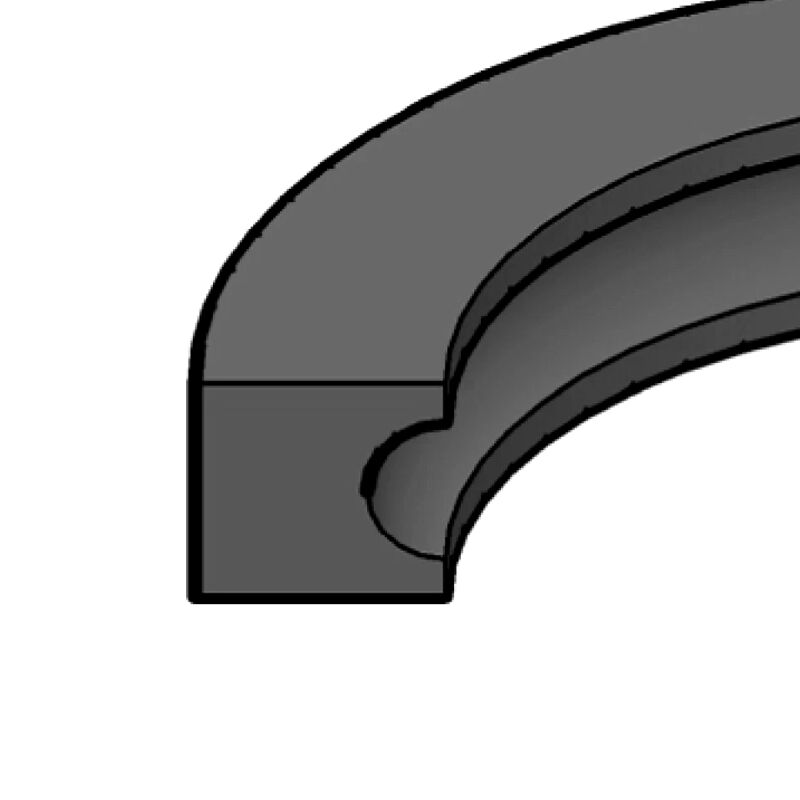

Structural Design:
ROI has same properties with SPN. Applied to high pressure and high sliding speed conditions.
Designed for rotary motion applications，Provides reliable sealing performance in high-speed rotations.
Summary of Advantages:
- Can withstand a wide range of operating temperatures and pressures
- Excellent resistance to wear and abrasion
- Low friction coefficient
- Long service life
Typically made from polyurethane, alternative materials can be provided upon request to suit your specific needs.
Technical Information
Technical Parameters:
|
Pressure |
28MPa |
|
Material |
PU |
|
Temperature(°C) |
-60℃~130℃ |
Specifications
|

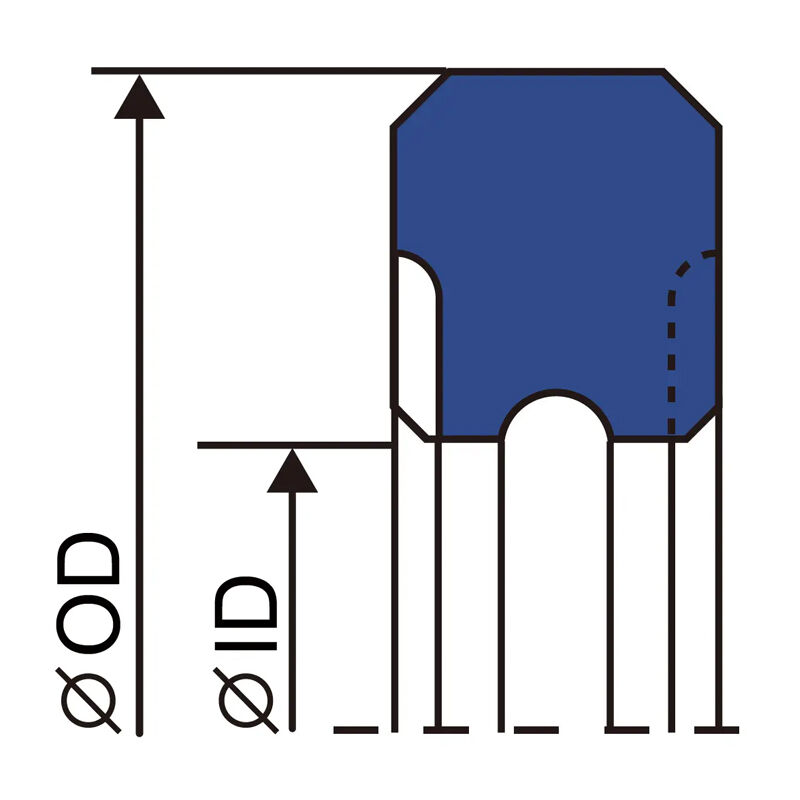

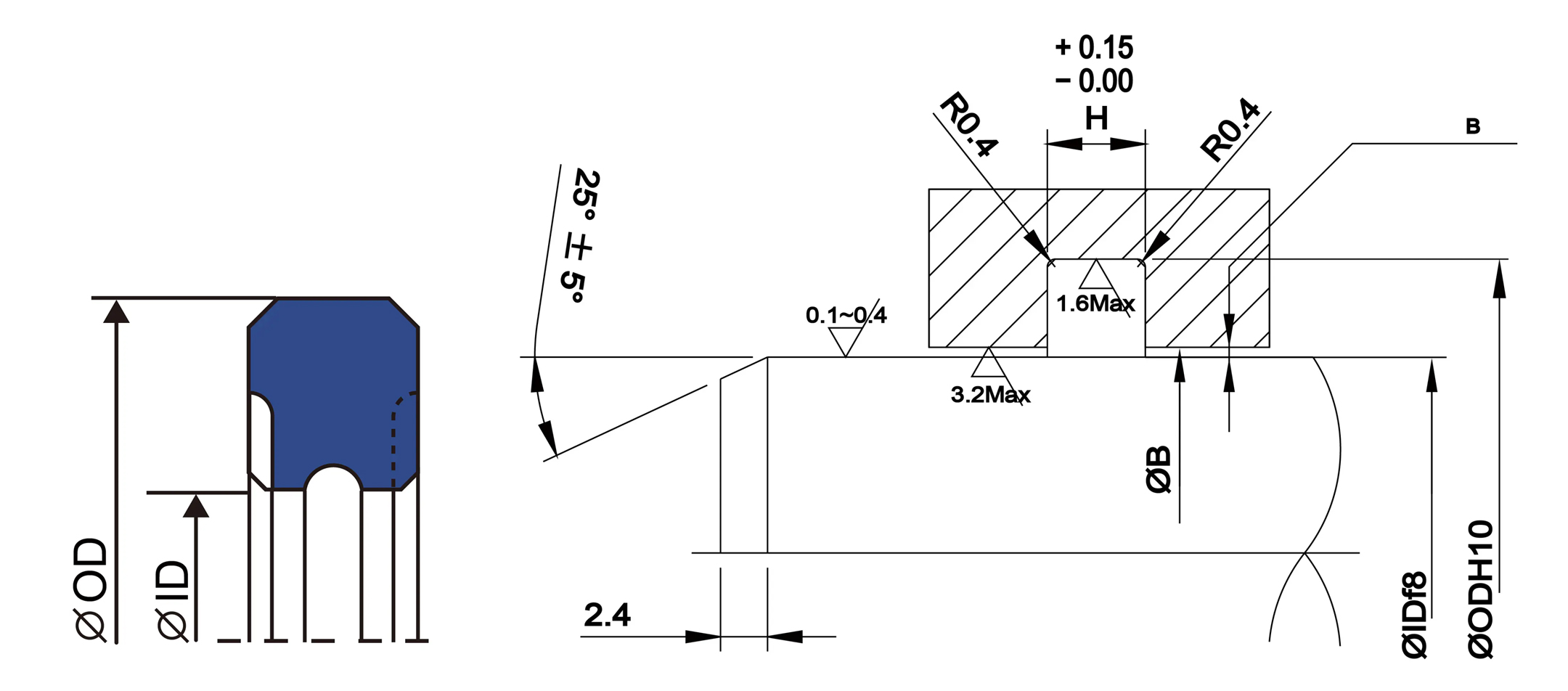

Designation |
Outer Diameter |
Inner Diameter |
Housing groove width |
|
ROI-60 |
60 |
50 |
4.8 |
|
ROI-65 |
65 |
55 |
4.8 |
|
ROI-70 |
70 |
60 |
4.8 |
|
ROI-80 |
80 |
70 |
4.8 |
|
ROI-85 |
85 |
75 |
4.8 |
|
ROI-90 |
90 |
80 |
4.8 |
|
ROI-100 |
100 |
90 |
4.8 |
|
ROI-105 |
105 |
95 |
4.8 |
|
ROI-110 |
110 |
100 |
4.8 |
|
ROI-115 |
115 |
105 |
4.8 |
|
ROI-120 |
120 |
110 |
4.8 |
|
ROI-125 |
125 |
115 |
4.8 |
|
ROI-130 |
130 |
120 |
4.8 |
|
ROI-150 |
150 |
140 |
4.8 |
