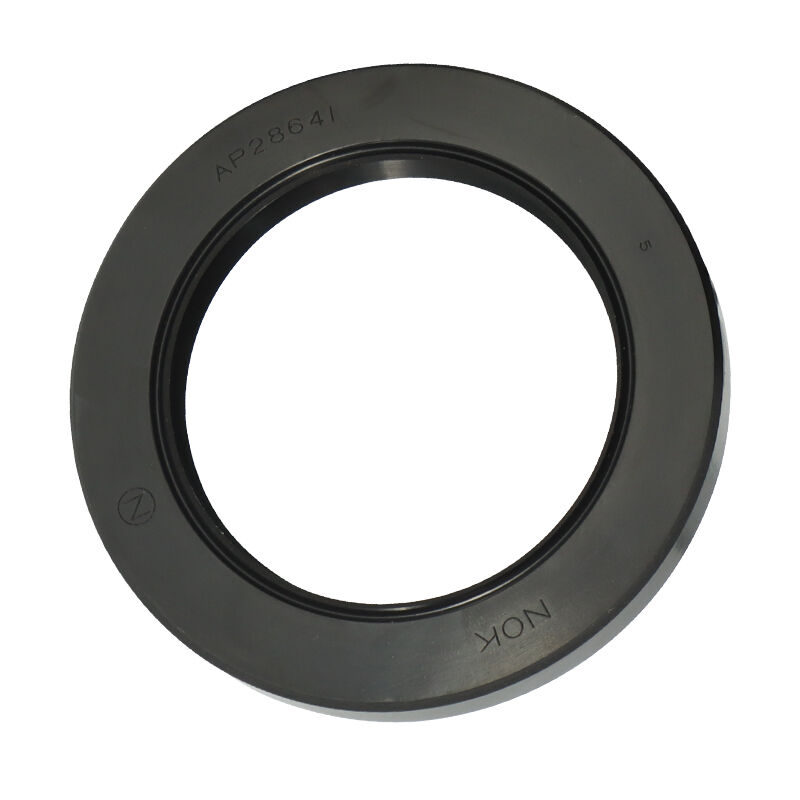

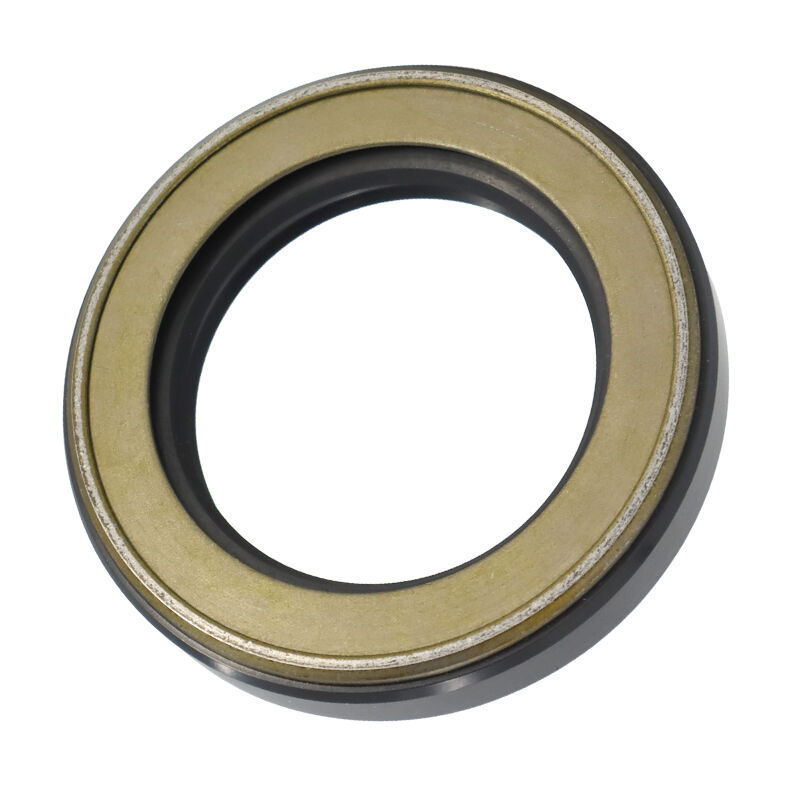

TCN Type Oil Seal
TCN Oil seal is an internal skeleton external rubber type oil seal that works by isolating the parts of the drive that require lubrication from the output parts to avoid oil leakage.
Rubber can be made of NBR or FKM.
- Description
- Technical Information
- Recommended Products
Description

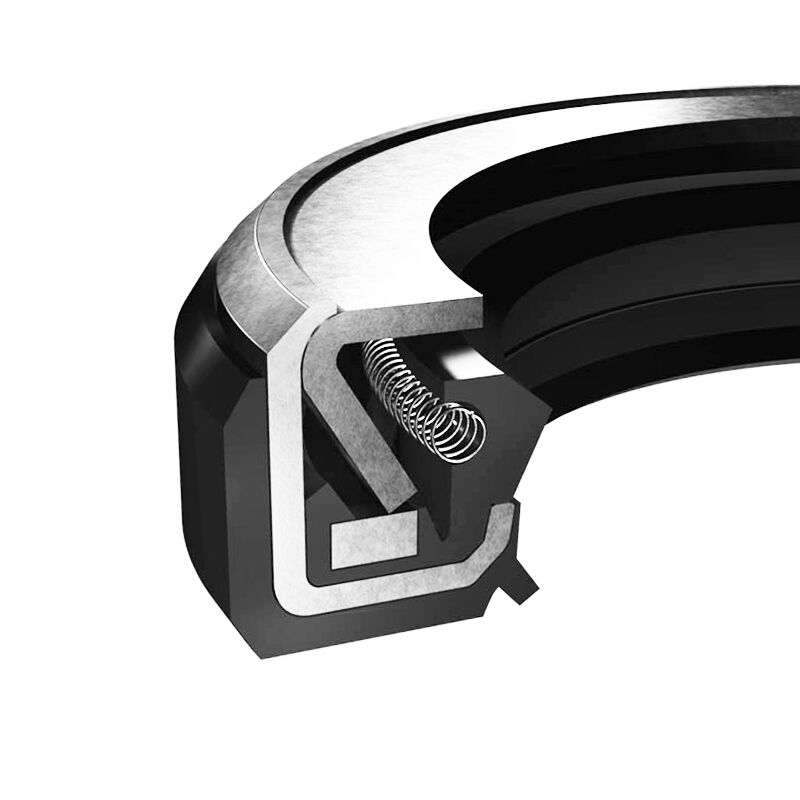

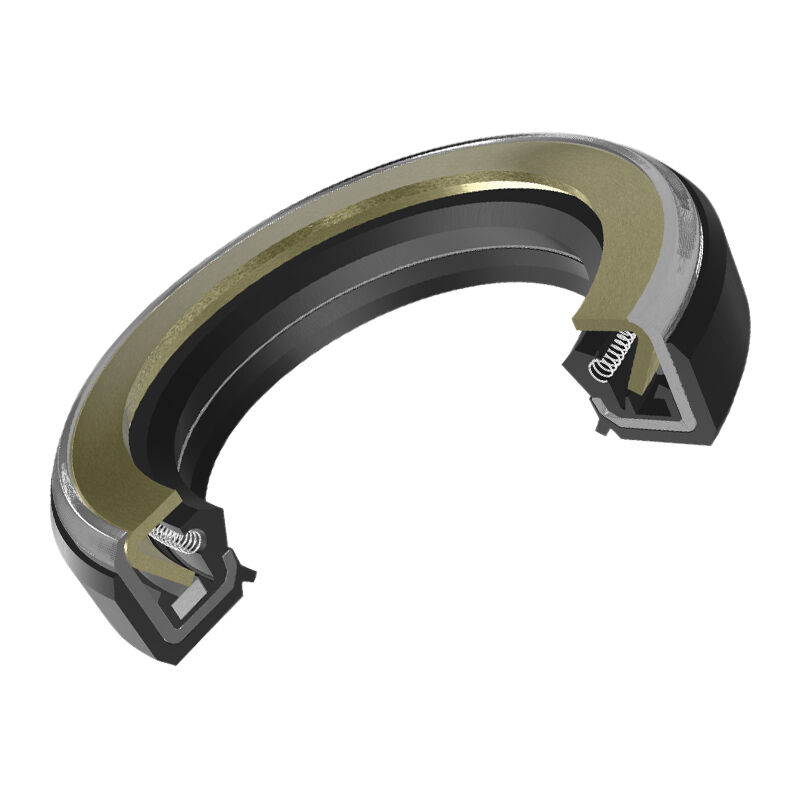

Structural Design:
The TCN oil seal is a specially designed rotary shaft seal capable of handling pressurized applications.
Unlike standard shaft seals, the TCN features a pressure-loadable sealing lip, which ensures reliable performance even under elevated system pressures.
Its elastomer-coated outer diameter and short spring-loaded sealing lip guarantee secure sealing within the housing, while the additional protective lip offers effective defense against external contamination such as dust, dirt, and moisture.
Summary of Advantages:
- Designed with auxiliary cage to prevent lip distortion during operation
- Stable under temperature and pressure fluctuations
- Low Friction
- Compatibility with the media to be seals
Typically made from polyurethane, alternative materials can be provided upon request to suit your specific needs.
Technical Information

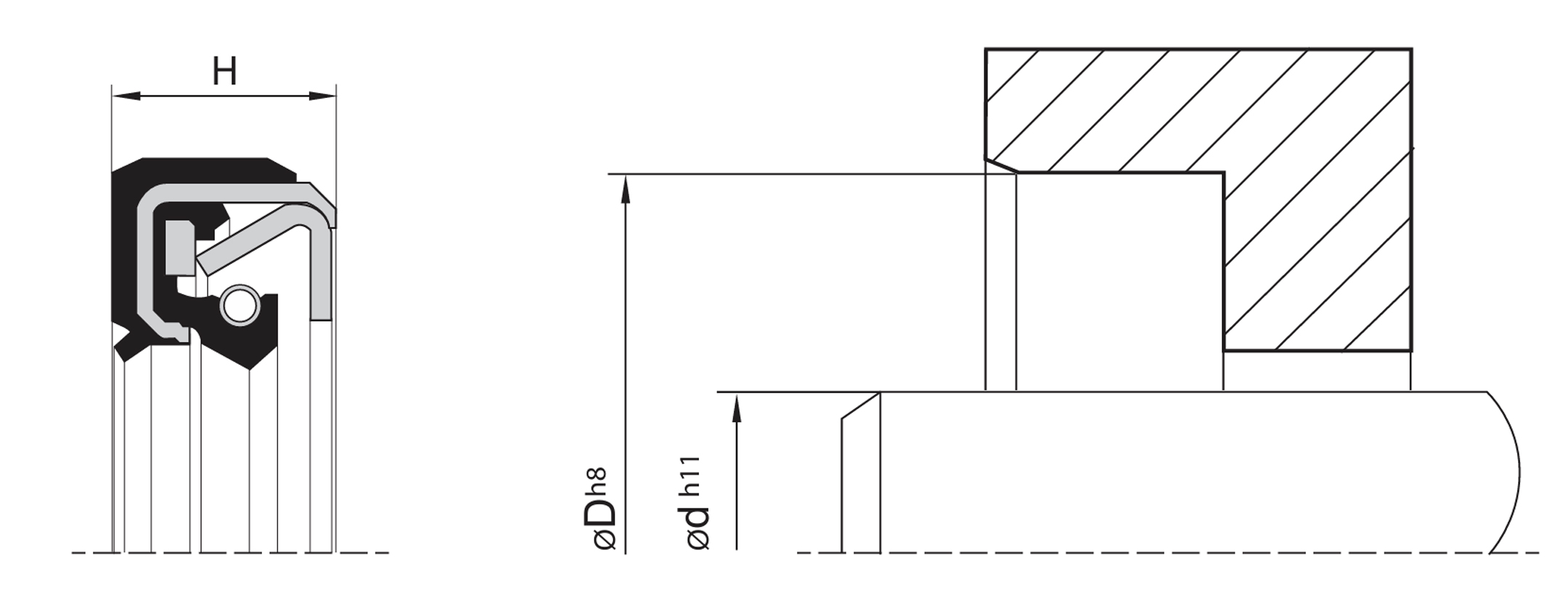

Technical Parameters:
|
Pressure |
10Bar |
|
Material |
NBR/FKM + Metal |
|
Temperature(°C) |
-35℃~100℃ |
