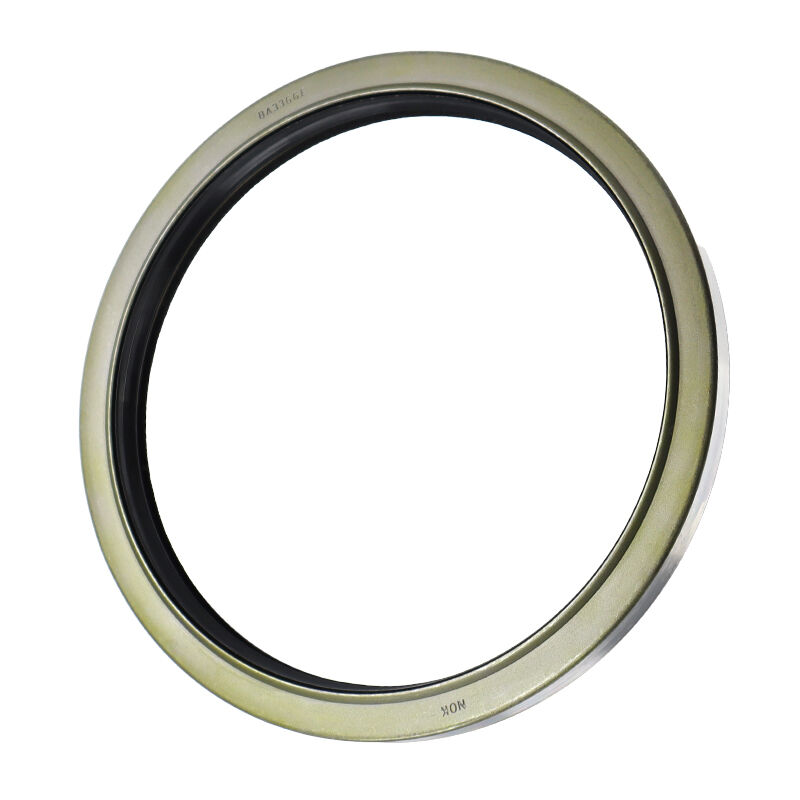

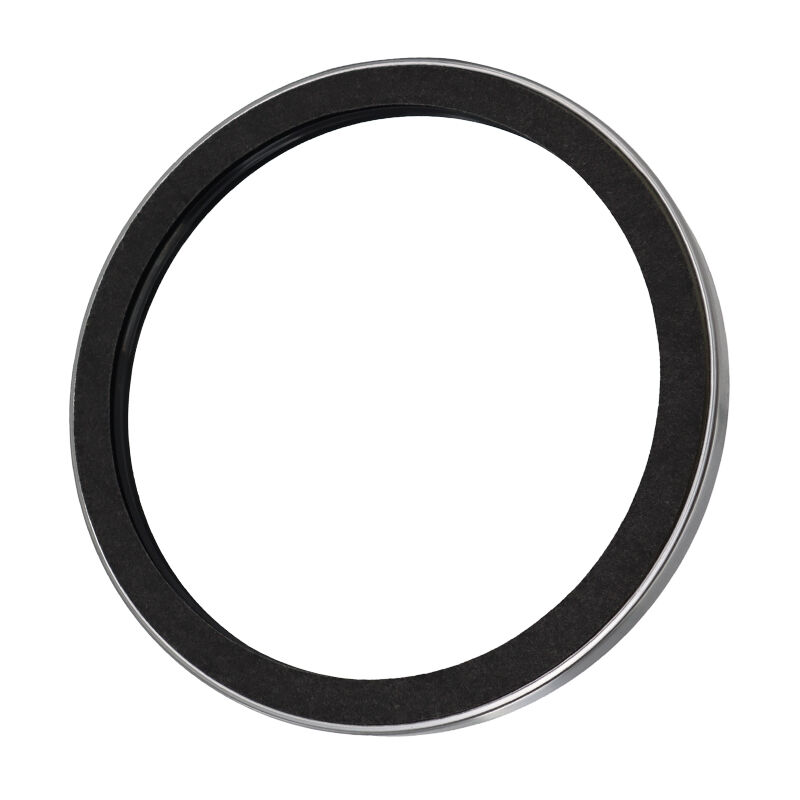

VB Type Oil Seal
The VB is a zero-pressure radial oil seal with no garter spring.
The precision ground metal OD is made with a lead-in chamfer for ease of installation.
- Description
- Technical Information
- Specifications
- Recommended Products
Description

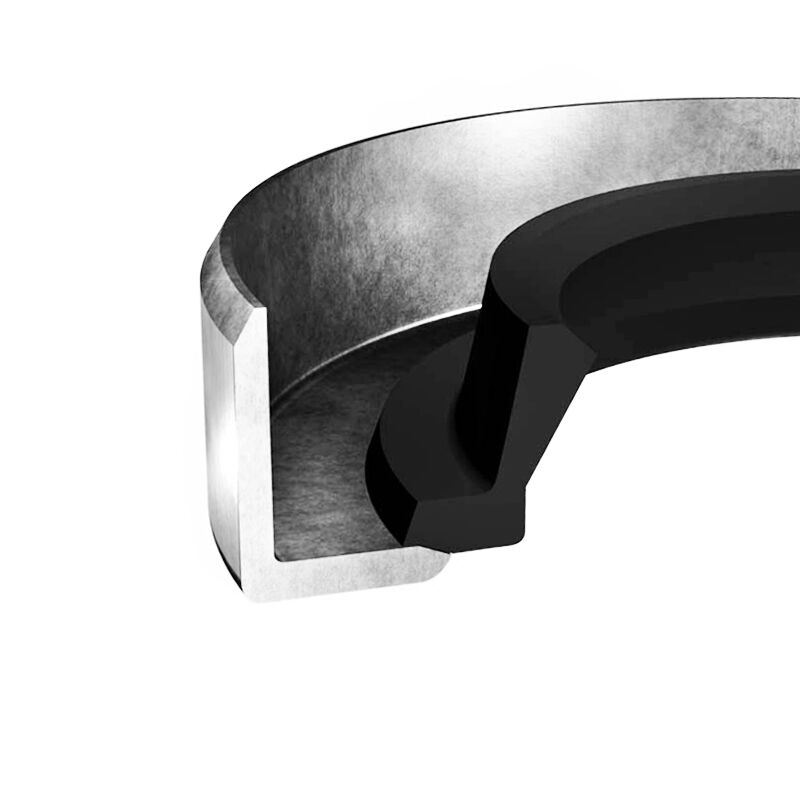

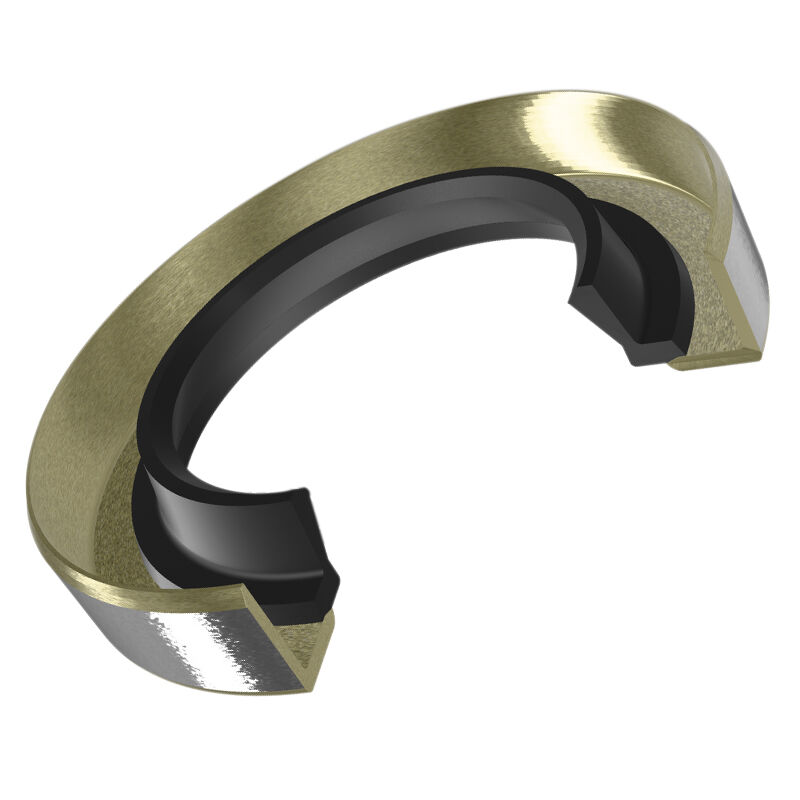

Structural Design:
Experience excellence with the Oil Seal VB.
Crafted with a non-resilient lip design, it's the perfect choice for specialized secondary sealing tasks, like grease seals.
This design ensures exceptional sealing performance and minimizes leaks in these unique applications.
It’s very low friction design not only guarantees efficiency but also reduces wear and tear.
The Oil Seal VB boasts a compact design, making it an ideal fit for installations with limited space. It ensures a firm and precise fit within the housing, enhancing sealing efficiency.
Summary of Advantages:
- Good radial stiffness
- Good fitting stability
- Low radial force provides & low break-out torque
- Suitable for scraper application
Typically made from polyurethane, alternative materials can be provided upon request to suit your specific needs.
Technical Information
Technical Parameters:
|
Material |
NBR + Metal |
|
Temperature(°C) |
-35℃~100℃ |

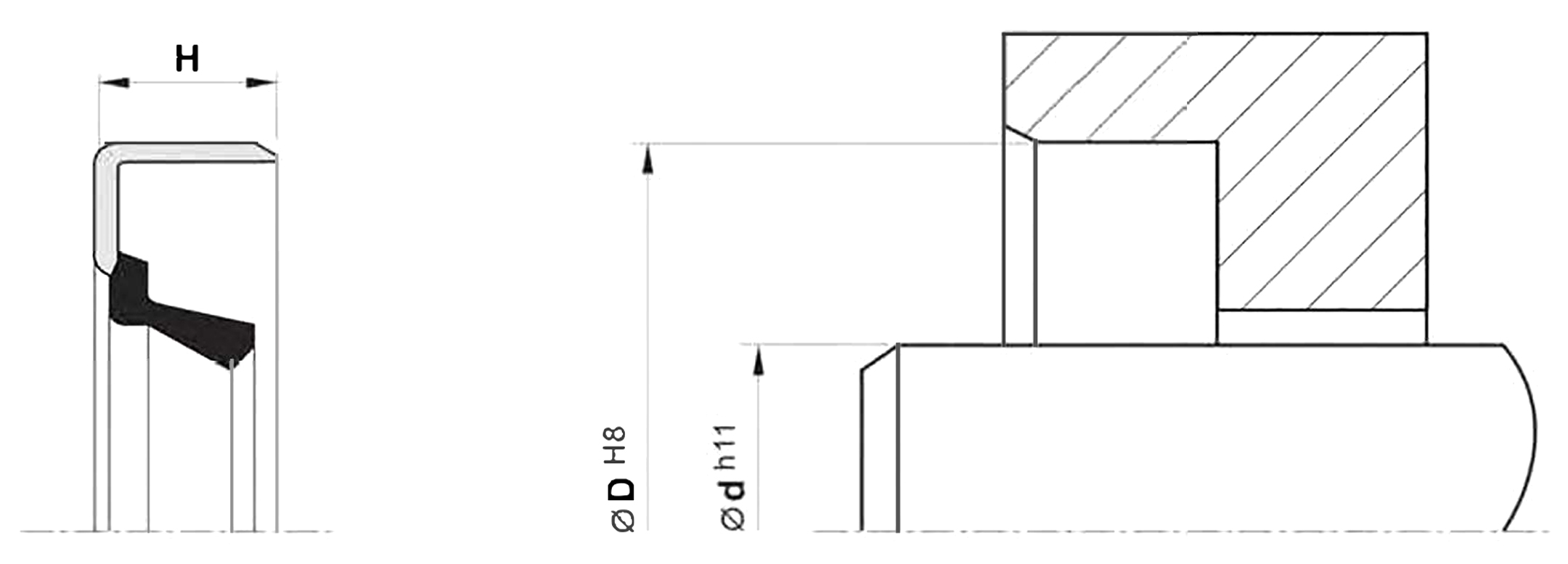

Specifications
|
Designation |
Outer Diameter |
Inner Diameter |
Housing groove width |
|
VB-75 |
75 |
60 |
4 |
|
VB-95 |
95 |
80 |
6 |
|
VB-85 |
85 |
70 |
8 |
|
VB-100 |
100 |
80 |
5 |
|
VB-140 |
140 |
125 |
7 |
|
VB-135 |
135 |
115 |
6 |
|
VB-135 |
135 |
115 |
7 |
|
VB-135 |
135 |
120 |
7 |
|
VB-100 |
100 |
85 |
6 |
|
VB-134 |
134 |
120 |
7 |
|
VB-140 |
140 |
125 |
7 |
|
VB-114 |
114 |
100 |
8 |
|
VB-135 |
135 |
120 |
9 |
|
VB-136 |
136 |
120 |
10 |
