ZP Compact Piston Seal
3 piece Rubber Fabric Double Acting Piston Seal with Acetal Anti Extrusion Rings for a Split Piston.
- Description
- Technical Information
- Specifications
- Recommended Products
Description
Structural Design:

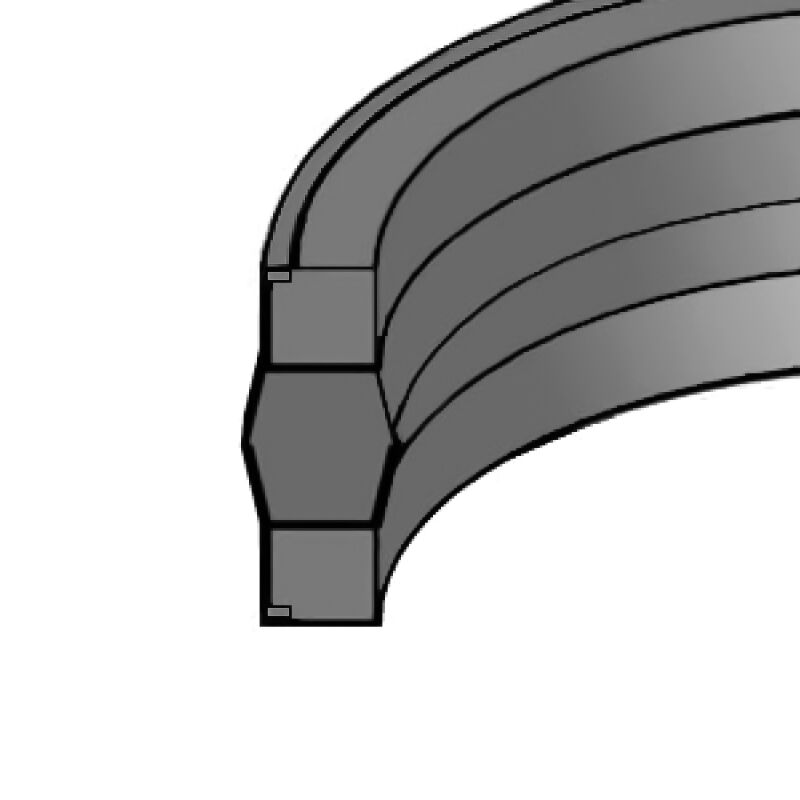

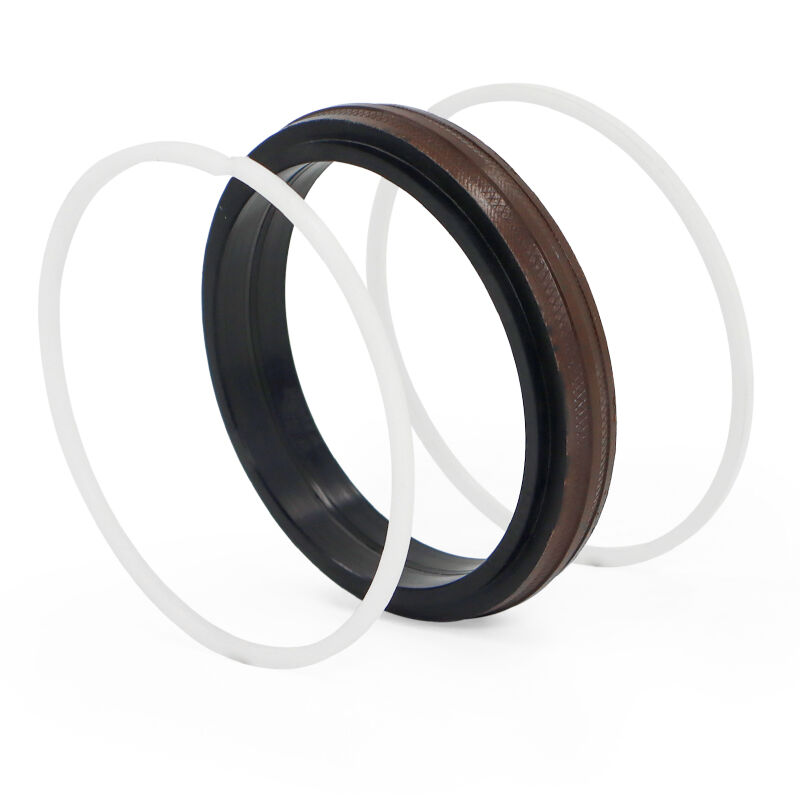

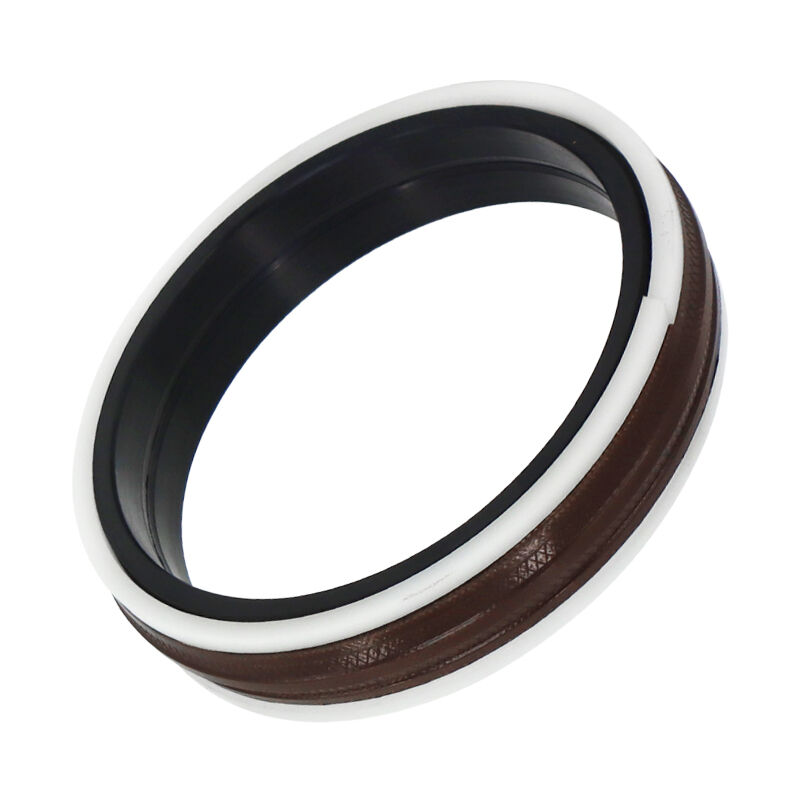

ZP is a three pieces compact set consisting of one fabric impregnated sealing ring and two thermoplastic guide rings.
The face seal has superior abrasion resistance and performs well at rough surfaces.
The hydraulic piston seal's job is to prevent pressurized fluid or other media from bypassing the piston when system pressure drives the piston down the cylinder during a pressure cycle.
Summary of Advantages:
- High performance at water-based fluids
- Long service life
- High Abrasion Resistance
- Advanced dynamic and static sealing
Typically made from polyurethane, alternative materials can be provided upon request to suit your specific needs.
Technical Information
Technical Parameters:
|
Pressure |
400bar |
|
Speed |
0.5m/s |
|
Material |
NBR + POM + FABRIC NBR |
Specifications
|

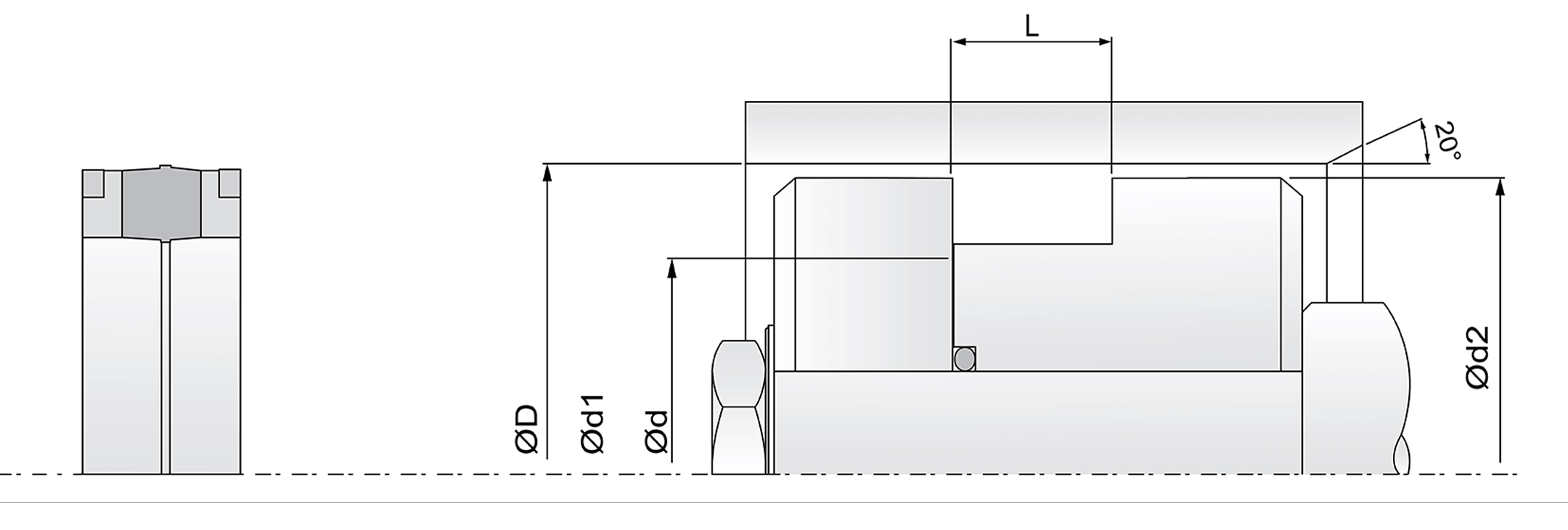

Designation |
Outer Diameter |
Inner Diameter |
Housing groove width |
|
ZP-110 |
110 |
95 |
16 |
|
ZP-110 |
110 |
95 |
18 |
|
ZP-115 |
115 |
97 |
22.5 |
|
ZP-120 |
120 |
105 |
16 |
|
ZP-125 |
125 |
110 |
15.8 |
|
ZP-130 |
130 |
115 |
16 |
|
ZP-140 |
140 |
125 |
16 |
|
ZP-150 |
150 |
133 |
20 |
|
ZP-160 |
160 |
145 |
16 |
|
ZP-165 |
165 |
150 |
16 |
|
ZP-180 |
180 |
163 |
20 |
|
ZP-190 |
190 |
170 |
16 |
|
ZP-200 |
200 |
180 |
16 |
|
ZP-205 |
205 |
185 |
16 |
|
ZP-210 |
210 |
190 |
16 |
|
ZP-220 |
220 |
195 |
22 |
|
ZP-220 |
220 |
200 |
20 |
|
ZP-224 |
224 |
204 |
20.5 |
|
ZP-230 |
230 |
210 |
16 |
|
ZP-245 |
245 |
220 |
25 |
|
ZP-260 |
260 |
235 |
25 |
|
ZP-270 |
270 |
245 |
24 |
|
ZP-280 |
280 |
255 |
25 |
|
ZP-290 |
290 |
265 |
27 |
|
ZP-300 |
300 |
275 |
25 |
|
ZP-310 |
310 |
285 |
25 |
|
ZP-320 |
320 |
295 |
25 |
