D-ring NBR Material
D-Rings are rings in the shape of a D that offer an alternative sealing solution to O-rings for use in rotary applications.
They provide the same sealing properties as O-rings and can, in addition, be used in applications that experience high and low pressures, operating in a wide range of temperatures.
- Description
- Technical Information
- Specifications
- Recommended Products
Description

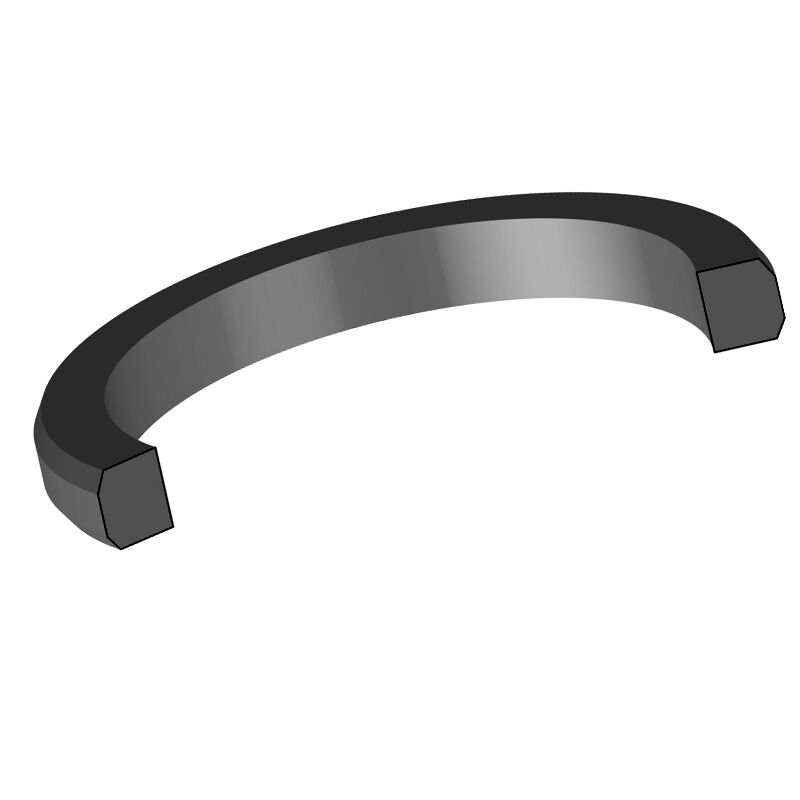

Structural Design:

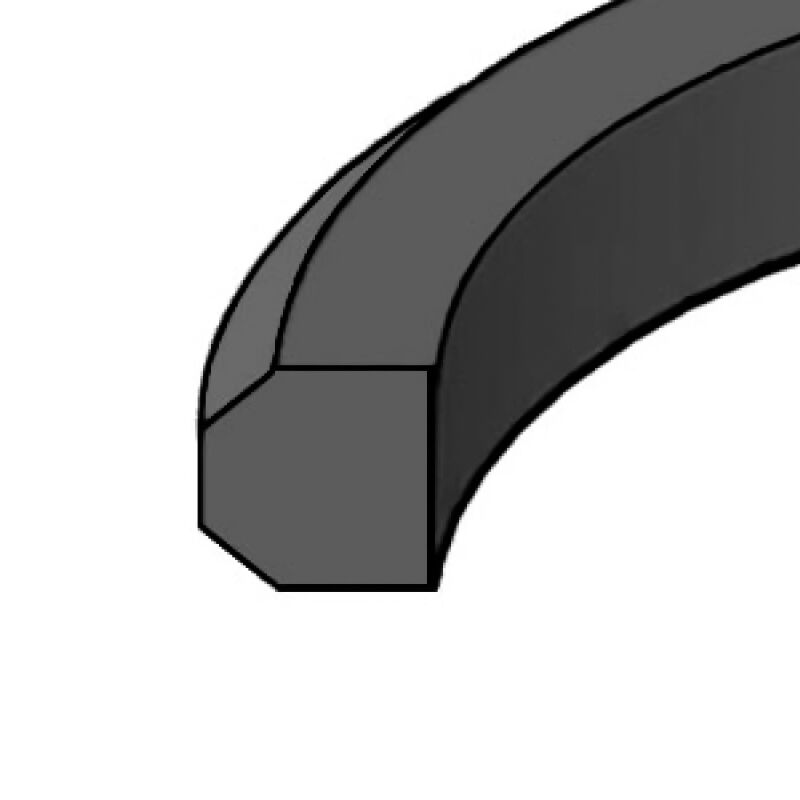

The D-ring has a flat interior and a circular exterior, forming a secure connection point.
D-Rings are engineered to withstand significant loads and forces, ensuring reliable fastening.
Made from durable nitrile, d-rings provide exceptional resistance to wear, tear, and abrasion.
D-Rings’ flat base improves stability, reducing twisting, rolling, and spiral failure.
D-Rings’ resistance to wear and stress ensures longevity and reliability.
Because d-rings maintain a tight seal even in variable or fluctuating pressure applications.
The distinctive shape of d-rings confers numerous benefits in terms of strength and functionality, establishing them as a favored option in diverse industrial sectors.
Summary of Advantages:
- Due to their shape, d-rings provide a wider range of applications
- Suitable for heavier loads and harsh environments
- Longer Operating Life
- Compatibility with existing O-ring grooves
- Very suitable for applications that require frequent adjustment or disassembly
Typically made from polyurethane, alternative materials can be provided upon request to suit your specific needs.
Technical Information
Technical Parameters:
|
Hardness |
70-90 Shore A |
|
Material |
NBR |
|
Temperature(°C) |
-50℃~11℃ |
|
Pressure |
Up To 400 Bar |
Specifications
|

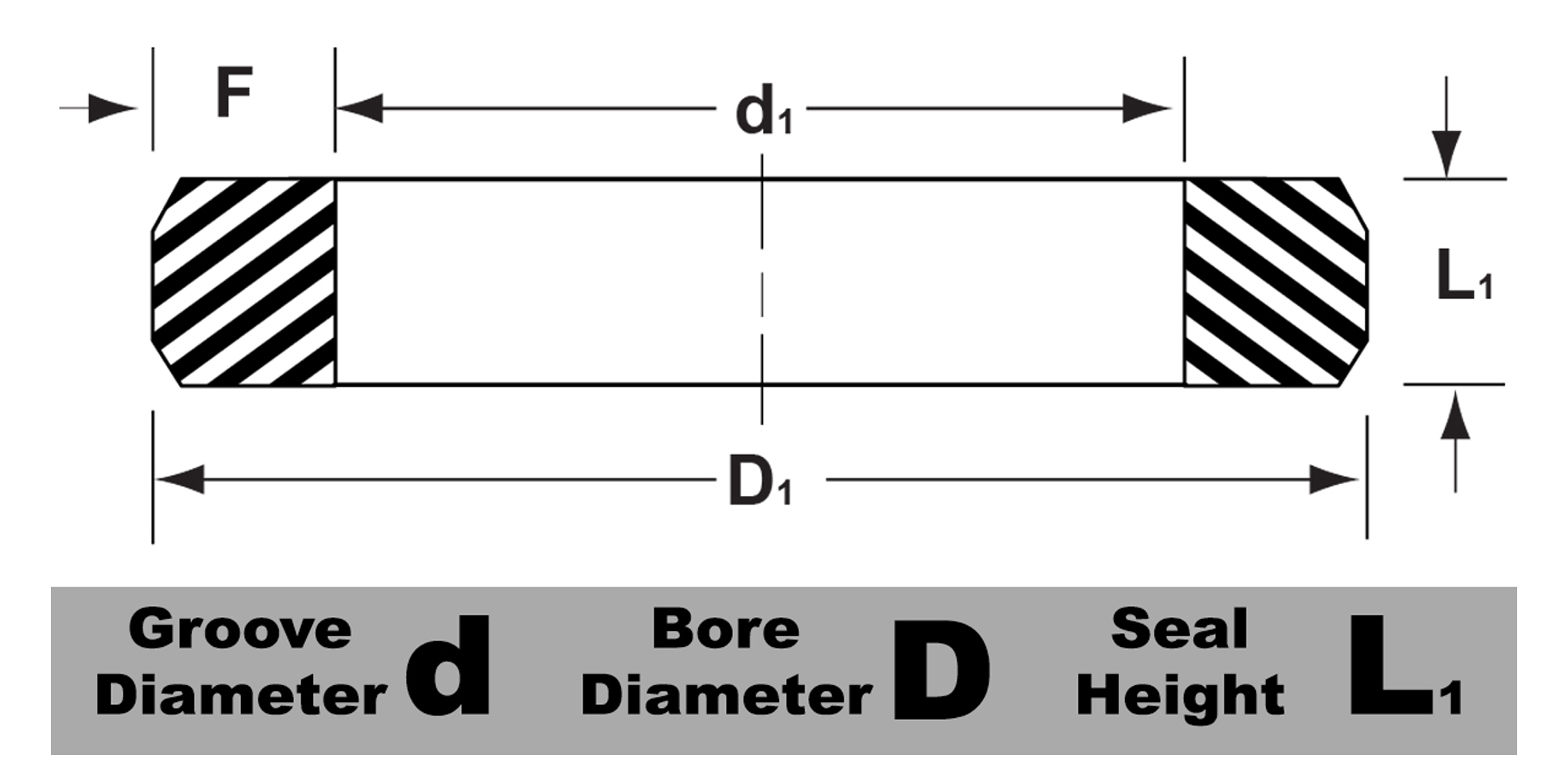

Designation |
D1 |
d1 |
L1 |
|
1P-3700 |
25 |
18 |
5 |
|
1P-3702 |
32.3 |
25 |
5 |
|

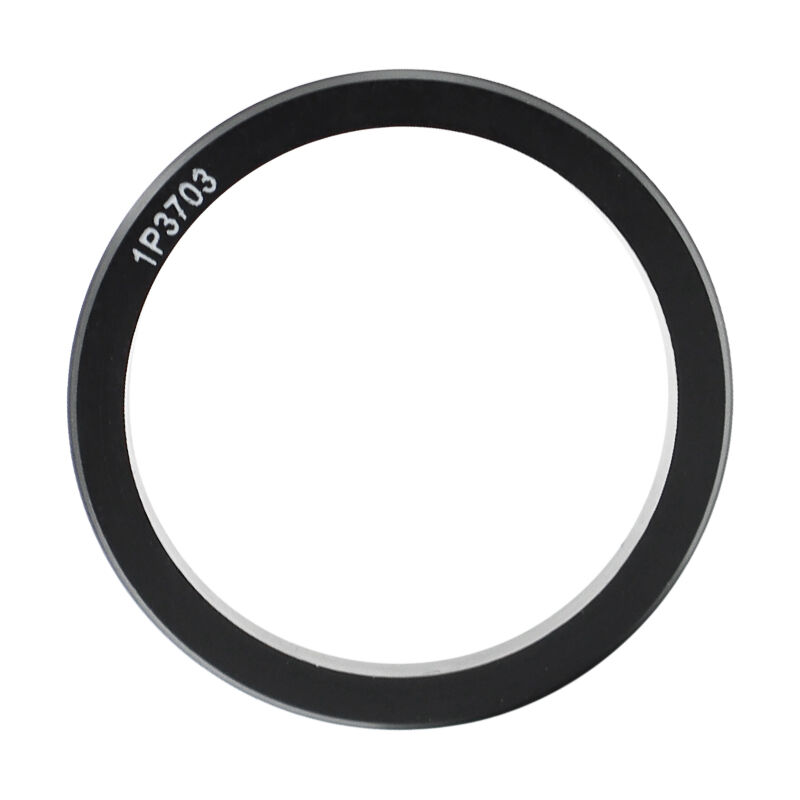

1P-3703 |
38.7 |
31.7 |
5 |
|
1P-3704 |
44.5 |
37.7 |
5 |
|
1P-3705 |
50 |
44 |
5 |
|
1P-3706 |
57 |
50 |
5 |
|
1P-3707 |
60 |
53 |
5 |
|
1P-3708 |
63.6 |
57 |
5 |
|
1P-3709 |
70 |
64 |
5 |
