U2200-93A CPU：TDI-PTMEG Seal Turning raw material
Cast polyurethane elastomer (CPU) is a new type of polymer synthetic material that lies between rubber and plastic.
Due to the excellent wear resistance of CPUs (the best among elastomers), also known as thermosetting elastomers, they become liquid at room temperature and solid after processing.
- Description
- Technical Information
- Specifications
- Recommended Products
Description
Structural Design:
Polyurethanes have gained a substantial importance in modern seal technology.
They hold a dominant market share in the sector of rod seals and piston seals.
Our Polyurethane semi-finished products stand out due to their highest material quality. Unlike the thermoplastic processed products, the cast semi-finished products of Polyurethane have the greatest degree of freedom to develop their physical properties during polymerization.
Any kind of negative influence during the polymerization process by heating up and plastic deformation is avoided with our technology.
Our Polyurethane semi-finished products particularly stand out due to their high-quality material and show a prolonged service life in many applications.
Main application:
Static and dynamic seals (standard and special), wipers, O-rings, back-up rings, flange seals, rotary seals, low friction and wear, high extrusion resistance, compatibility with water, excellent low temp characteristics.
Technical Information
Technical Parameters:
|
Size |
Max=Φ12000 mm |
|
Material |
TPU: U2200-93A CPU：TDI-PTMEG |
|
Temperature(°C) |
-40℃~100℃ |

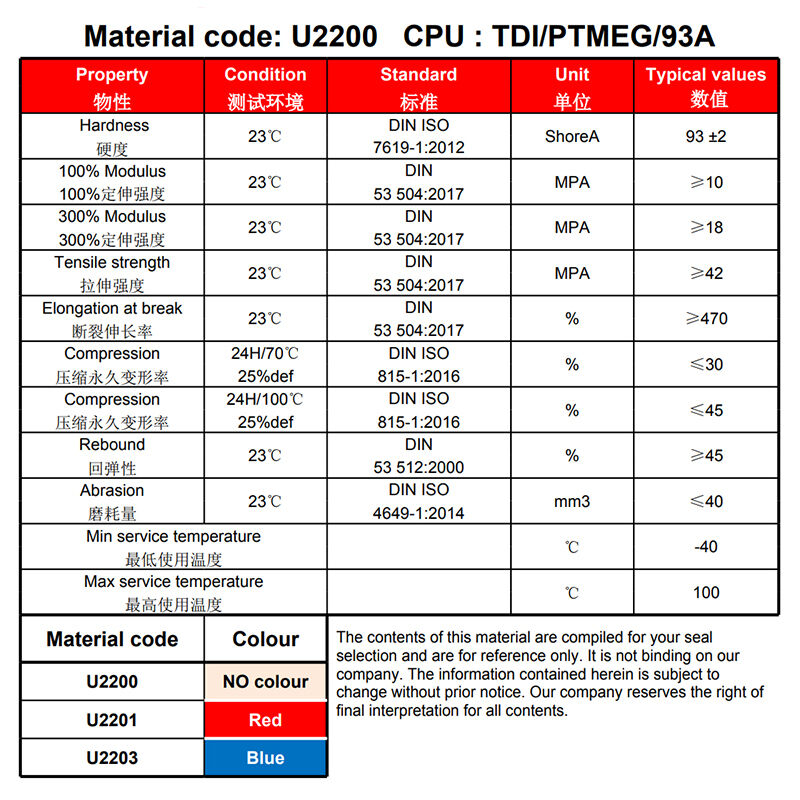

Specifications
|
Material code |
Color |
|
U2200 |
- |
|
U2201 |
Red |
|
U2203 |
Blue |
