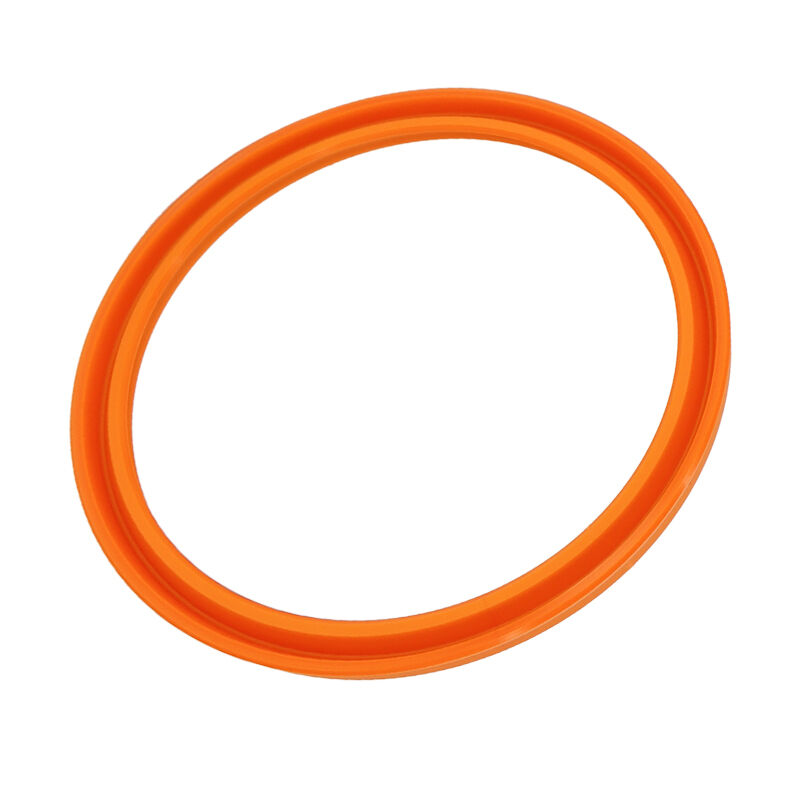

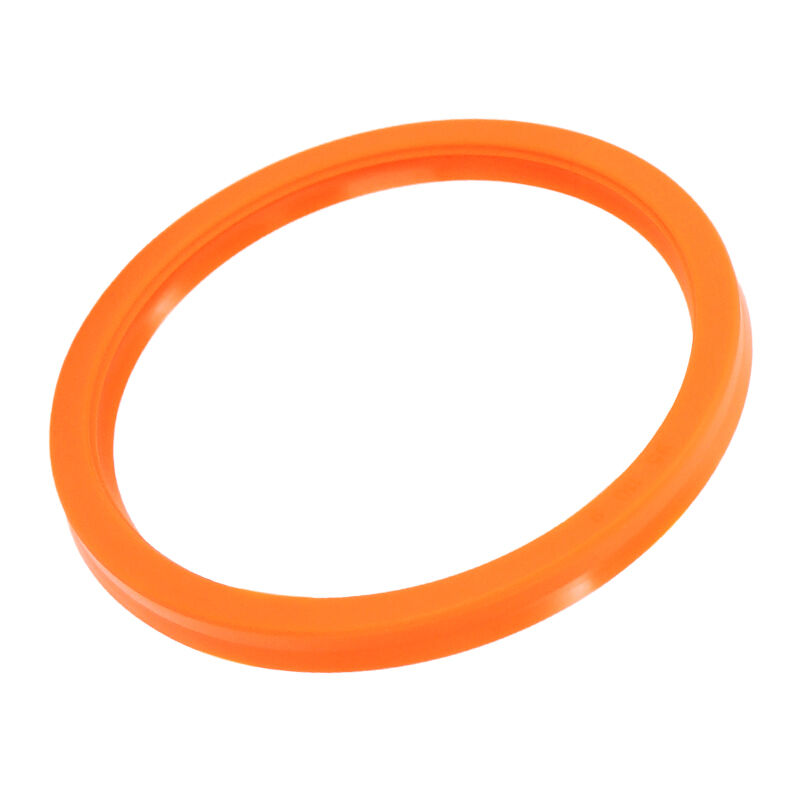

Double-lip U-cup PU Rod seal SZ
MPR rod seal is a double-lip seal with tight interference fit on the outer diameter. The additional lubricant between the two lips greatly prevents friction and wear.
Provides additional wiping performance and system safety.
- Description
- Technical Information
- Specifications
- Recommended Products
Description

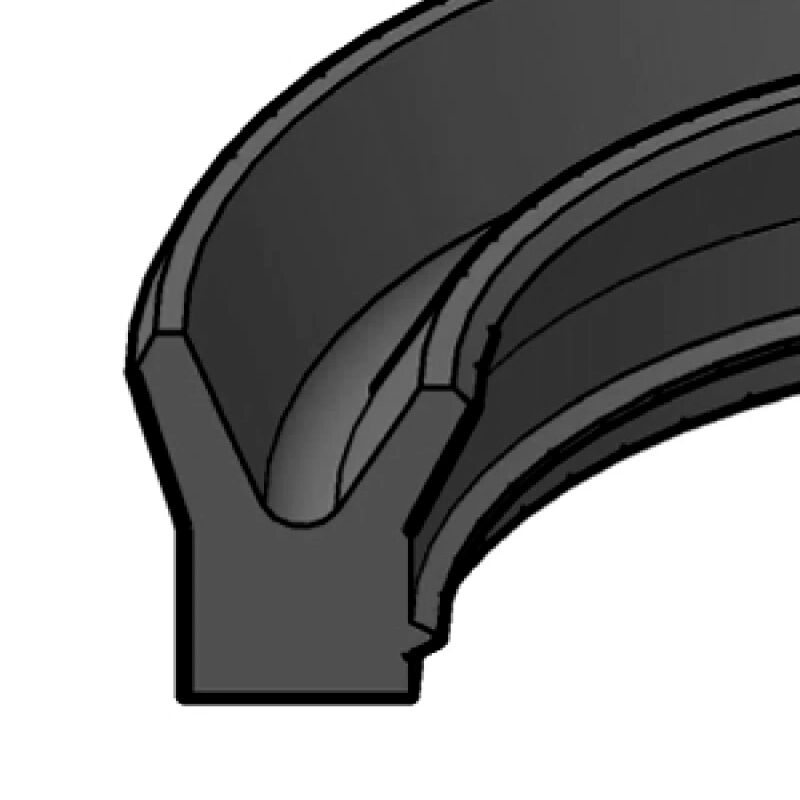

Structural Design:
The double lip U-cup is designed specifically for heavy-duty mobile and fixed equipment, capable of controlling leaks to an absolute minimum level.
Its unique geometric structure has strong resistance to lateral loads and is insensitive to pressure peaks.
It can significantly reduce or completely eliminate leaks under harsh working conditions, while reducing wear and dry running phenomena.

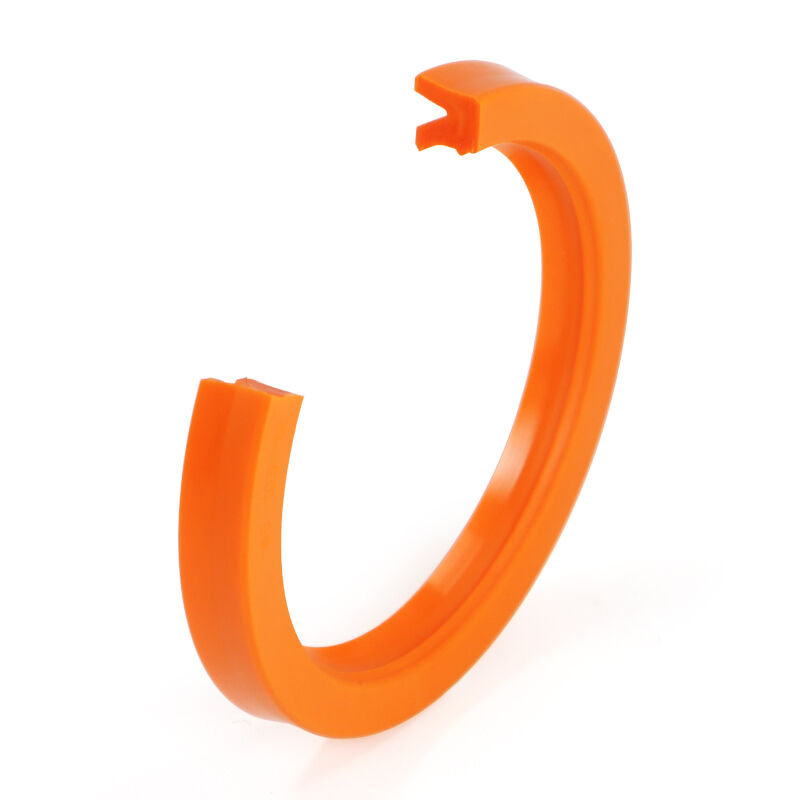

The cavity formed by the secondary lip shape can accumulate rod lubricant, which can maintain extremely low frictional resistance even during low-speed operation.
Summary of Advantages:
- Secondary sealing lip provides extra protection against the ingress of dirt particles.
- Insensibility against shock loads and pressure peaks
- Perfect sealing performance under low pressure
- Easy Installation
Typically made from polyurethane, alternative materials can be provided upon request to suit your specific needs.
Technical Information
Technical Parameters:
|
Pressure |
0.5m/s |
|
Speed |
Up to 500bar（7200psi） |
|
Material |
TPU/U9310 |
|
Temperature(°C) |
-40℃~150℃ |

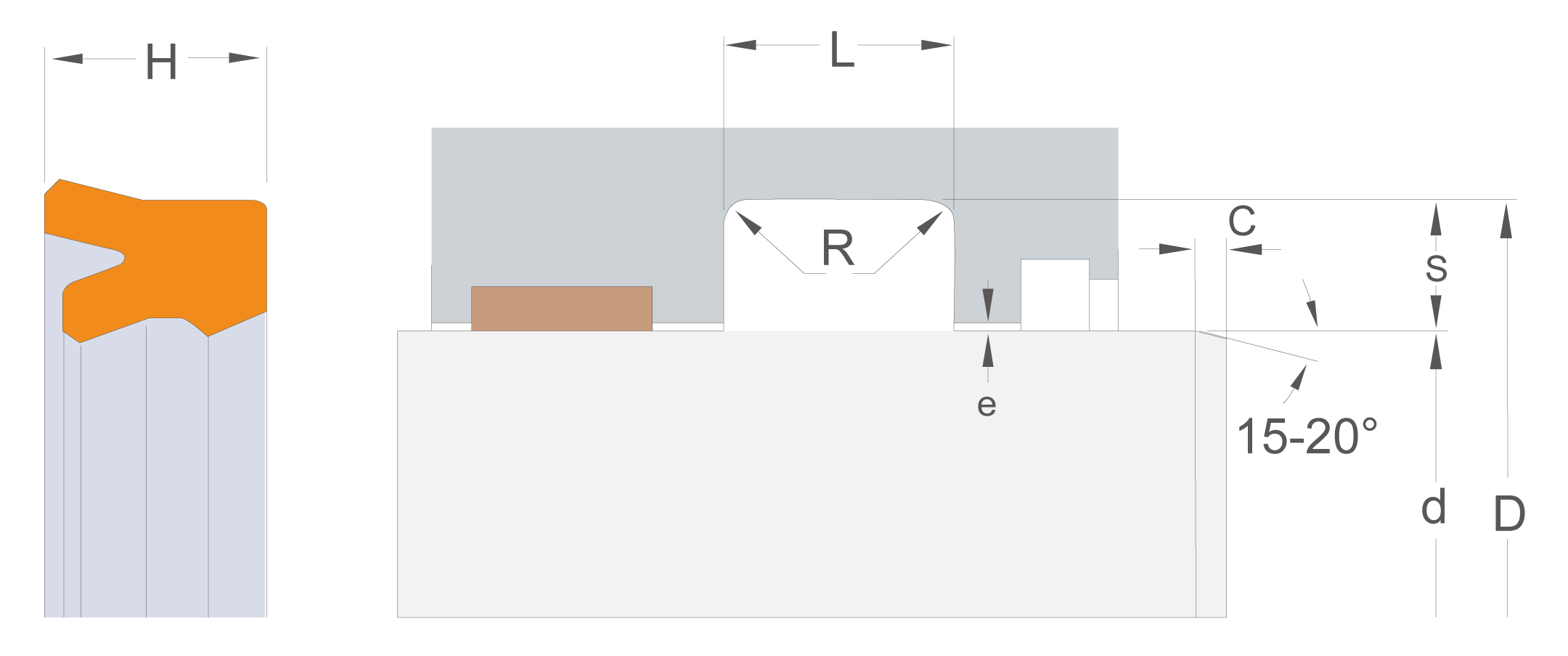

Specifications
|
Designation |
Outer Diameter |
Inner Diameter |
Housing groove width |
|
SZ-40*50*6 |
40 |
50 |
6 |
|
SZ-45*55*6 |
40 |
55 |
6 |
|
SZ-50*60*6 |
50 |
60 |
6 |
|
SZ-55*65*6 |
55 |
65 |
6 |
|
SZ-60*70*6 |
60 |
70 |
6 |
|
SZ-65*75*6 |
65 |
75 |
6 |
|
SZ-70*80*6 |
70 |
80 |
6 |
|
SZ-75*85*6 |
75 |
85 |
6 |
|
SZ-80*90*6 |
80 |
90 |
6 |
|
SZ-35*45*7 |
35 |
45 |
7 |
|
SZ-40*50*7 |
40 |
50 |
7 |
|
SZ-45*55*7 |
45 |
55 |
7 |
|
SZ-50*60*7 |
50 |
60 |
7 |
|
SZ-40*50*8 |
40 |
50 |
8 |
|
SZ-45*55*8 |
45 |
55 |
8 |
|
SZ-50*60*8 |
50 |
60 |
5 |
|
SZ-55*65*8 |
55 |
65 |
8 |
|
SZ-60*70*8 |
60 |
70 |
8 |
|
SZ-65*75*8 |
65 |
75 |
8 |
|
SZ-70*80*8 |
70 |
80 |
8 |
|
SZ-75*85*8 |
70 |
85 |
8 |
|
SZ-80*90*8 |
80 |
90 |
8 |
|
SZ-45*60*9 |
45 |
65 |
9 |
|
SZ-50*65*9 |
50 |
65 |
9 |
|
SZ-55*70*9 |
55 |
70 |
9 |
|
SZ-60*75*9 |
60 |
75 |
9 |
|
SZ-65*80*9 |
65 |
80 |
9 |
|
SZ-70*85*9 |
70 |
85 |
9 |
|
SZ-75*90*9 |
75 |
90 |
9 |
|
SZ-80*95*9 |
80 |
95 |
9 |
|
SZ-85*100*9 |
85 |
100 |
9 |
|
SZ-90*105*9 |
90 |
105 |
9 |
|
SZ-95*110*9 |
95 |
110 |
9 |
|
SZ-100*115*9 |
100 |
115 |
9 |
|
SZ-105*120*9 |
105 |
120 |
9 |
|
SZ-110*125*9 |
110 |
125 |
9 |
|
SZ-115*130*9 |
115 |
130 |
9 |
|
SZ-120*135*9 |
120 |
135 |
9 |
|
SZ-125*140*9 |
125 |
140 |
9 |
|
SZ-130*145*9 |
130 |
145 |
9 |
|
SZ-45*60*10 |
45 |
60 |
10 |
|
SZ-50*63*10 |
50 |
63 |
10 |
|
SZ-55*68*10 |
55 |
68 |
10 |
|
SZ-60*70*10 |
60 |
70 |
10 |
|
SZ-60*73*10 |
60 |
73 |
10 |
|
SZ-65*78*10 |
65 |
78 |
10 |
|
SZ-65*80*10 |
65 |
80 |
10 |
|
SZ-70*83*10 |
70 |
83 |
10 |
|
SZ-70*85*10 |
70 |
85 |
10 |
|
SZ-75*88*10 |
75 |
88 |
10 |
|
SZ-80*93*10 |
80 |
93 |
10 |
|
SZ-80*95*10 |
80 |
95 |
10 |
|
SZ-85*100*10 |
85 |
100 |
10 |
|
SZ-90*105*10 |
90 |
105 |
10 |
|
SZ-95*110*10 |
95 |
110 |
10 |
|
SZ-100*115*10 |
100 |
115 |
10 |
|
SZ-105*120*10 |
105 |
120 |
10 |
|
SZ-110*125*10 |
110 |
125 |
10 |
|
SZ-110*130*10 |
110 |
130 |
10 |
|
SZ-115*130*10 |
115 |
130 |
10 |
|
SZ-120*140*10 |
120 |
140 |
10 |
|
SZ-45*65*12 |
45 |
65 |
12 |
|
SZ-55*70*12 |
55 |
70 |
12 |
|
SZ-55*71*12 |
55 |
71 |
12 |
|
SZ-55*75*12 |
55 |
75 |
12 |
|
SZ-60*80*12 |
60 |
80 |
12 |
|
SZ-65*80*12 |
65 |
80 |
12 |
|
SZ-65*85*12 |
65 |
85 |
12 |
|
SZ-70*90*12 |
70 |
90 |
12 |
|
SZ-75*95*12 |
75 |
95 |
12 |
|
SZ-80*100*12 |
80 |
100 |
12 |
|
SZ-85*105*12 |
85 |
105 |
12 |
|
SZ-90*110*12 |
90 |
110 |
12 |
|
SZ-95*115*12 |
95 |
115 |
12 |
|
SZ-100*115*12 |
100 |
115 |
12 |
|
SZ-100*120*12 |
100 |
120 |
12 |
|
SZ-105*125*12 |
105 |
125 |
12 |
|
SZ-110*130*12 |
110 |
130 |
12 |
|
SZ-115*135*12 |
115 |
135 |
12 |
|
SZ-120*140*12 |
120 |
140 |
12 |
|
SZ-130*150*12 |
130 |
150 |
12 |
|
SZ-95*115*15 |
95 |
115 |
15 |
|
SZ-100*120*15 |
100 |
120 |
15 |
|
SZ-105*125*15 |
105 |
125 |
15 |
|
SZ-110*130*15 |
110 |
130 |
15 |
|
SZ-115*135*15 |
115 |
135 |
15 |
|
SZ-120*140*15 |
120 |
140 |
15 |
