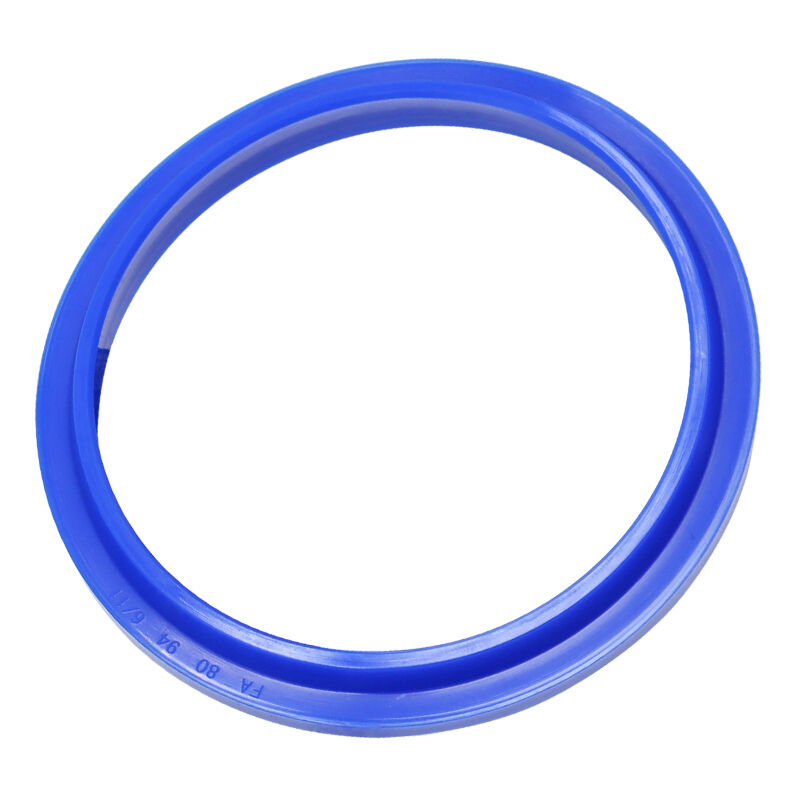

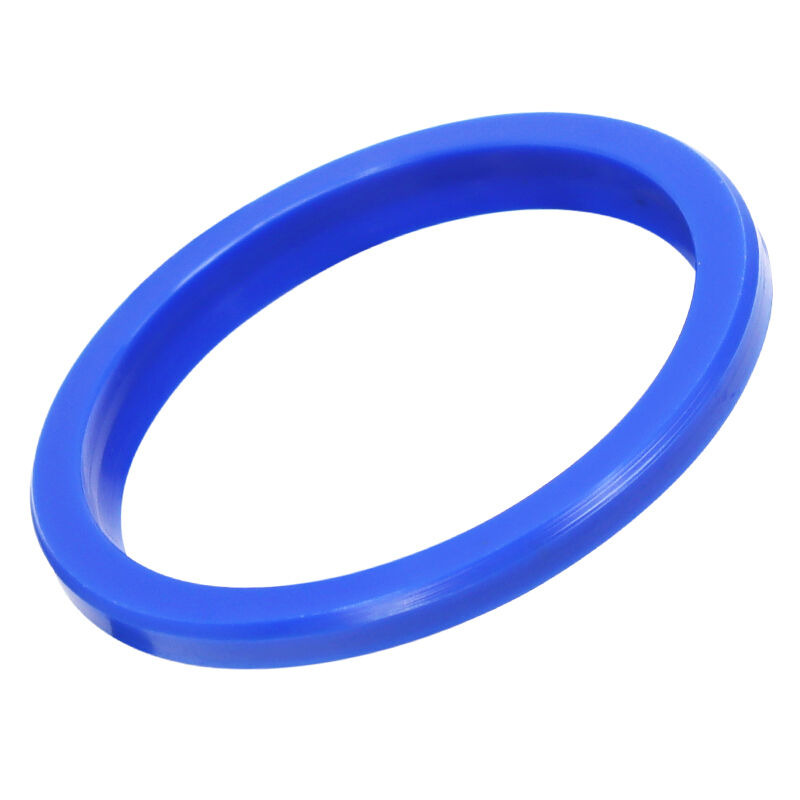

FA Wiper Seal PU
FA elastomer or polyurethane wipers are single acting wipers designed to prevent foreign particles in the cylinder.
This low-profile seal is an industry standard for effective contaminant exclusion.
- Description
- Technical Information
- Specifications
- Recommended Products
Description

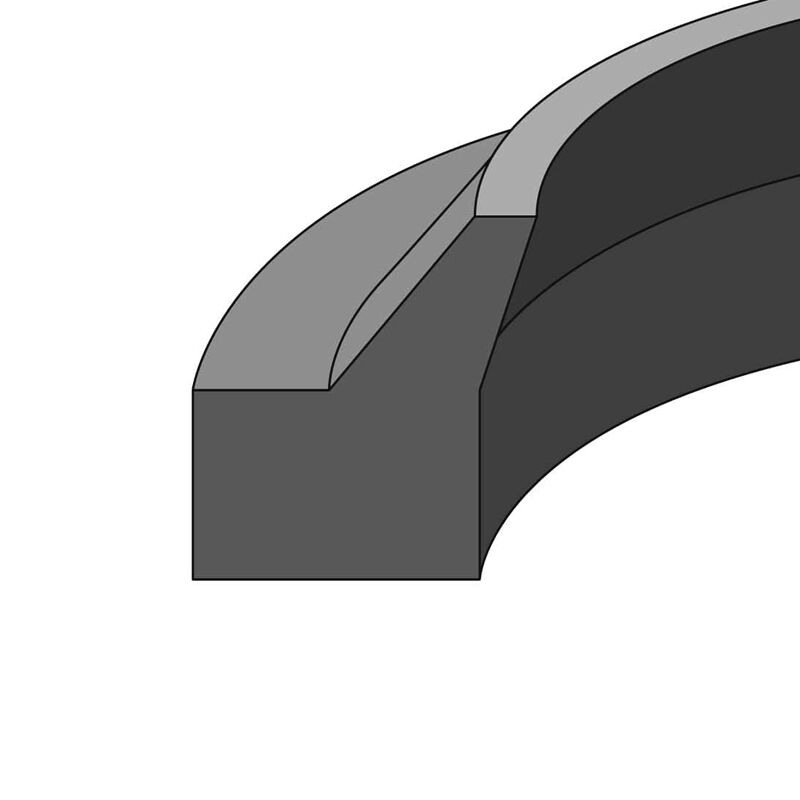

Structural Design:

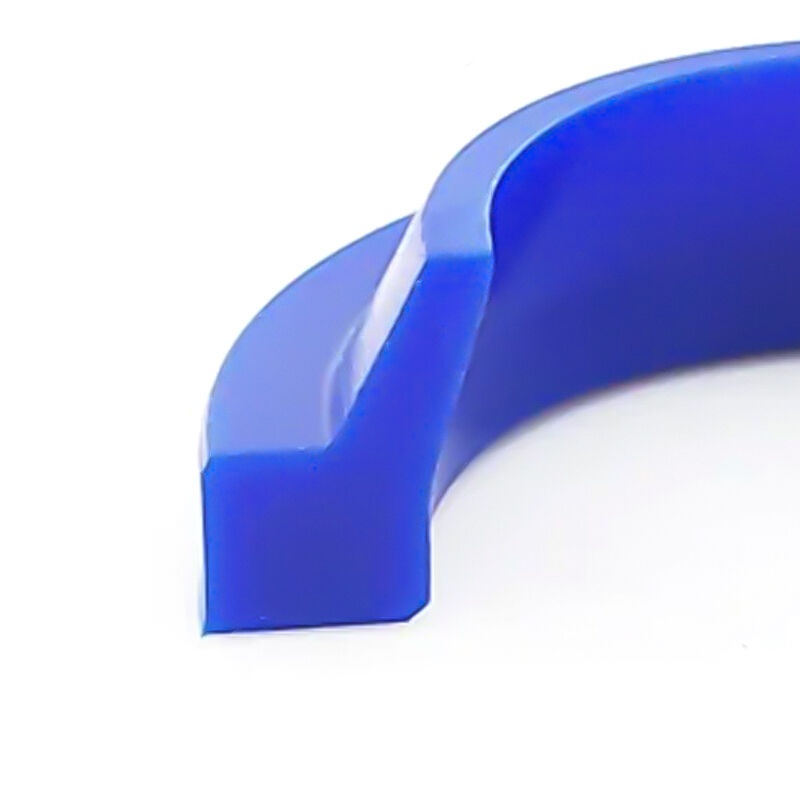

FA wiper has been designed so that the proportions of the wiping lip ensure it maintains contact with the rod surface to remove heavily deposited mud.
The diameter contacts the housing and has a sealing lip to prevent moisture from entering the groove.
Made of advanced polyurethane molding, it is very suitable for lightweight to medium-sized hydraulic applications that require durability and elasticity.
Summary of Advantages:
- Outside lip for effective sealing
- Pressure relief ribs
- Effective scraping lip
- No hydrodynamic pressure
Typically made from polyurethane, alternative materials can be provided upon request to suit your specific needs.
Technical Information
Technical Parameters:
|
Speed |
0.5m/s |
|
Material |
PU |
|
Temperature(°C) |
-35℃~95℃ |

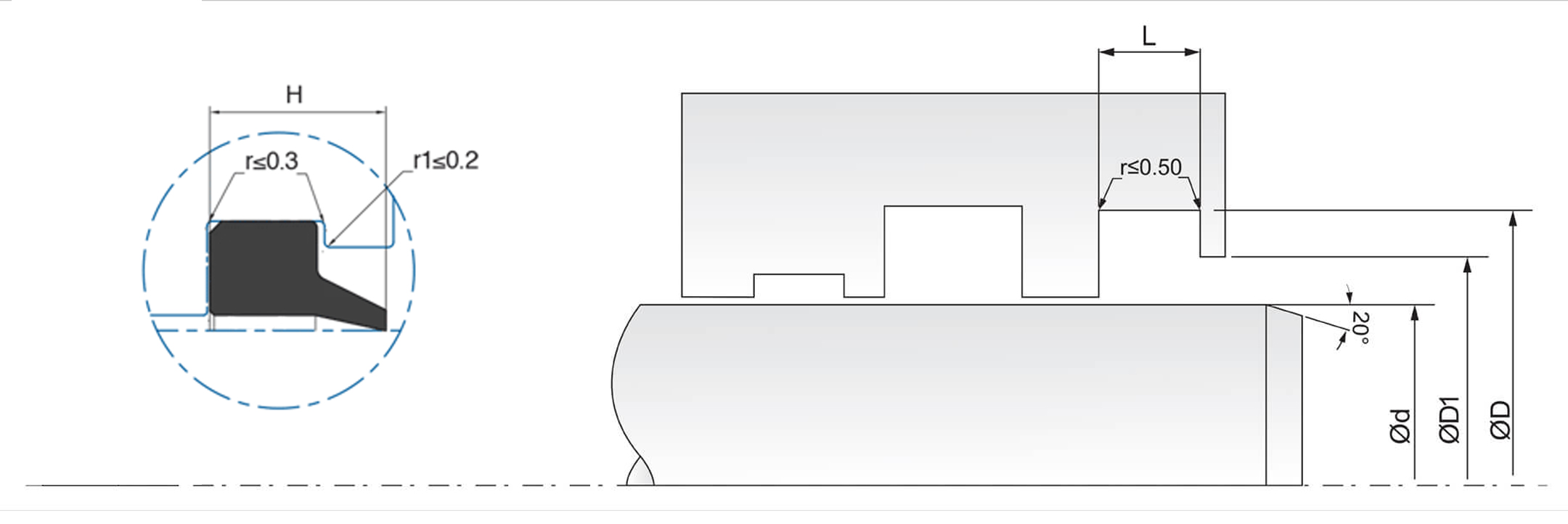

Specifications
|
Designation |
Outer Diameter |
Inner Diameter |
Housing groove width |
|
FA-8*18*4/7 |
8 |
18 |
4/7 |
|
FA-10*20*4/7 |
10 |
20 |
4/7 |
|
FA-12*22*4/7 |
12 |
22 |
4/7 |
|
FA-14*24*4/7 |
14 |
24 |
4/7 |
|
FA-16*26*4/7 |
16 |
26 |
4/7 |
|
FA-18*28*4/7 |
18 |
28 |
4/7 |
|
FA-20*32*5/9 |
20 |
32 |
5/9 |
|
FA-22*34*5/9 |
22 |
34 |
5/9 |
|
FA-25*37*5/9 |
25 |
37 |
5/9 |
|
FA-28*40*5/9 |
28 |
40 |
5/9 |
|
FA-30*42*5/9 |
30 |
42 |
5/9 |
|
FA-32*44*5/9 |
32 |
44 |
5/9 |
|
FA-35*47*5/9 |
35 |
47 |
5/9 |
|
FA-36*48*5/9 |
36 |
48 |
5/9 |
|
FA-38*50*5/9 |
38 |
50 |
5/9 |
|
FA-40*52*5/9 |
40 |
52 |
5/9 |
|
FA-45*57*5/9 |
45 |
57 |
5/9 |
|
FA-50*62*5/9 |
50 |
62 |
5/9 |
|
FA-52*64*5/9 |
52 |
64 |
5/9 |
|
FA-55*69*6/11 |
55 |
69 |
6/11 |
|
FA-60*74*6/11 |
60 |
74 |
6/11 |
|
FA-63*77*6/11 |
63 |
77 |
6/11 |
|
FA-65*79*6/11 |
65 |
79 |
6/11 |
|
FA-70*84*6/11 |
70 |
84 |
6/11 |
|
FA-75*89*6/11 |
75 |
89 |
6/11 |
|
FA-80*94*6/11 |
80 |
94 |
6/11 |
|
FA-87*101*6/11 |
87 |
101 |
6/11 |
|
FA-85*99*6/11 |
85 |
99 |
6/11 |
|
FA-90*104*6/11 |
90 |
104 |
6/11 |
|
FA-92*106*6/11 |
92 |
106 |
6/11 |
|
FA-95*109*6/11 |
95 |
109 |
6/11 |
|
FA-100*114*6/11 |
100 |
114 |
6/11 |
|
FA-105*121*7/13 |
105 |
121 |
7/13 |
|
FA-110*136*7/13 |
110 |
136 |
7/13 |
|
FA-115*131*7/13 |
115 |
131 |
7/13 |
|
FA-120*136*7/13 |
120 |
136 |
7/13 |
|
FA-125*141*7/13 |
125 |
141 |
7/13 |
|
FA-130*146*7/13 |
130 |
146 |
7/13 |
|
FA-135*151*7/13 |
135 |
151 |
7/13 |
|
FA-140*160*7/13 |
140 |
160 |
7/13 |
|
FA-145*165*7/13 |
145 |
165 |
7/13 |
|
FA-150*170*7/13 |
150 |
170 |
7/13 |
|
FA-155*175*7/13 |
155 |
175 |
7/13 |
|
FA-160*180*7/13 |
160 |
180 |
7/13 |
|
FA-170*190*7/13 |
170 |
190 |
7/13 |
|
FA-175*195*7/13 |
175 |
195 |
7/13 |
|
FA-180*200*7/13 |
180 |
200 |
7/13 |
|
FA-185*205*7/13 |
185 |
205 |
7/13 |
|
FA-190*210*7/13 |
190 |
210 |
7/13 |
|
FA-195*215*7/13 |
195 |
215 |
7/13 |
|
FA-200*220*7/13 |
200 |
220 |
7/13 |
|
FA-205*225*7/13 |
205 |
225 |
7/13 |
|
FA-210*230*7/13 |
210 |
230 |
7/13 |
|
FA-215*235*7/13 |
215 |
235 |
7/13 |
|
FA-220*240*7/13 |
220 |
240 |
7/13 |
|
FA-225*245*7/13 |
225 |
245 |
7/13 |
|
FA-230*250*7/13 |
130 |
250 |
7/13 |
|
FA-235*255*7/13 |
235 |
255 |
7/13 |
|
FA-240*260*7/13 |
240 |
260 |
7/13 |
|
FA-245*265*7/13 |
245 |
265 |
7/13 |
|
FA-250*270*7/13 |
250 |
270 |
7/13 |
|
FA-255*275*7/13 |
255 |
275 |
7/13 |
|
FA-260*280*7/13 |
260 |
280 |
7/13 |
|
FA-265*285*7/13 |
265 |
285 |
7/13 |
|
FA-270*290*7/13 |
270 |
290 |
7/13 |
|
FA-275*295*7/13 |
275 |
295 |
7/13 |
|
FA-280*300*7/13 |
280 |
300 |
7/13 |
|
FA-285*305*7/13 |
285 |
305 |
7/13 |
|
FA-290*310*7/13 |
290 |
310 |
7/13 |
|
FA-295*315*7/13 |
295 |
315 |
7/13 |
|
FA-300*320*7/13 |
300 |
320 |
7/13 |
